Peavey Digitool 1V

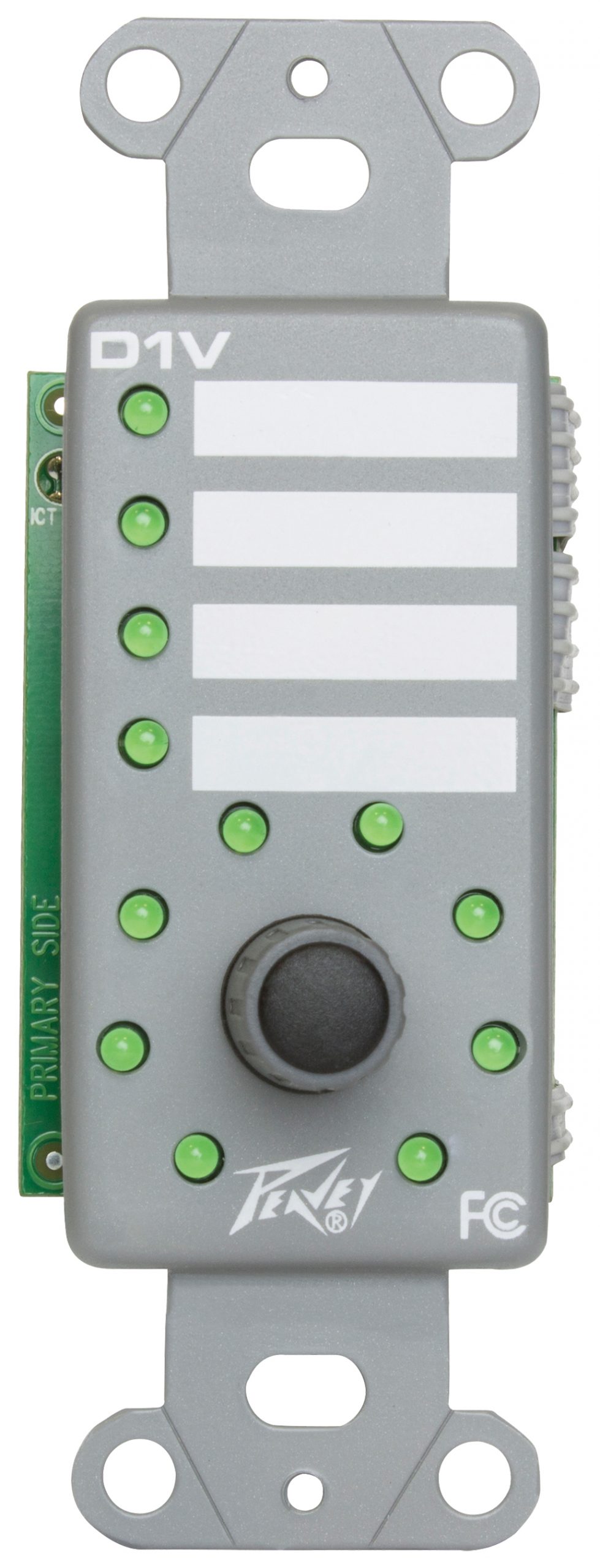

The D1VTM is a simple wall panel controller option for Digitool® and NION® based systems. The 4 push select options on the rotary encoder can be used to assign zones/sources while the encoder itself adjusts the gain level increment/decrement of a target level control within a Digitool project. The select and encoder functionality can be connected and configured to any DSP or Control object within a NION project.

Digitool can support up to 16 D-Series panels while NION can support up to 31 devices. Convenient CAT5 cabling with RJ45 termination is utilised to link the panels together in an RS-485 multi-drop topology and home run to the processor. The D1V panel is mounted in a standard NEMA 1G mounting box.

Features D1V

• RS-485 multi-drop network
• Easy wiring & installation
• Configurable controls
• Attractive cosmetic package
• Standard DecoraTM 1G mounting
• Flexible
• Addressable
• Tracking LED status indication for multiple locations
• Low power requirements

Technical Specifications

• Input Connectors: RJ45
• Output Connectors: RJ45
• SKU: 00510410
