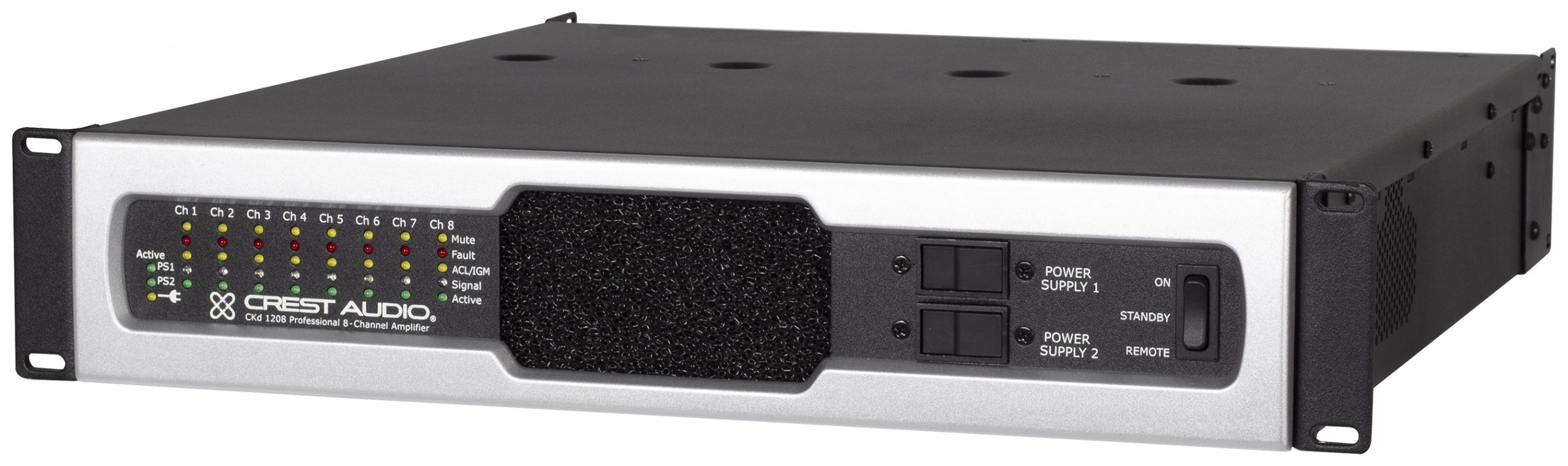

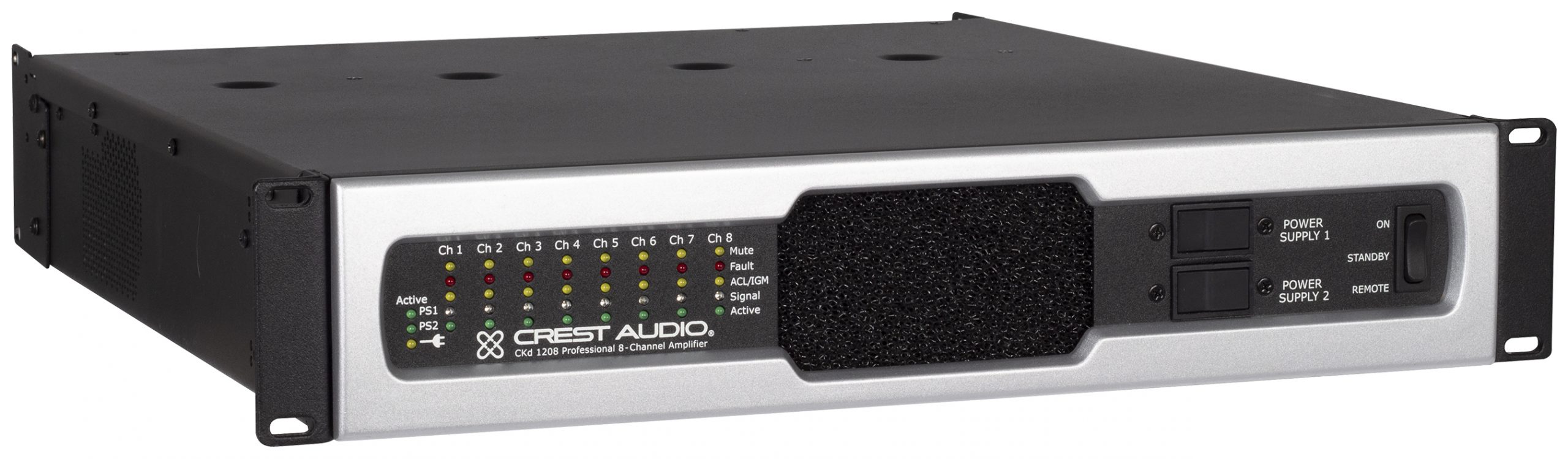

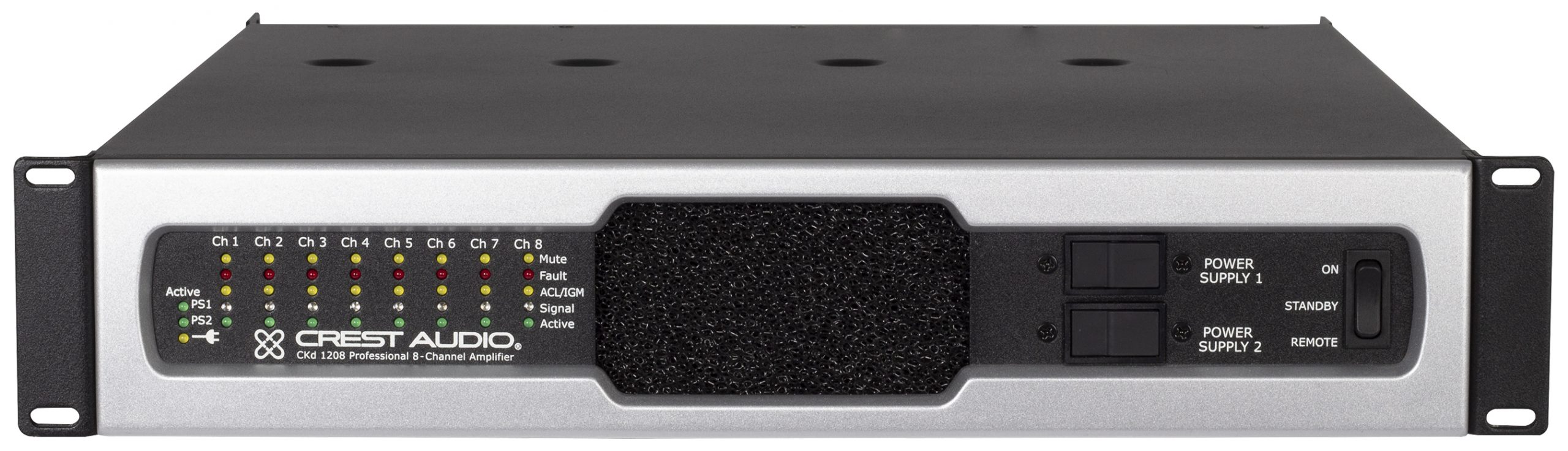

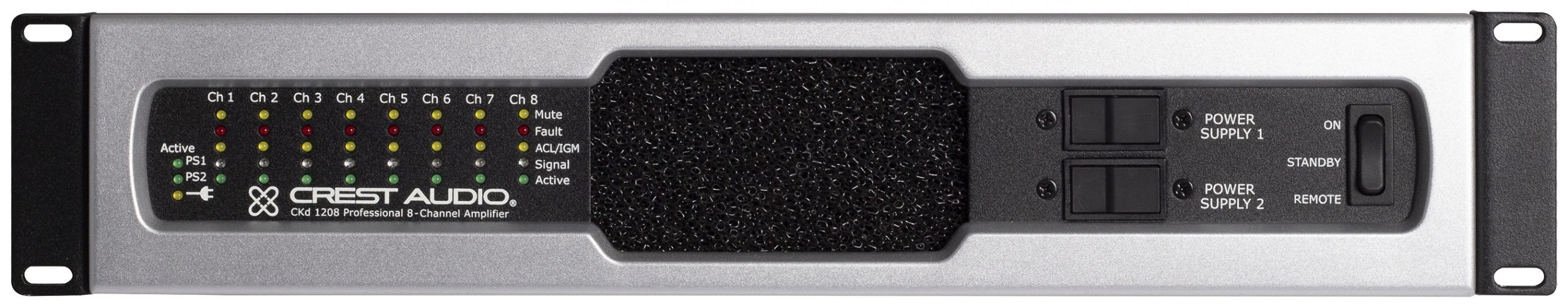

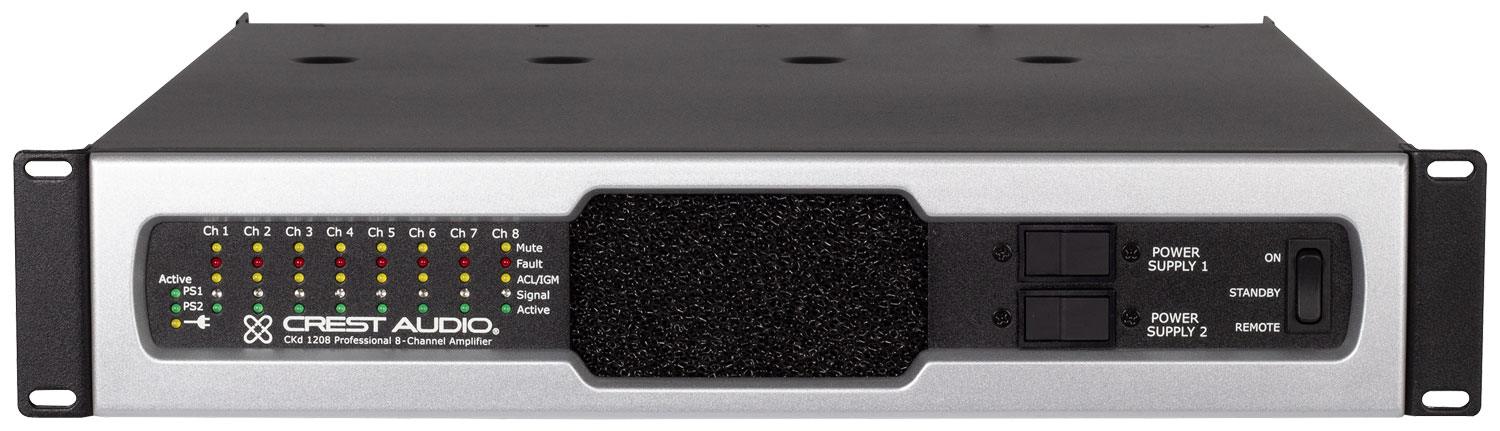

Crest Audio CKd 1208 Networkable Multi-Channel Power Amplifier

Decades of proven performance, reliability and intelligence converge in the Crest Audio CKdTM Series, combining the legendary overbuilt power supply design made famous by the Crest Audio Pro 200TM with NexSys® networking functionality and an ultra-lightweight class D topology. The design centers around an ultra-high efficiency amplifier output circuit which reduces weight while increasing output power, reliability and thermal efficiency.

The CKd Series offers four multi-channel models to meet the needs of demanding audio installations. The CKd 1208 and CKd 1204 provide 1250 Watts per channel in eight and four channels, respectively. Each amplifier channel will operate to rated power in direct 70V, 100V, 4 or 8 Ohm modes, configurable per channel.

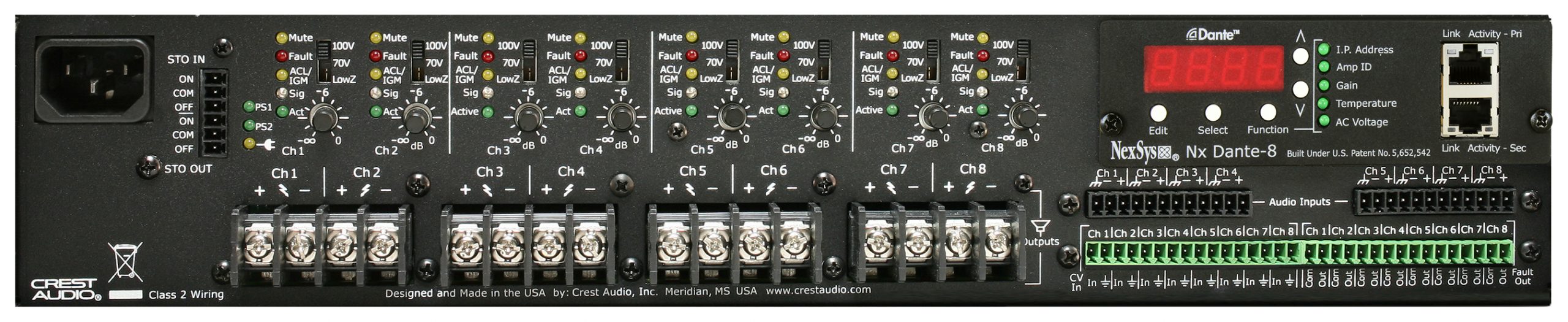

CKd amplifiers are networkable through the new Crest Audio Nx Dante® 8 NexSys control module to the Crest Audio NexSys 5 and Peavey® MediaMatrix® NWareTM software programs for advanced control and audio routing. The Nx Dante 8 module fits into the rear bay of CKd Series power amps and supports all NexSys functions, DSP functions and Dante digital audio I/O via 1 Gigabit Ethernet connection.

A Control Voltage input is included on each channel to allow external gain control, while the Fault output on each channel allows the CKd power amps to be wired to other monitoring systems. In addition, users can conserve energy by disabling channels that are not in use.

The CKd Series includes Crest Audio's exclusive ACLTM (Active Clip Limiting), which automatically reduces gain at the onset of clipping to prevent amplifier and load damage, and IGMTM (Instantaneous Gain Modulation), which monitors load current to protect against overloading.

Features CKd 1208

• Eight channels
• 1250 Watts @ 4 & 8 Ω per channel
• 1250 Watts @ 70.7V & 100V per channel
• Ultra-lightweight class D topology
• Each amplifier channel will operate to rated power in direct 70V, 100V, 4 or 8 Ohm modes, configurable per channel
• Networkable through Crest Audio Nx Dante 8 NexSys control module to the Crest Audio NexSys 5 and Peavey MediaMatrix NWare software programs for advanced control and audio routing
• Control Voltage input is included on each channel to allow external gain control
• Fault output on each channel allows CKd power amps to be wired to other monitoring system
• CKd amplifers have the option to conserve energy by disabling channels that are not in use
• Crest Audio's exclusive ACL (Active Clip Limiting)
• IGM (Instantaneous Gain Modulation) to protect against overloading

Technical Specifications

• Channels (Input): 8
• Channels (Output): 8

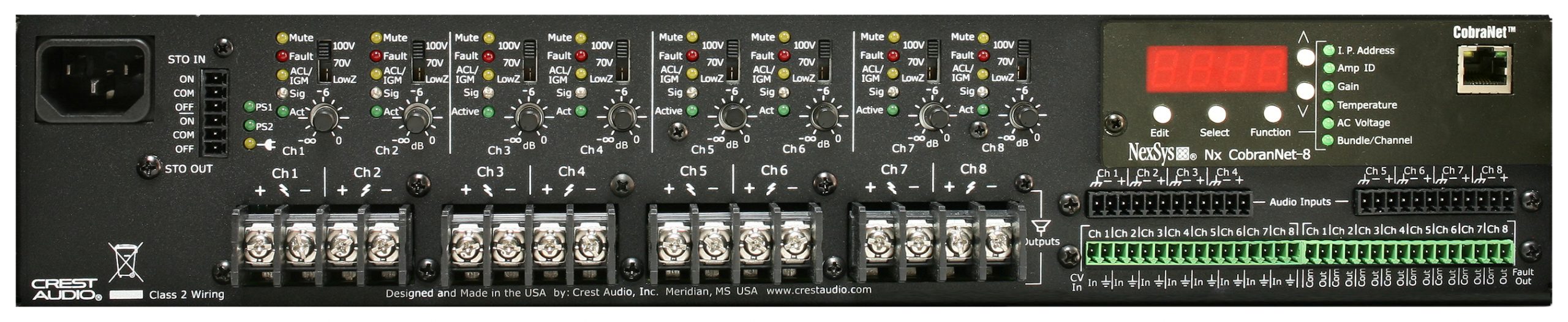

• Networked Audio: Optional (CobraNet or Dante)
• Network Control: Yes
• Power per Channel @ 70V: 1,250 W
• Power per Channel @ 100V: 1,250 W
• Topology: Class D
• Minimum Load Impedance: 4 Ω
• Frequency Response: '+0.8/-0.5 dB , 10 Hz - 22 kHz

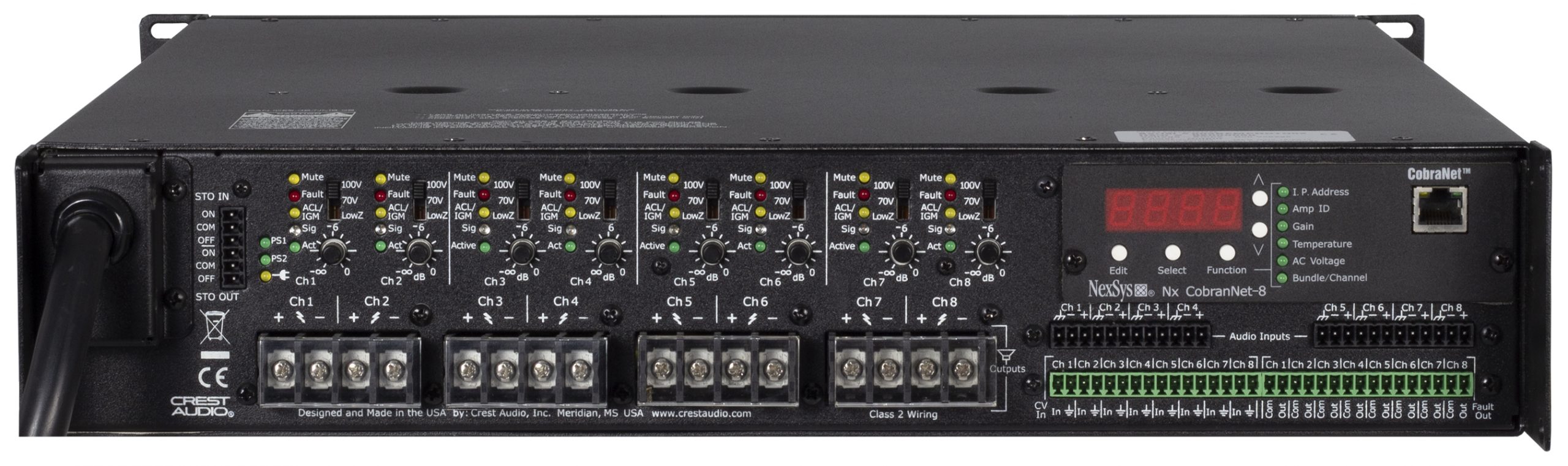

• Input Connectors: 8 x 3-pin Euro Connector
• Output Connectors: 8 x 2-pin Barrier Strips
• Net Weight: 29.6 lbs (13.43 kg)
• Product Height: 3.48" (88 mm)
• Product Width: 19.00" (483 mm)
• Product Depth: 20.30" (516 mm)
• AC Power Input: 120VAC 60 Hz , 230VAC 50 Hz version available
• SKU: 03602350
