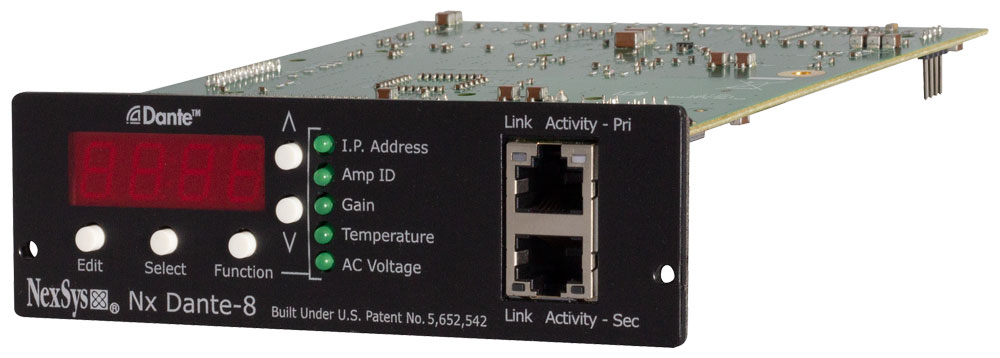

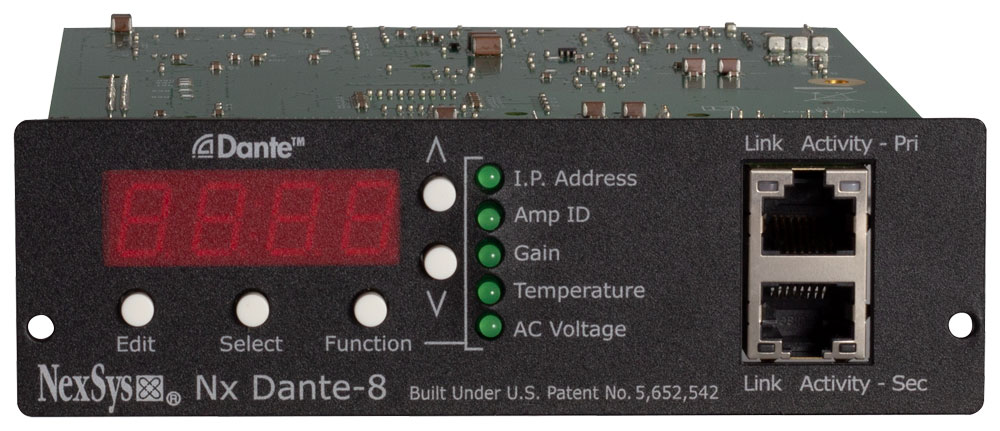

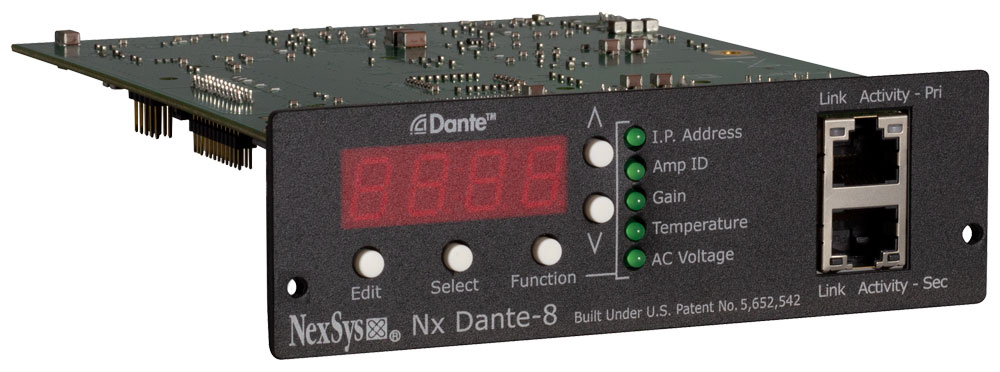

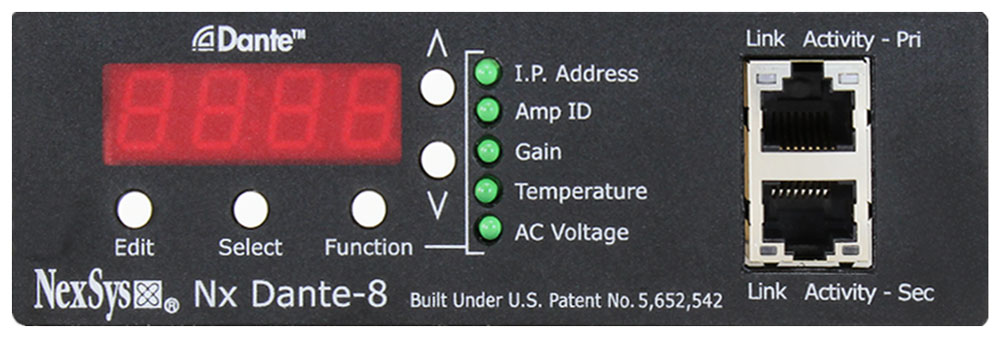

Crest Audio NexSys Nx Dante-8 network module

The Crest Audio® Nx Dante® 8 NexSys® control module, works in tandem with the Crest Audio CKdTM Series of intelligent power amplifiers to support Peavey® MediaMatrix® NWareTM audio software programs.

Providing advanced audio control and routing, the Nx Dante 8 module fits into the rear bay of CKd Series power amps and supports all NexSys functions, DSP functions and Dante digital audio I/O via 1 Gb Ethernet connection. Primary and secondary 1 Gb ports provide system redundancy for the most demanding applications, while eight Dante audio inputs and eight Dante audio outputs enable extensive audio routing capabilities.

Amplifier controls and monitoring options include Real Time Load Monitoring, ACLTM (Automatic Clip Limiting), IGMTM (Instantaneous Gain Modulation), input/output VU, Gain, Mute, Solo, DC, thermal protection, AC/DC monitoring, and Sequential Turn On/Off (remote power).

Technical Specifications

• Channels (Input): 8
• DSP On-Board: Yes
• Networked Audio: Yes (Dante)
• Network Control: Yes
• Input Connectors: 1 x RJ45
• Output Connectors: 1 x RJ45
• SKU: 03612020
