Crest Audio CM 2208 120V

CMTM Series power amplifiers feature a unique amplification architecture providing a host of user benefits including simplified operation and use in multiple applications, as well as unsurpassed sonic quality and flexible power.

CM 2208 comprises eight channels (channels are independent). A host of applications benefit from the use of multiple channel amplification, including bars, clubs and restaurants; video conferencing systems; hotels and motels; industrial installations; and retail stores, among others. One amplifier for multiple applications provides a cost-effective solution, expansion opportunities and unparalleled flexibility.

Features CM 2208

• 4 channel power amp system - 230 Watts RMS per channel (70V)
• Low-Z (4 or 8 Ω ) or 70V output

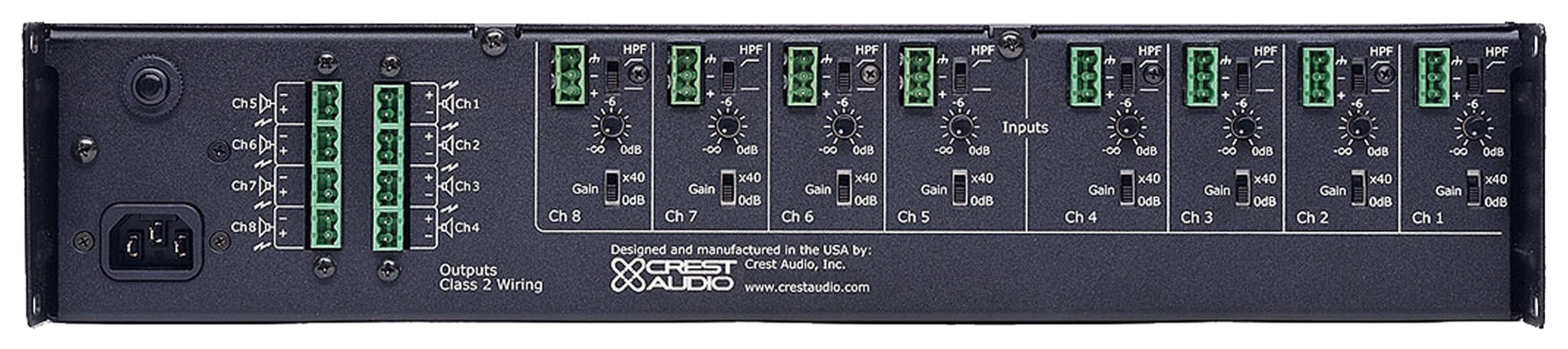

• Input connectors: balanced three-pin Phoenix
• Output connectors: two-pin Phoenix
• Full range of protection circuits including ACLTM, IGMTM and AutorampTM
• 16-gauge steel chassis
• 2U rack space height
• Protection Circuits / Safety including: ACL, IGM, and Autoramp
• Front-to-side cooling

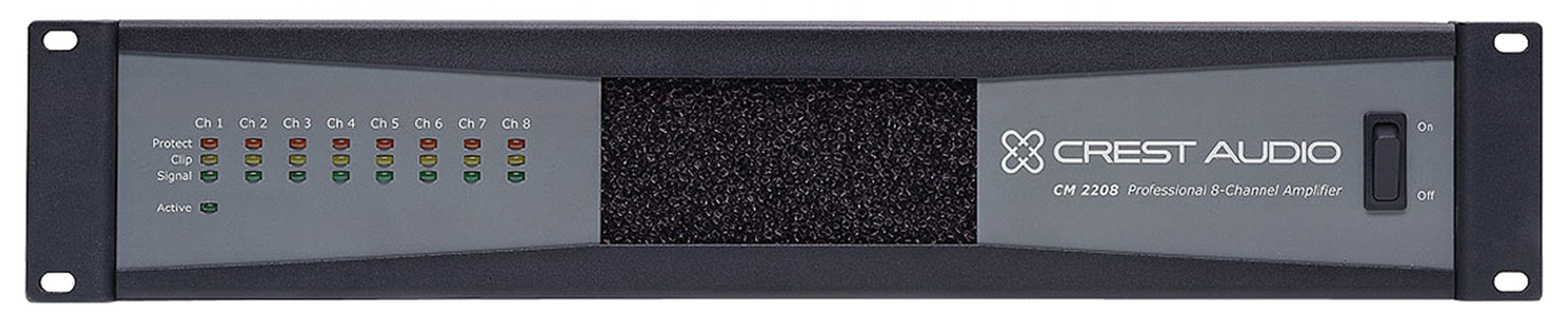

• Front-panel LED indicators per channel: signal, clip, and protect
• Input and output mating connectors are included

Technical Specifications

• Channels (Input): 8
• Channels (Output): 8
• Power per Channel @ 70V: 170 W
• Topology: Class D
• Minimum Load Impedance: 4 Ω
• Frequency Response: 5 Hz - 20 kHz; -1 dB
• Input Connectors: 8 x 3-pin Euro Connector
• Output Connectors: 8 x 2-pin Euro Connector
• Net Weight: 36.5 lbs (16.50 kg)
• Product Height: 3.50" (89 mm)
• Product Width: 19.00" (483 mm)
• Product Depth: 17.05" (433 mm)
• AC Power Input: 120VAC 60 Hz & 230VAC 50 Hz version available
• SKU: 01000550
