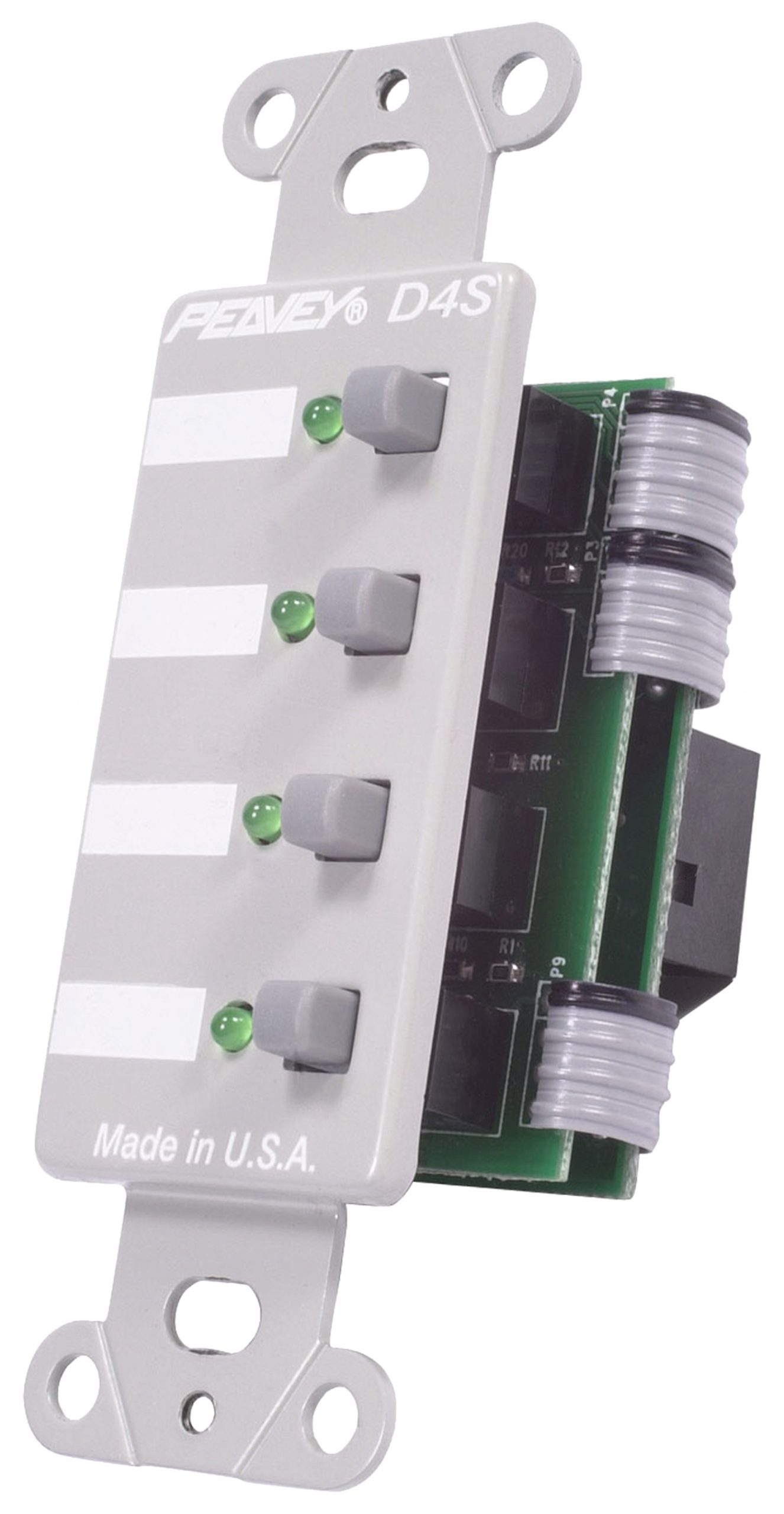

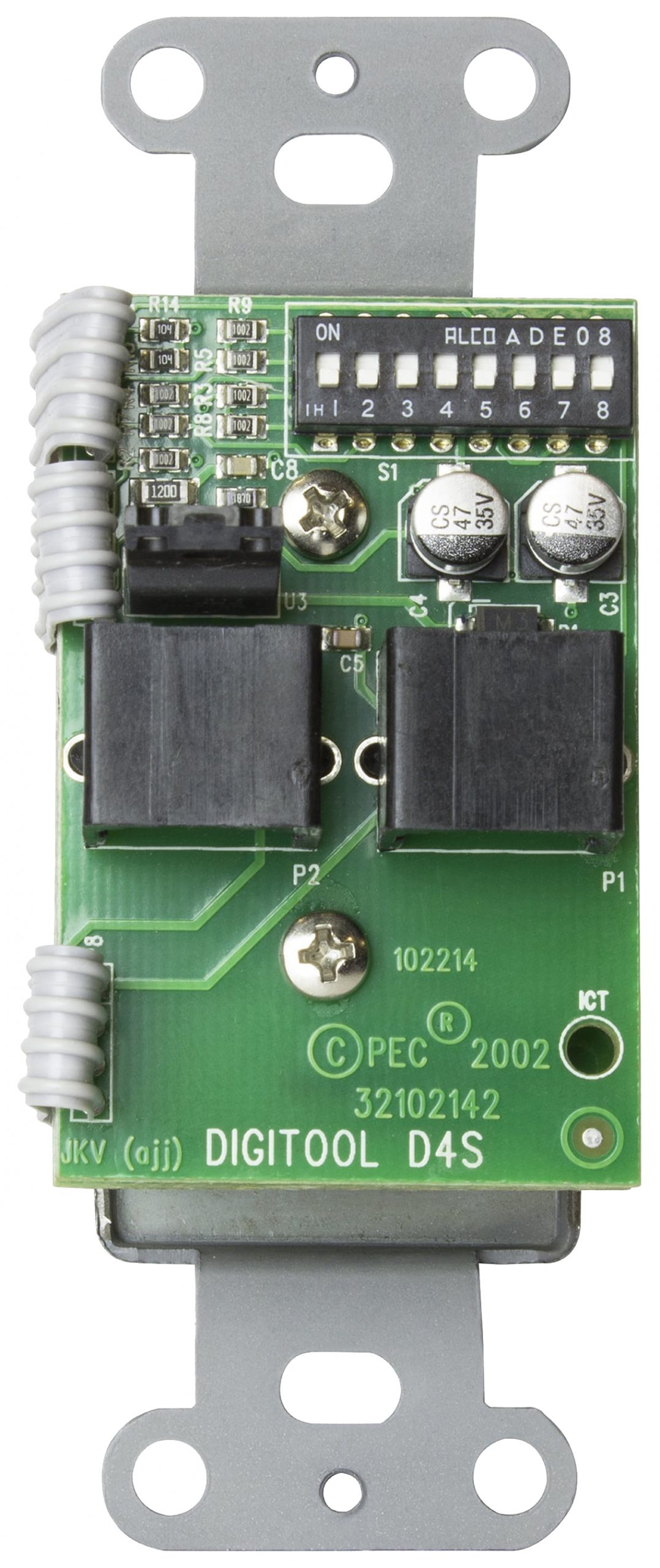

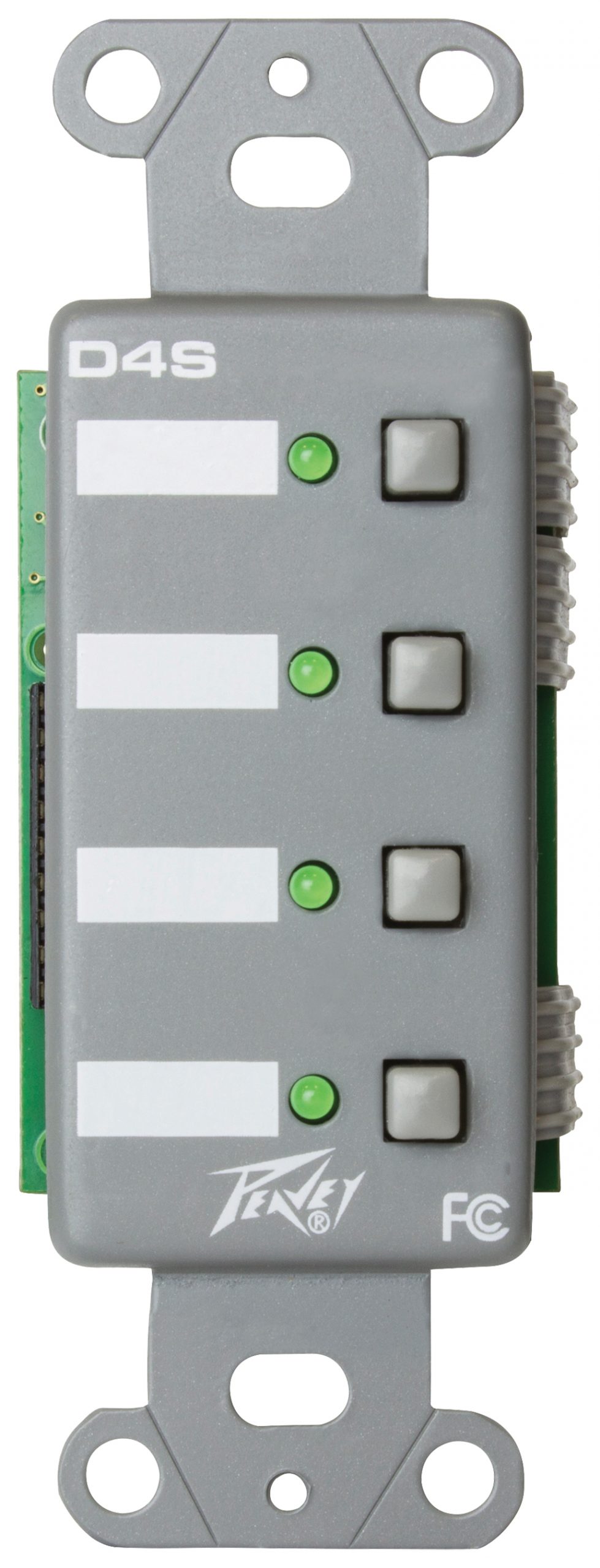

Peavey Digitool 4S

The D4STM is a simple wall panel controller option for Digitool® and NION® based systems. The 4 push buttons on the device can be configured as either switches (toggles) or momentary triggers depending on the requirement. Buttons can be assigned as either mutes or presets in a Digitool project and can be connected to any DSP or Control object within a NION project.

Digitool can support up to 16 D-Series panels while NION can support up to 31 devices. Convenient CAT5 cabling with RJ45 termination is utilised to link the panels together in an RS-485 multi-drop topology and home run to the processor. The D4S panel is mounted in a standard NEMA 1G mounting box.

Features D4S

• RS-485 multi-drop network
• Easy wiring & installation
• Configurable controls
• Attractive cosmetic package
• Standard DecoraTM 1G mounting
• Flexible
• Addressable
• Tracking LED status indication for multiple locations

Technical Specifications

• Input Connectors: RJ45
• Output Connectors: RJ45
• SKU: 00510400
