R115

OVERVIEW

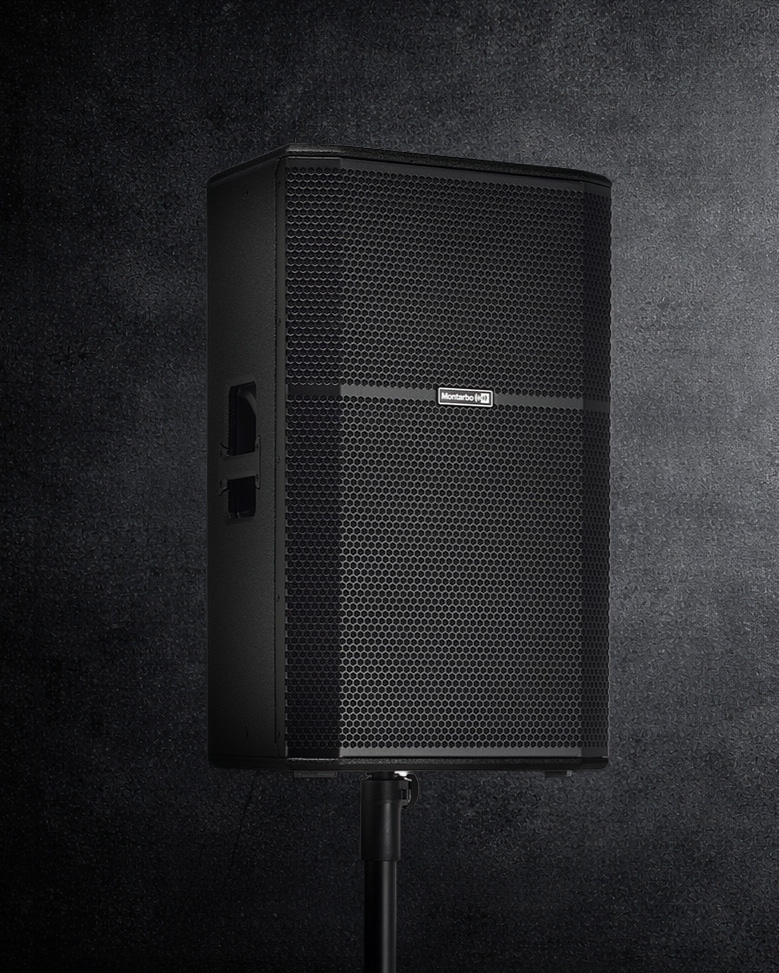

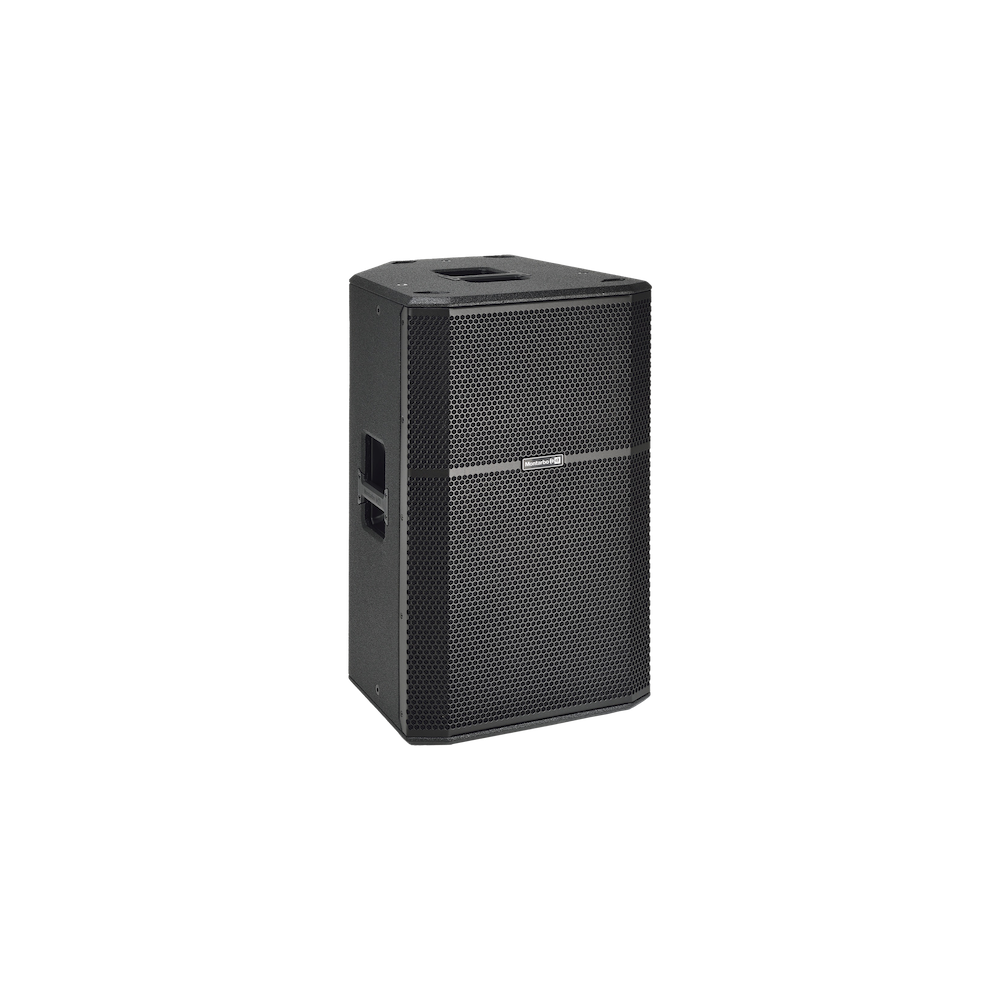

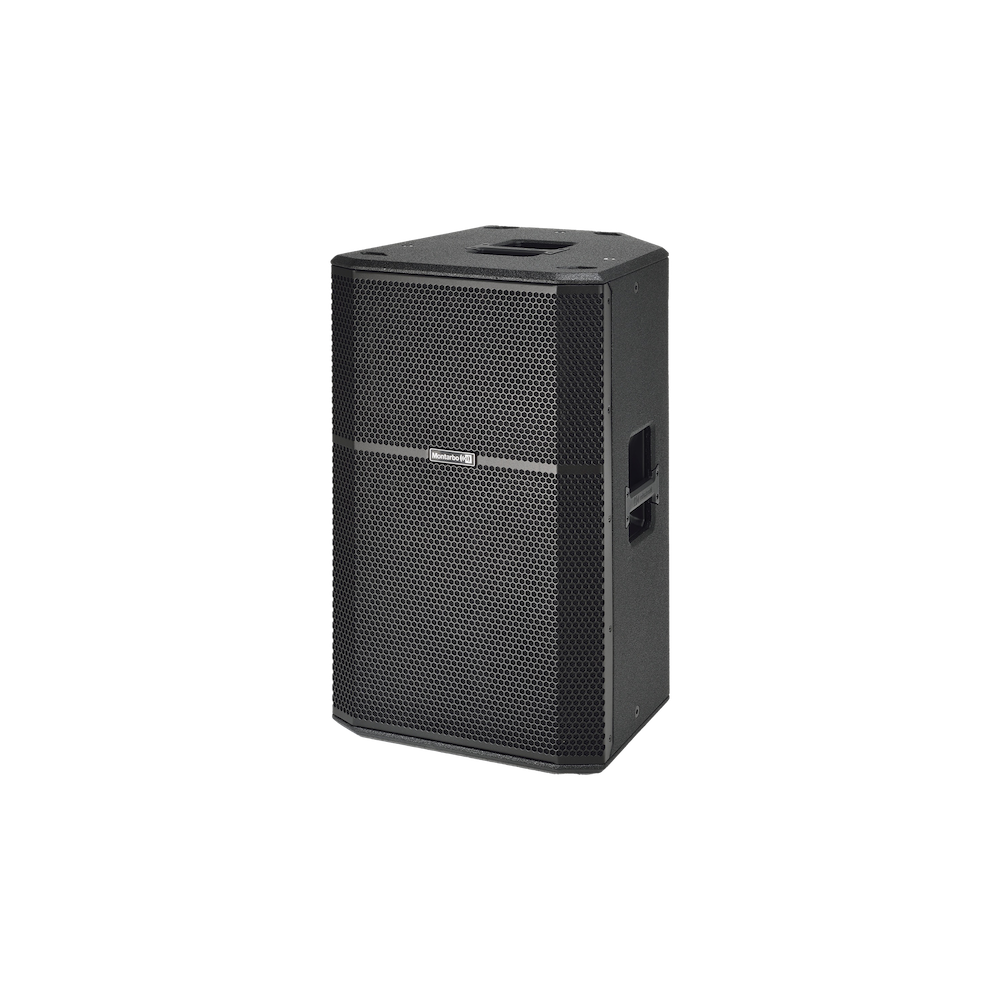

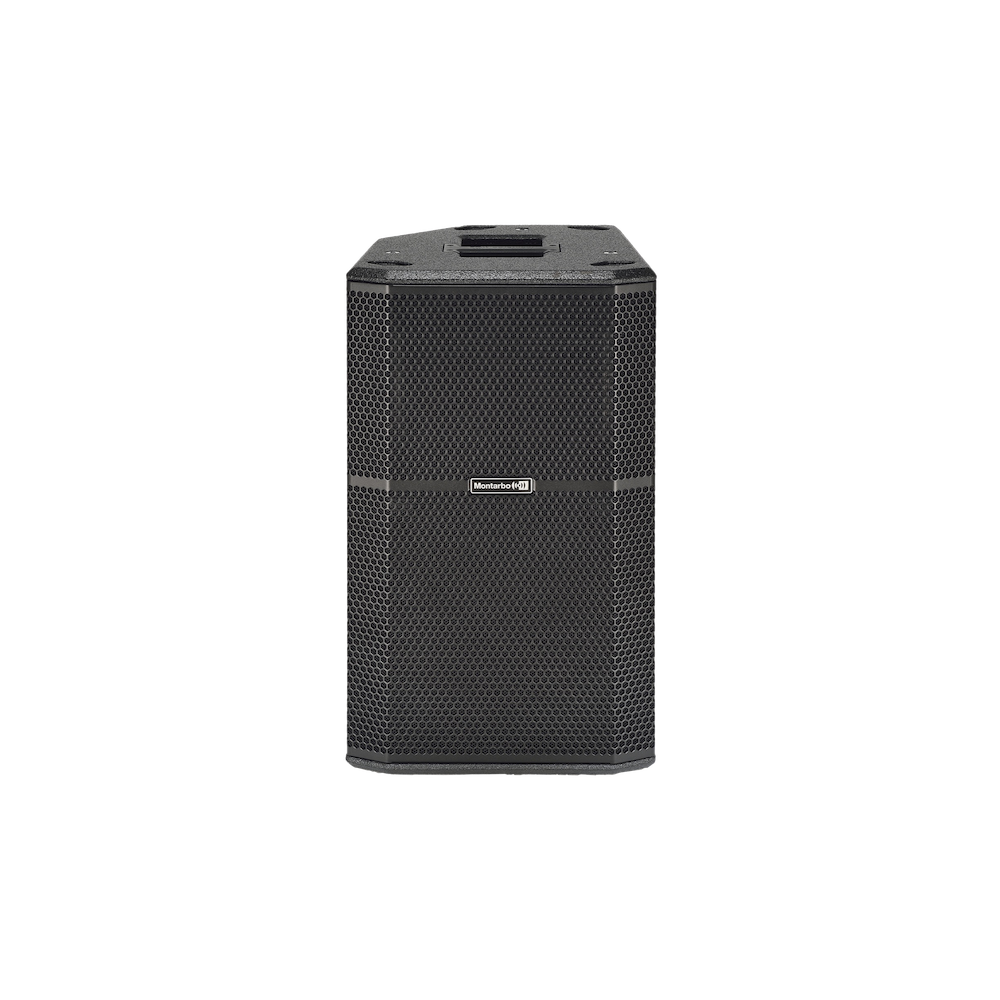

Montarbo R115. High-output versatility R115 is a professional 2-way active loudspeaker engineered for high-output portable PA, touring, and medium-sized live events. Its bass-reflex architecture combines a 15" low-frequency driver with 3" voice coil and a 1.75" HF compression driver, delivering extended low-end authority, clear midrange, and detailed high frequencies. The system reaches a maximum sound pressure level of 132 dB, ensuring intelligibility and dynamic impact across demanding performance environments. The loudspeaker's 90° × 40° coverage pattern provides wide horizontal dispersion with controlled vertical directivity, enabling precise audience coverage and minimizing unwanted reflections. This makes ideal for mobile PA systems, front-of-house setups, stage monitoring, touring, and rehearsal spaces. Powered by a Class D amplifier platform rated at 600 W RMS / 1200 W peak, delivers responsive transient performance with ample headroom. Its passive radiator design ensures efficient low-frequency extension without the need for active cooling. Onboard DSP processing-including FIR filters, 24-bit / 48 kHz conversion, and 28/56-bit internal processing-optimizes crossover behavior, phase alignment, and overall tonal balance. Front-panel controls offer channel-level adjustment, preset selection, input sensitivity, and LINK/MIX routing, while comprehensive connectivity-including Combo, XLR, and 1/4" inputs with XLR line output-enables flexible multi-speaker deployment and scalable system expansion. Constructed from multilayer wood with a protective polyurea coating, the cabinet is engineered for touring durability. Measuring 427 × 705 × 428 mm and weighing 25.9 kg, R115 combines high output and extended bandwidth with reliability and practicality for professional portable and live performance use.

FEATURES
- High-output 2-way active loudspeaker with extended low-frequency reach
- Powerful 15" LF driver and 1.75" HF driver for dynamic, authoritative sound
- Integrated DSP with FIR filtering for precise tuning and tonal balance
- Flexible connectivity and LINK/MIX routing for multi-speaker setups
- Touring-grade wooden cabinet with polyurea finish for robust portability

APPLICATION
R115 is ideal for portable PA systems, touring bands, DJs, and medium-sized live events where high SPL, clarity, and impact are required. Its extended low-frequency response, articulate mids, and focused high frequencies make it well-suited for music playback, live performance, and speech in small-to-medium venues, rehearsal spaces, and mobile setups. Thanks to its flexible connectivity and scalable signal routing adapts seamlessly to different configurations-from stand-mounted mobile setups to multi-speaker front-of-house arrays. Built for touring durability and reliable performance, it provides professionals with a versatile, high-output solution for demanding portable and live sound reinforcement applications.

SPECIFICATION SHEET
Acoustical Data
Speaker Type: 2-way Active bass reflex
Frequency Response [-10 dB]: 48 Hz - 20 kHz
Max SPL: 132 dB
HF: 1.75″ driver
LF: 15″ - 3″ V.C.
Dispersion: 90° H x 40° V
Crossover Frequency: 1.5 kHz
Amplifier
Amp Class: TBA
RMS Power: 600 W
Peak Power: 1200 W
Cooling: Passive radiator
DSP
Advanced Functions: FIR filters 28/56 Bit
AD/DA Converter: 24Bit / 48kHz

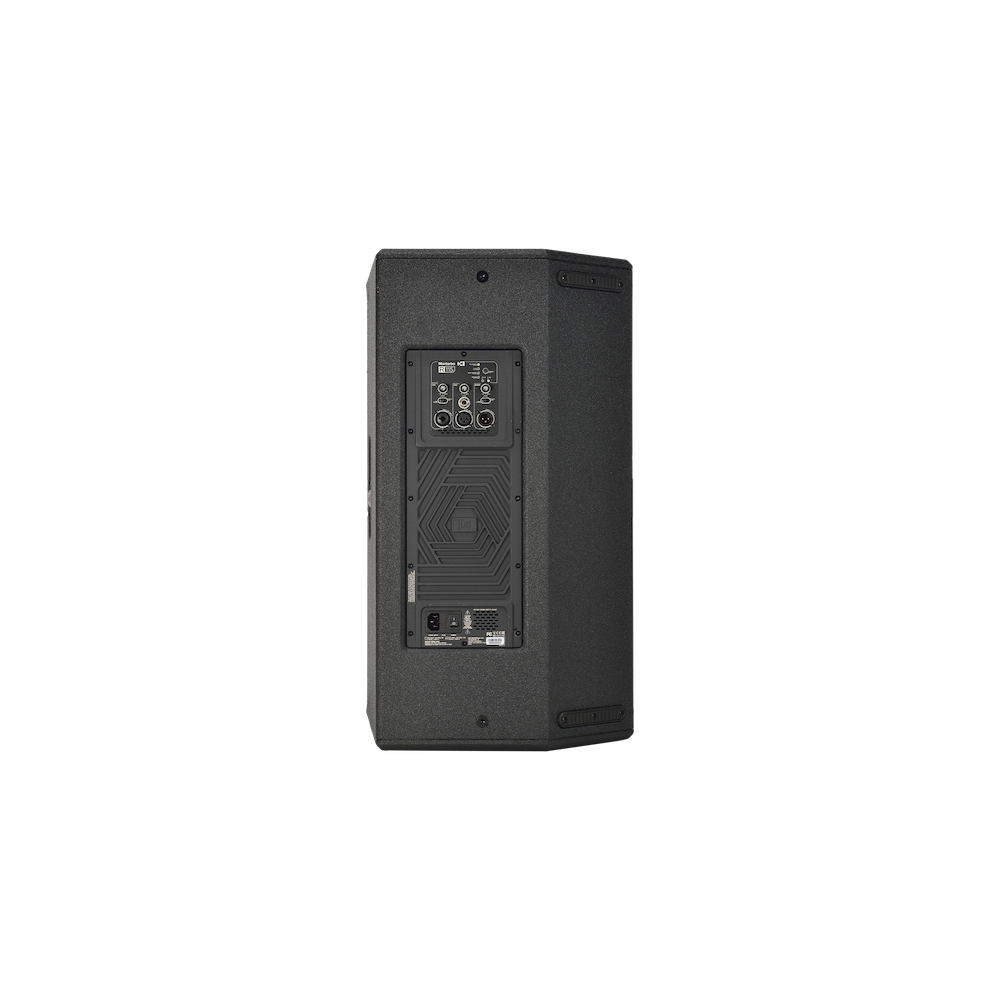

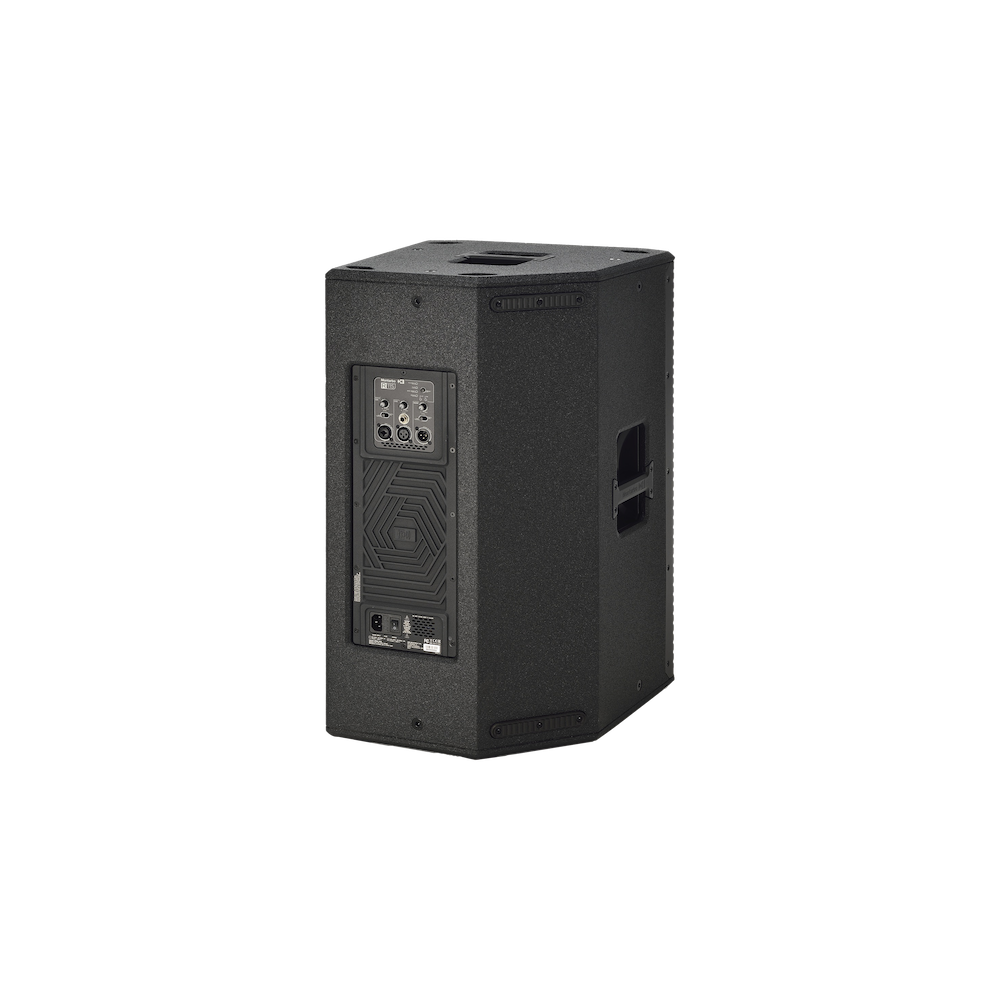

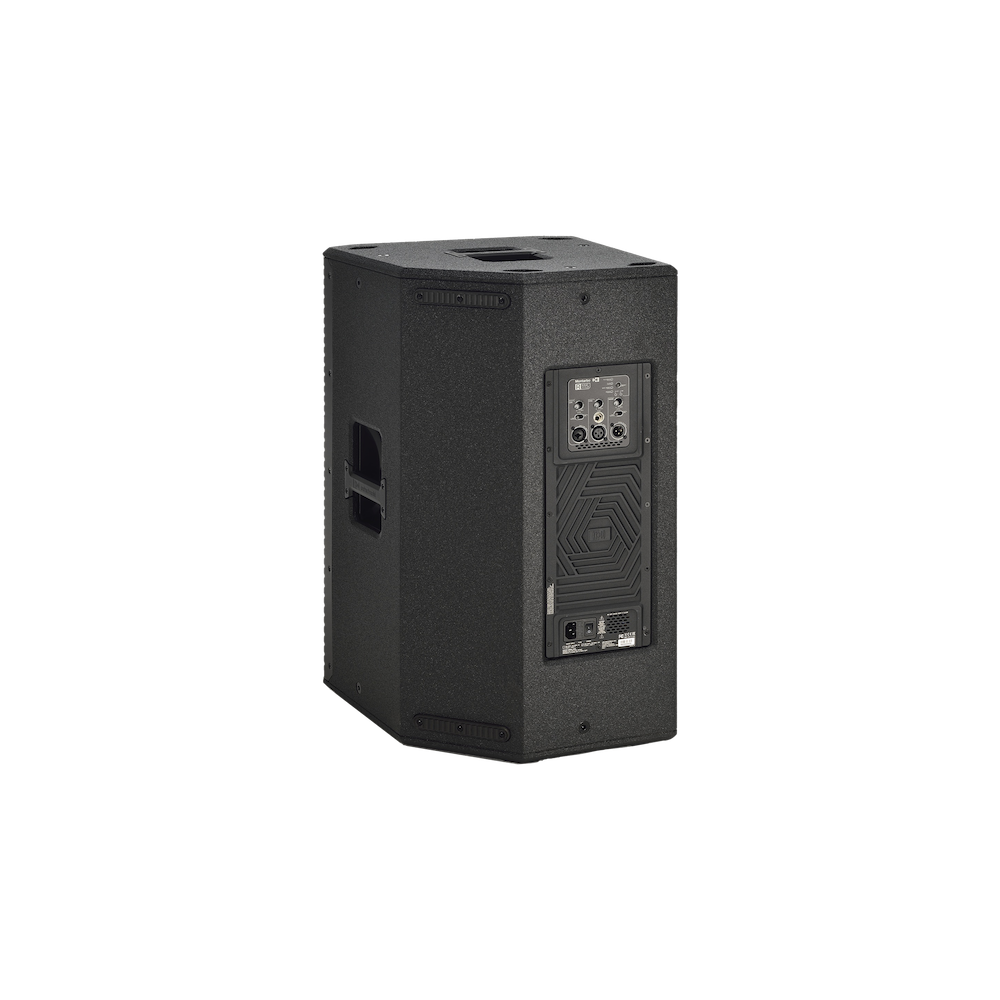

Controls: Channel level MAIN level PRESET Channel 1 sensitivity LINK/MIX output
Connectors
Dimensions: W x H x D 427 x 705 x 428 mm [16.8" x 27.8" x 16.9"]
Weight: 25.9 kg [57 lb]
Cabinet: Multilayer wood with polyurea finish
