NETTUNO L28

OVERVIEW

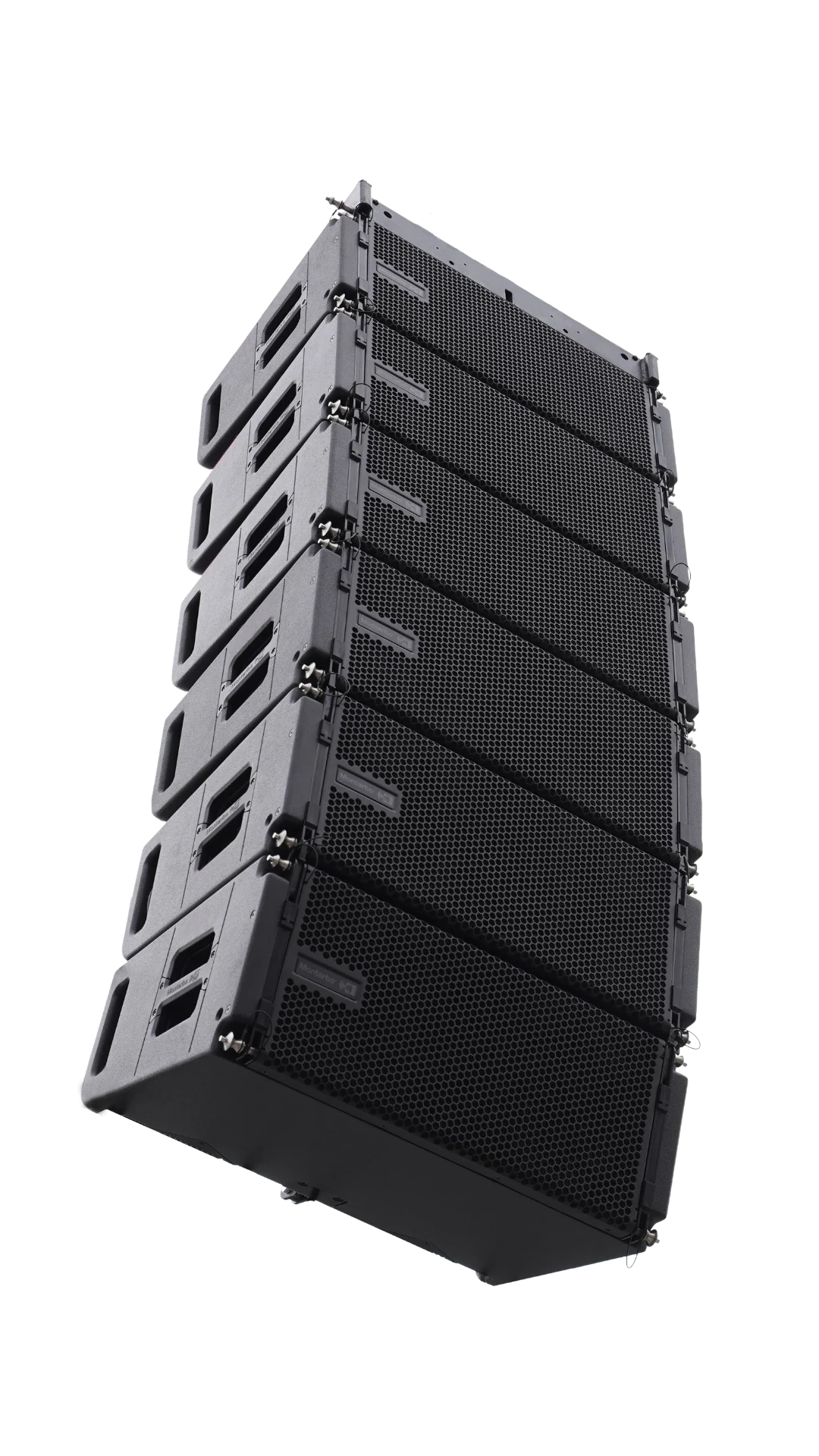

Montarbo L28: adaptive nature in a lightweight enclosure.

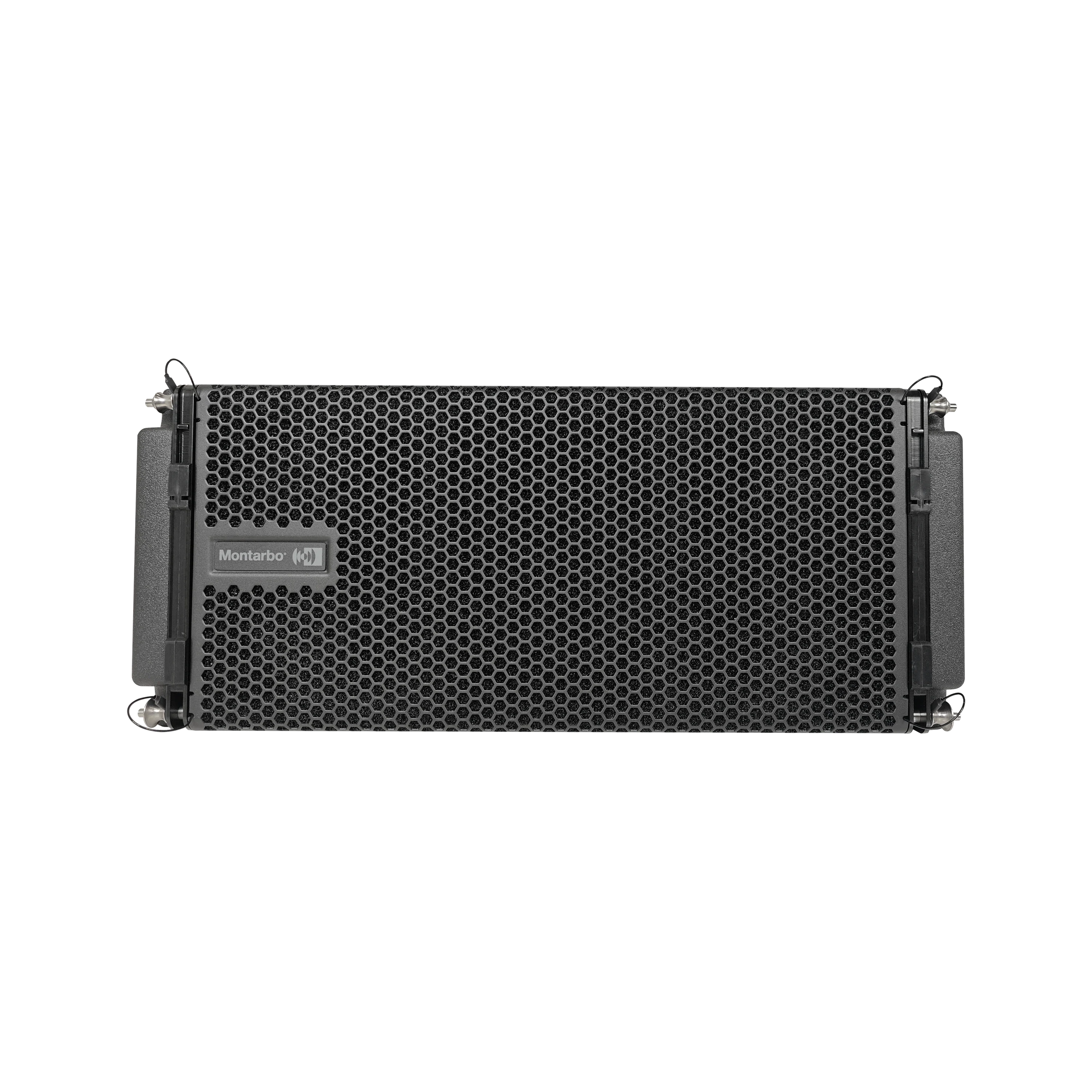

Nettuno L28 incorporates two 8-inch ferrite woofers and a 1.4-inch neodymium compression driver with a 3-inch voice coil, powered by a Montarbo-engineered 1000 W RMS amplifier featuring integrated DSP and FIR filtering. Its symmetrical waveguide and phase-plug architecture deliver exceptional efficiency, achieving an optimal balance of compact form factor, refined industrial design, and impressive acoustic output.

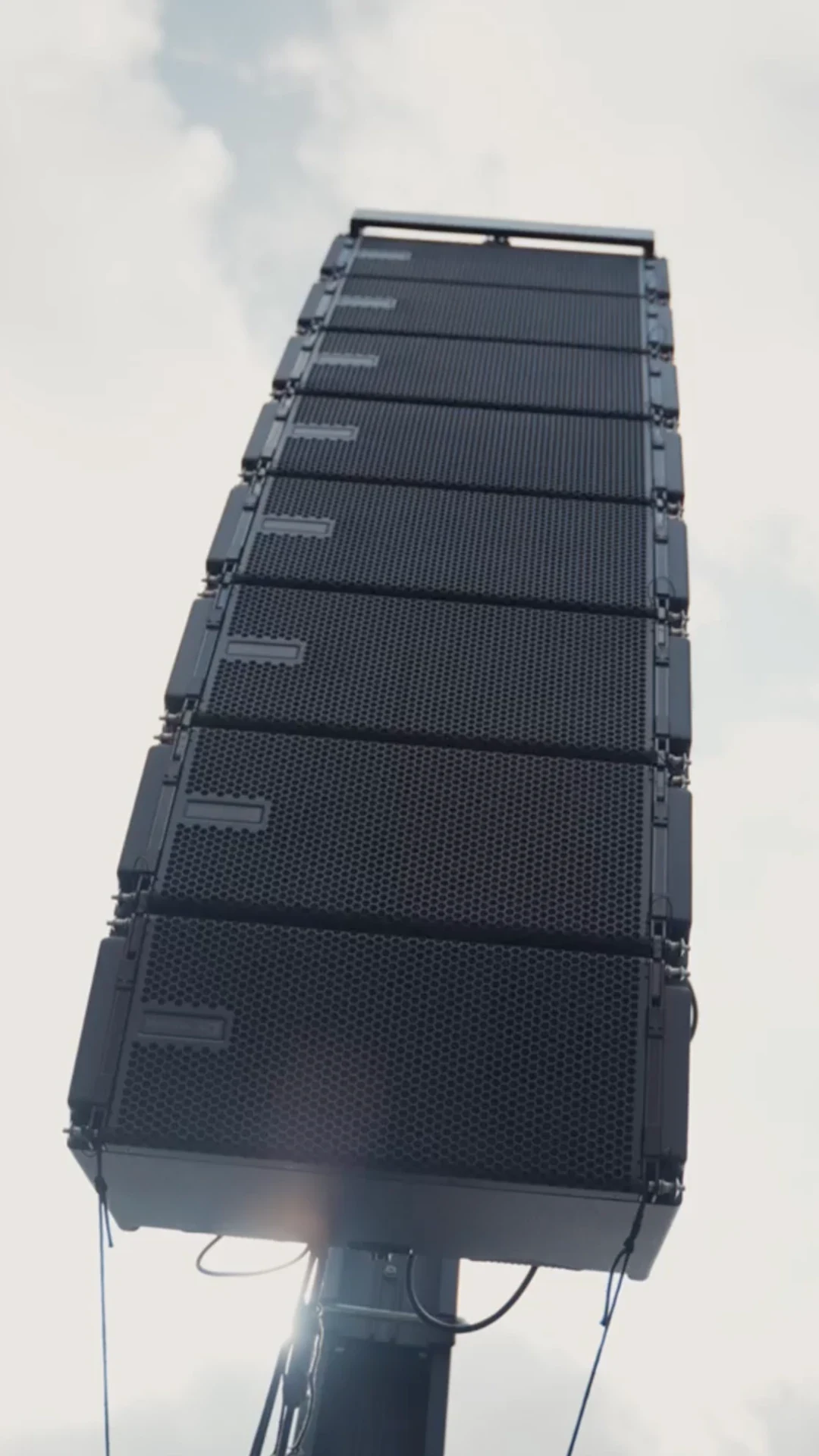

Deployment is streamlined and intuitive: up to 20 cabinets can be configured using only two rotary encoders, with coupling and HFC presets readily accessible. With a 100° horizontal dispersion, the L28 ensures smooth, uniform coverage across wide or acoustically challenging medium-size environments. External processing is unnecessary—the built-in high-frequency compensation provides precise control over each cabinet’s throw, enabling effortless system optimization.

When paired with the Nettuno S181 or S182 subwoofers, the L28 forms a coherent and scalable system capable of delivering focused energy and consistent performance for audiences of up to 5,000 people.

FEATURES
- 1000W RMS class D amp
- 133-135 dB SPL (preliminary)
- 2x8" LF transducers
- 1.4" HF driver with 3" V.C.
- 100° horizontal dispersion
- Plywood enclosure with polyurea finish
- <24>

SPECIFICATION SHEET
Acoustical Data
Speaker Type: Vented enclosure - Array loudspeaker
Frequency Response [-10 dB]: 75 Hz - 15.6 kHz
Max SPL: 135.5 dB
HF: 1.4" - 3" V.C.
LF: 8" - 2" V.C.
Dispersion: 100°
Crossover Frequency: 940 Hz

Amplifier
Amp Class: D
RMS Power: 1000 W
Peak Power: 2000 W
Cooling: Conventional

DSP
Advanced Functions: 8 presets / Linear phase - FIR filters
DSP: 28/48 Bit
AD/DA Converter: 24Bit / 48kHz

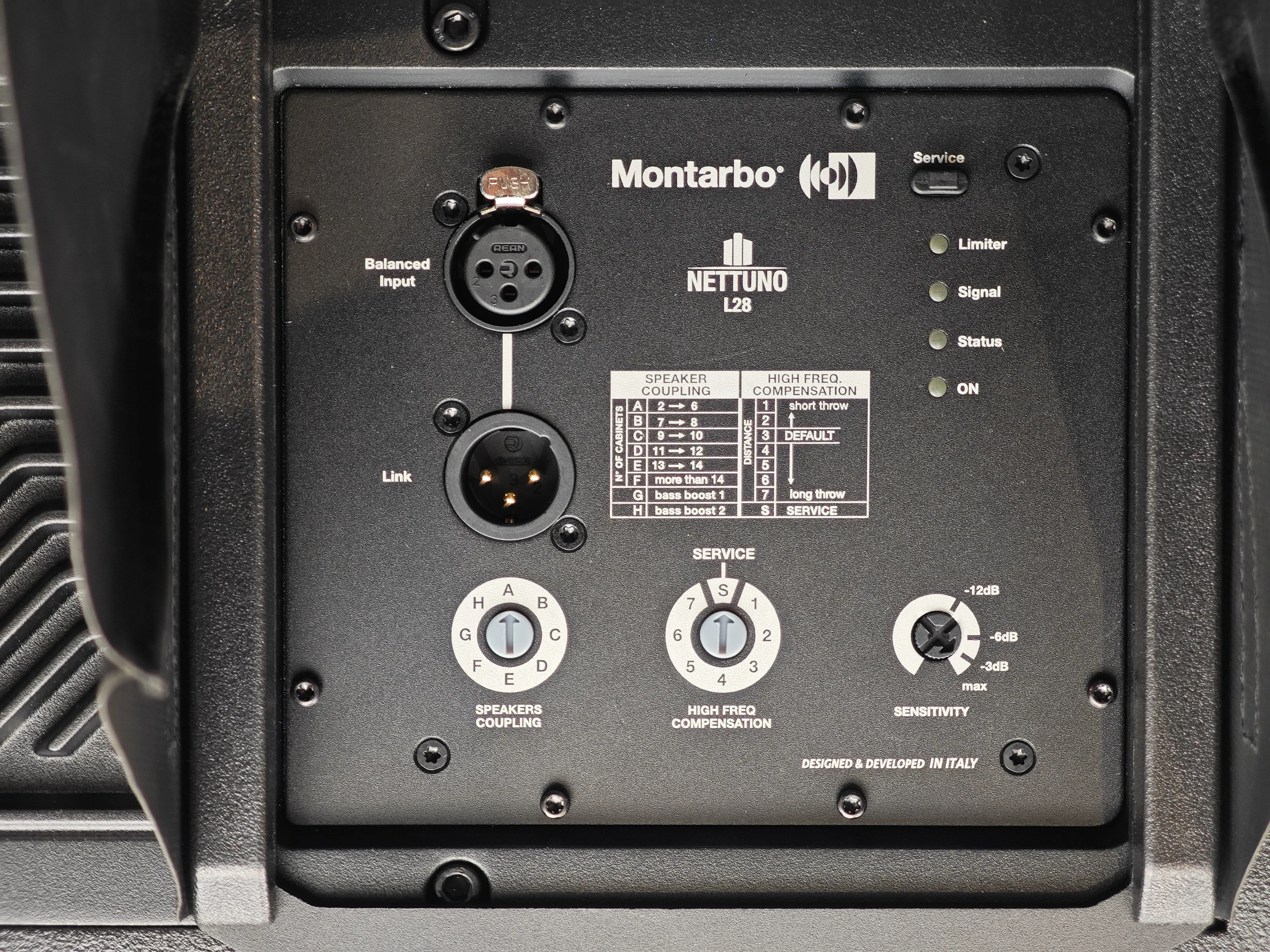

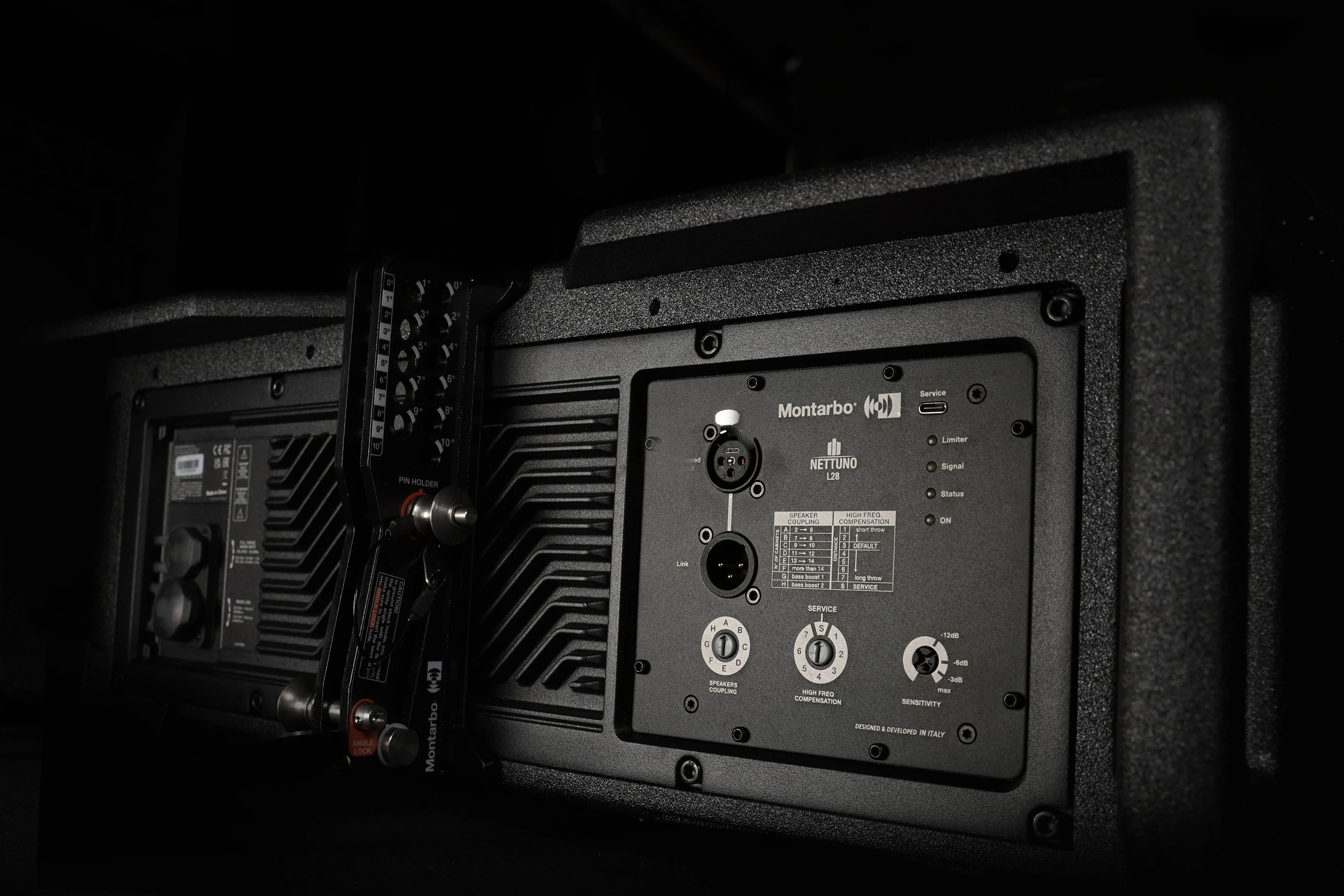

Controls: CH1 level | User/Service switch | Limiter/Sign./ Status/On leds | USB C-TYPE port

Connectors

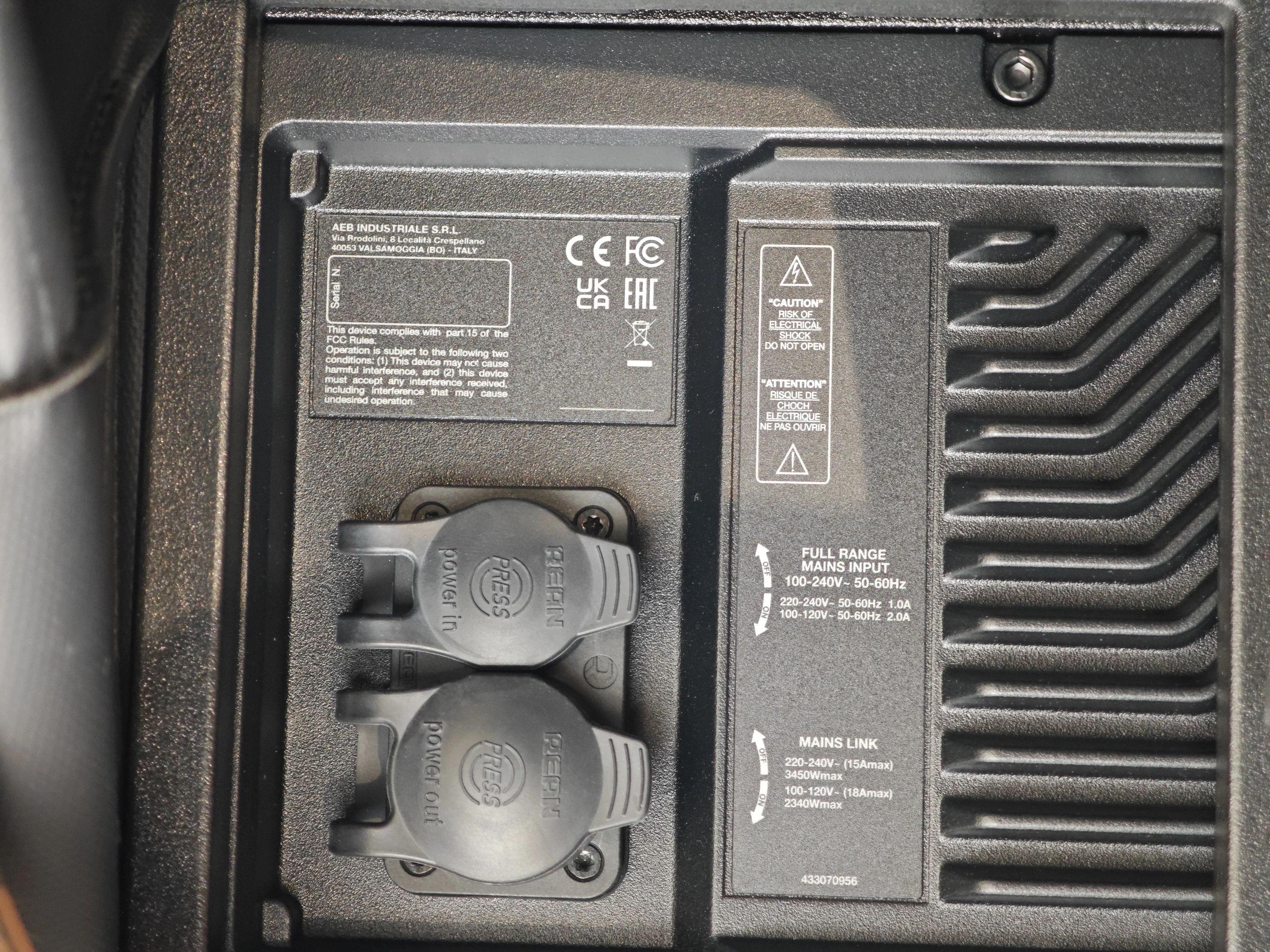

Connectors: Powercon TRUE1 IN/OUT 110-240V AC

Enclosure
Dimensions: W x H x D 600 x 260 x 390 mm [23,62" x 10,24" x 15,35"]
