R110

OVERVIEW

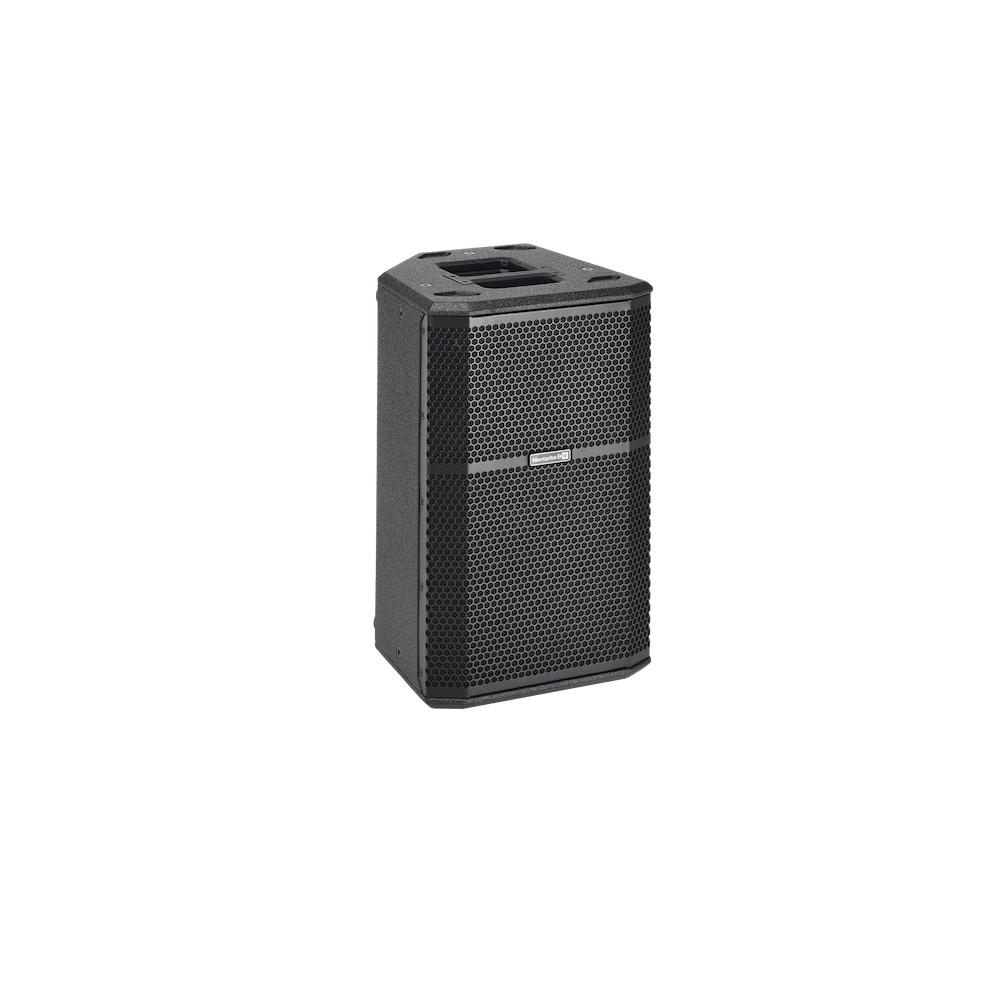

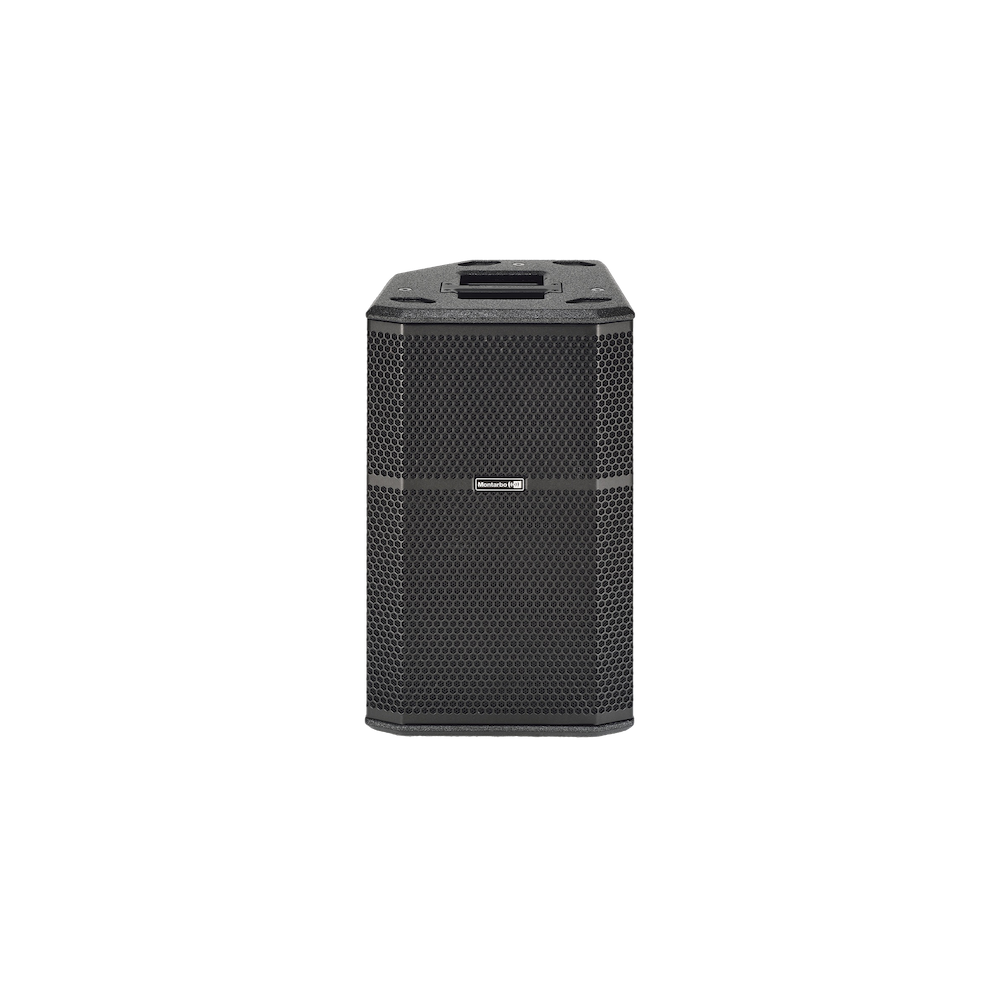

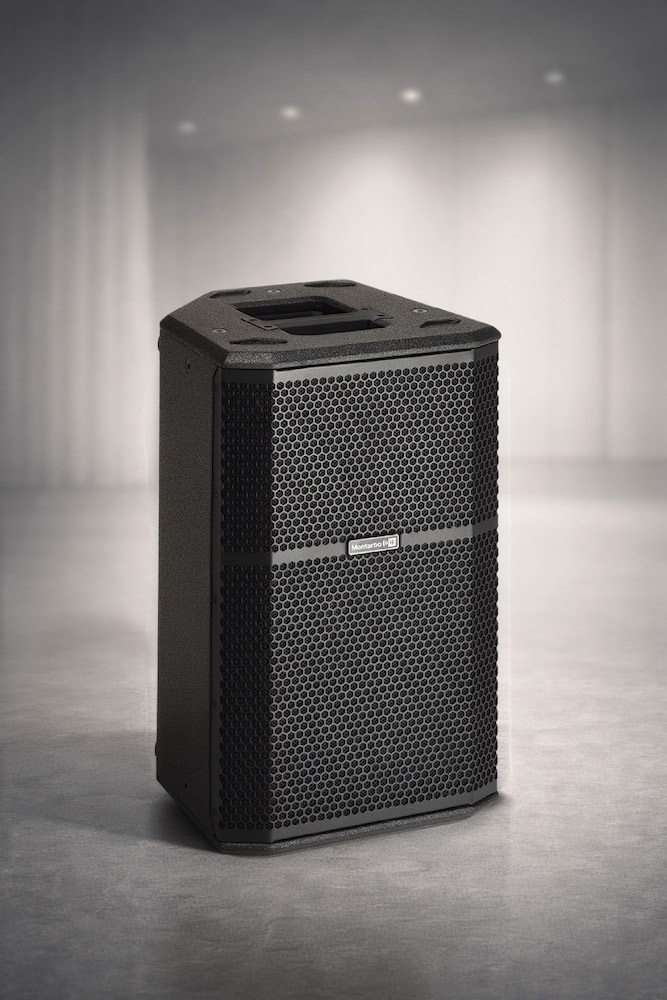

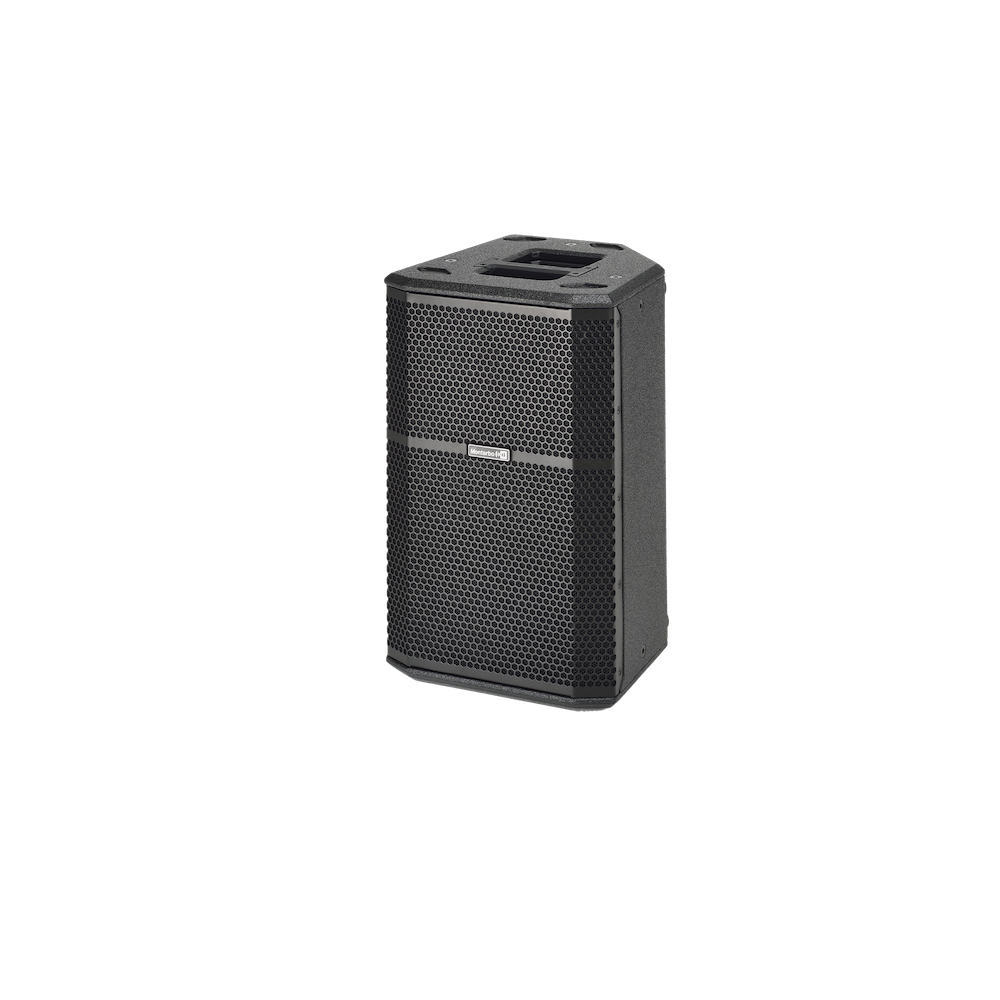

Montarbo R110. Extended low-end, confident sound. R110 is a professional 2-way active loudspeaker designed for portable PA systems, rental fleets and fixed installations where clarity, output and reliability are required. Its bass-reflex architecture pairs a 10" LF driver with 2" voice coil and a 1.35" HF compression driver, offering enhanced low-end authority and increased headroom compared to more compact formats. The system reaches a maximum sound pressure level of 127 dB, maintaining high intelligibility for speech and music within small to medium audience areas. The loudspeaker's 90° × 70° coverage pattern provides wide, uniform horizontal dispersion with controlled vertical directivity, helping to simplify placement and reduce troublesome reflections in acoustically challenging environments. This makes R110 suitable for applications including corporate A/V, mobile performance, DJ monitoring, rehearsal rooms, worship spaces and distributed sound reinforcement in commercial or educational facilities. Powered by a hybrid Class D + A/B amplifier platform rated at 200 W RMS / 400 W peak, R110 delivers responsive transient performance with ample dynamic headroom for program material. Fan-assisted cooling ensures thermal stability during extended operation, while the onboard DSP utilizes FIR filtering, 24-bit / 48 kHz conversion and 28/56-bit processing to optimize crossover behavior, phase response and overall system linearity. Front-panel controls offer access to channel levels, preset selection and input sensitivity adjustment, while flexible connectivity-including Combo, XLR and 1/4" inputs with LINK/MIX routing and XLR line output-facilitates straightforward expansion, signal distribution and multi-speaker deployment for scalable configurations. Built from multilayer wood and finished with a durable polyurea coating, the enclosure is engineered for long-term reliability in portable and installed use. Measuring 304 × 505 × 305 mm and weighing 12.7 kg, R110 provides higher output and fuller bandwidth performance while remaining manageable for day-to-day transport and installation, offering professionals a robust and versatile loudspeaker that delivers the recognizable Montarbo sonic character with added impact.

FEATURES
- Versatile active PA loudspeaker with higher output and fuller low end
- Wide, even coverage for clear speech and detailed musical reproduction
- Integrated DSP processing for controlled, balanced system performance
- Flexible I/O and LINK/MIX routing for straightforward multi-speaker setups
- Robust wooden cabinet designed for reliable use in portable and installed applications

APPLICATION
R110 is a versatile active loudspeaker designed for everyday professional sound reinforcement. Its fuller low-frequency response, clear vocal articulation and higher output make it well-suited for presentations, music playback and small live performance in cafés, bars, multipurpose venues and rehearsal spaces. With clean SPL and consistent intelligibility at short to medium distance, it adapts effectively to both speech-oriented and music-focused applications. Thanks to its straightforward connectivity and scalable signal routing, accommodates a range of deployment scenarios-from stand-mounted mobile PA setups to distributed audio in fixed installations. It integrates naturally into environments such as retail spaces, educational facilities, houses of worship, corporate A/V rooms and community venues where reliable coverage, fast setup and dependable day-to-day operation are required. Whether used in rental stock, permanent installations or portable systems offers a practical and professional solution for small to medium sound reinforcement needs.

SPECIFICATION SHEET
Acoustical Data
Speaker Type: 2-way Active bass reflex
Frequency Response [-10 dB]: 61 Hz - 20 kHz
Max SPL: 127 dB
HF: 1.35″ driver
LF: 10″ - 2″ V.C.
Dispersion: 90° H x 70° V
Crossover Frequency: 1.78 kHz
Amplifier
Amp Class: D + A/B
RMS Power: 200 W
Peak Power: 400 W
Cooling: Fan
DSP
Advanced Functions: FIR filters 28/56 Bit
AD/DA Converter: 24Bit / 48kHz
Controls: Channel level MAIN level Preset Channel 1 sensitivity LINK/MIX output

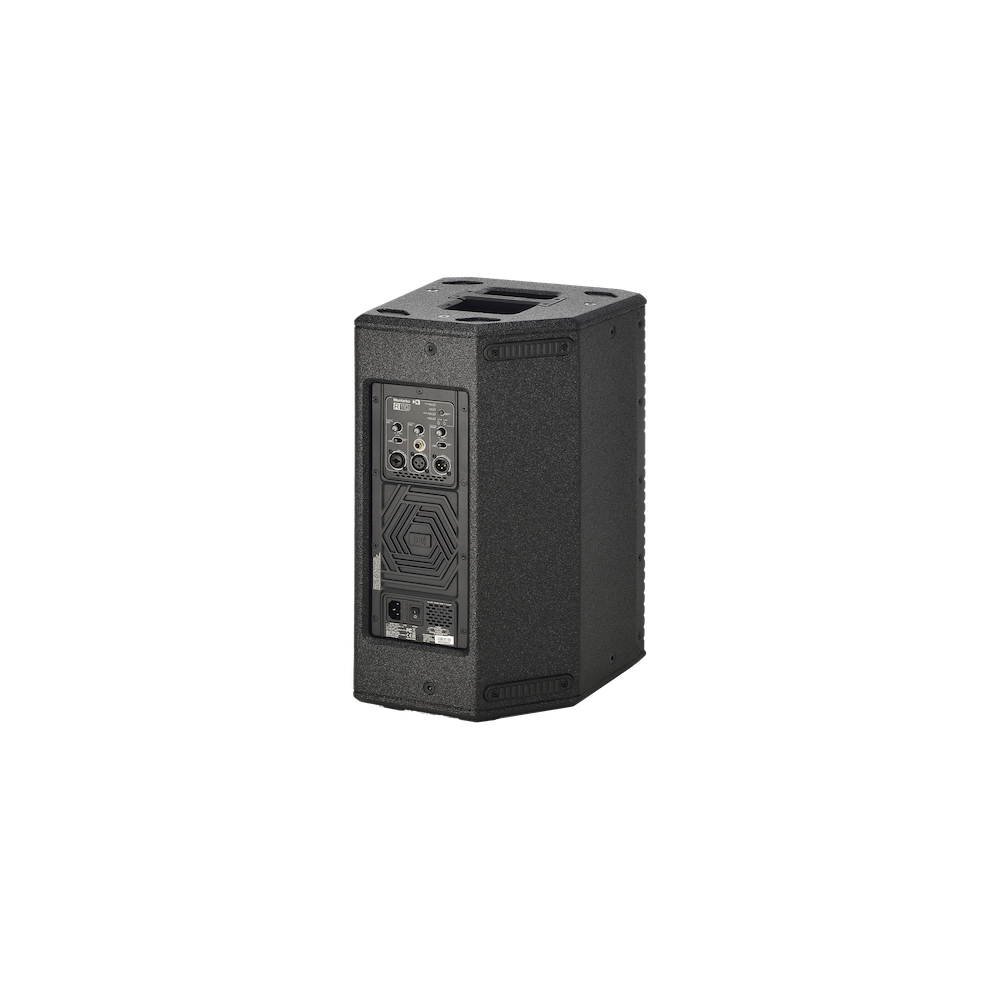

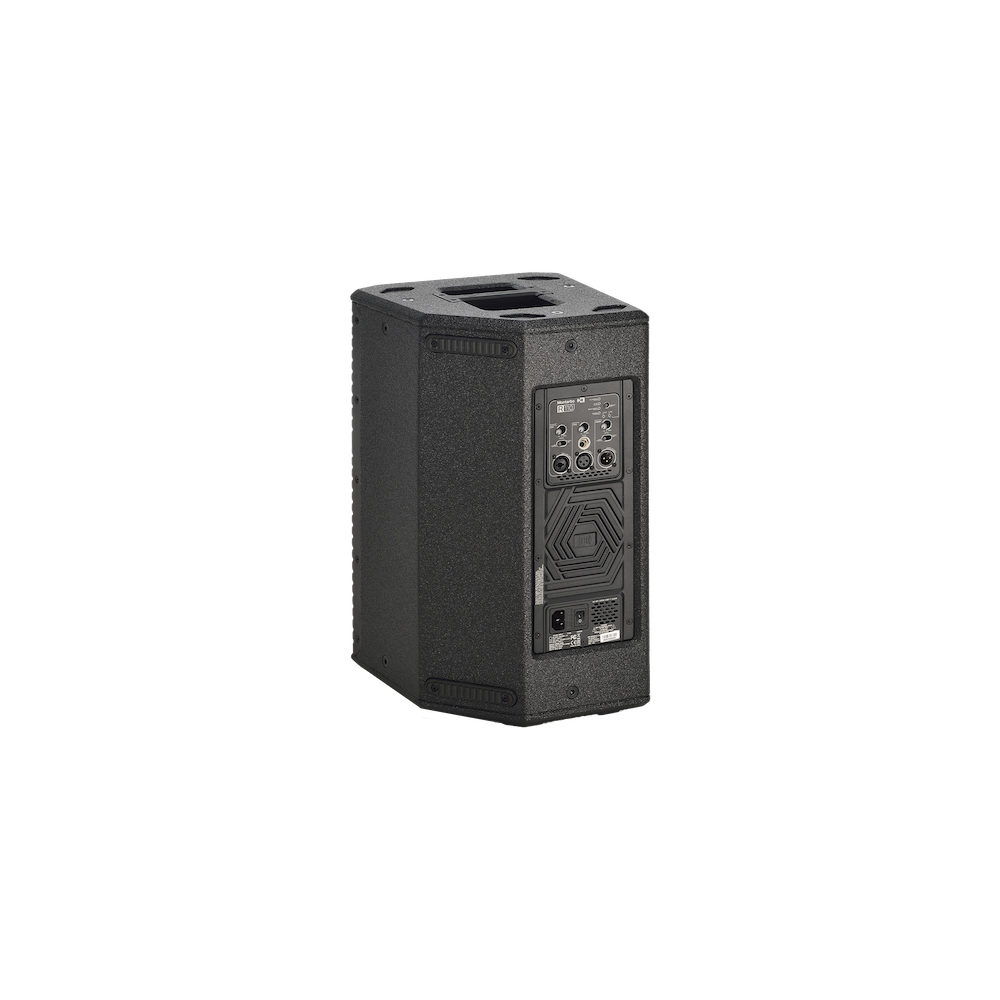

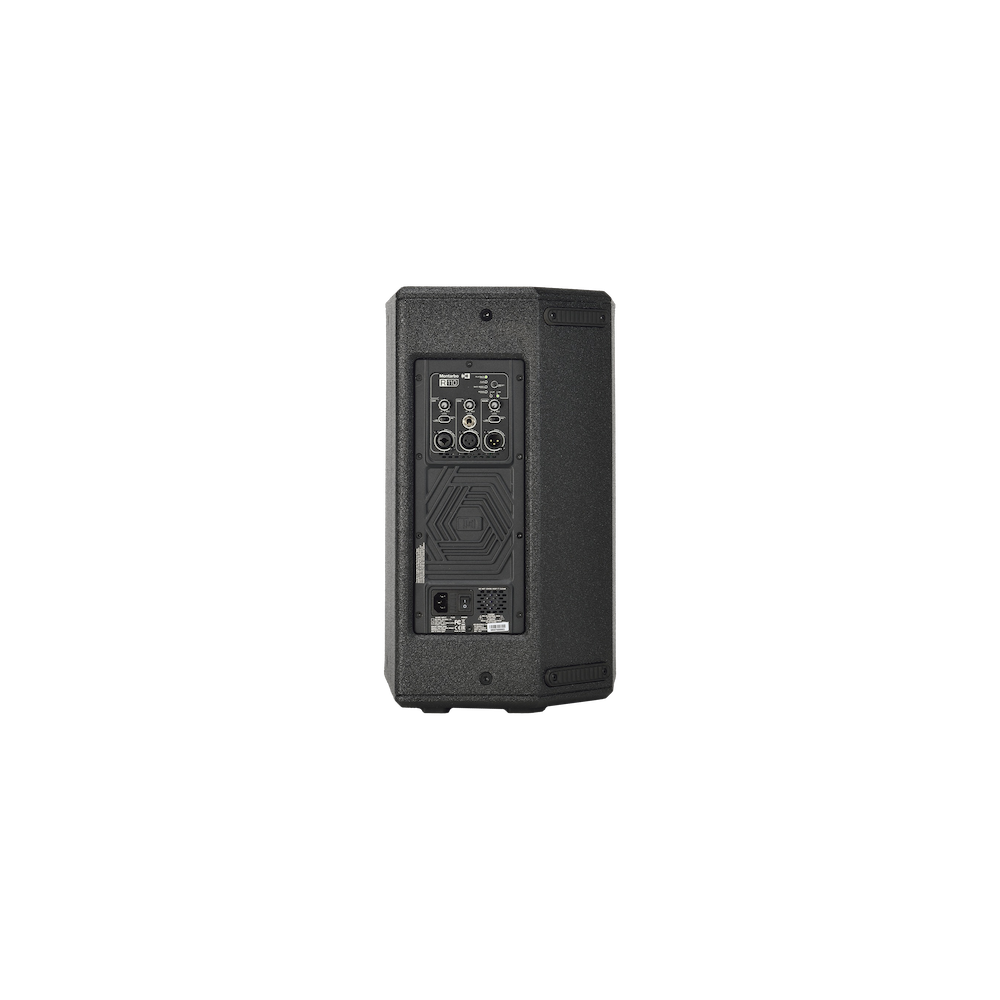

Connectors
Dimensions: W x H x D 304 x 505 x 305 mm [11.9" x 19.9" x 14,4"]
Weight: 12.7 kg [28 lb]
Cabinet: Multilayer wood with polyurea finish
