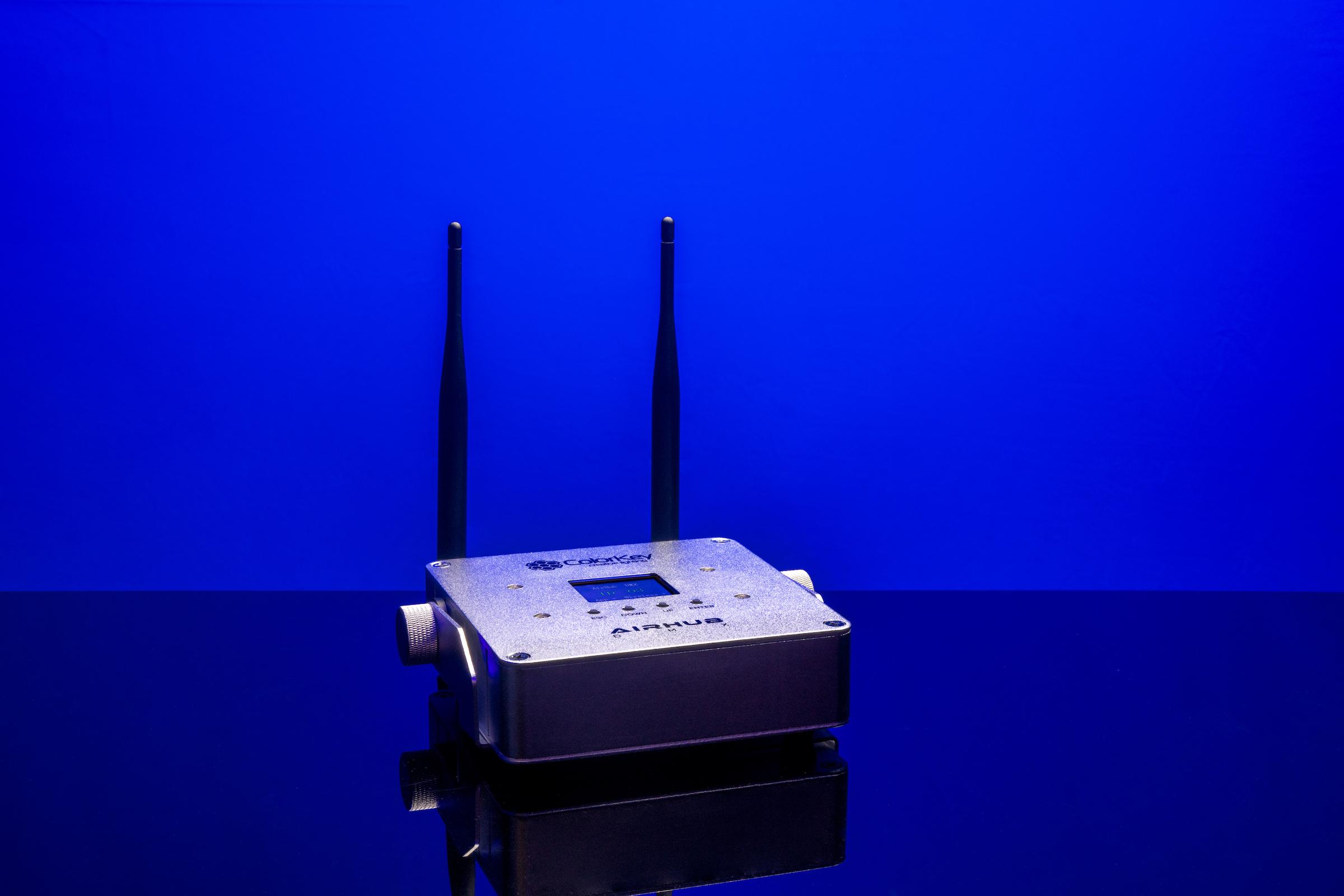

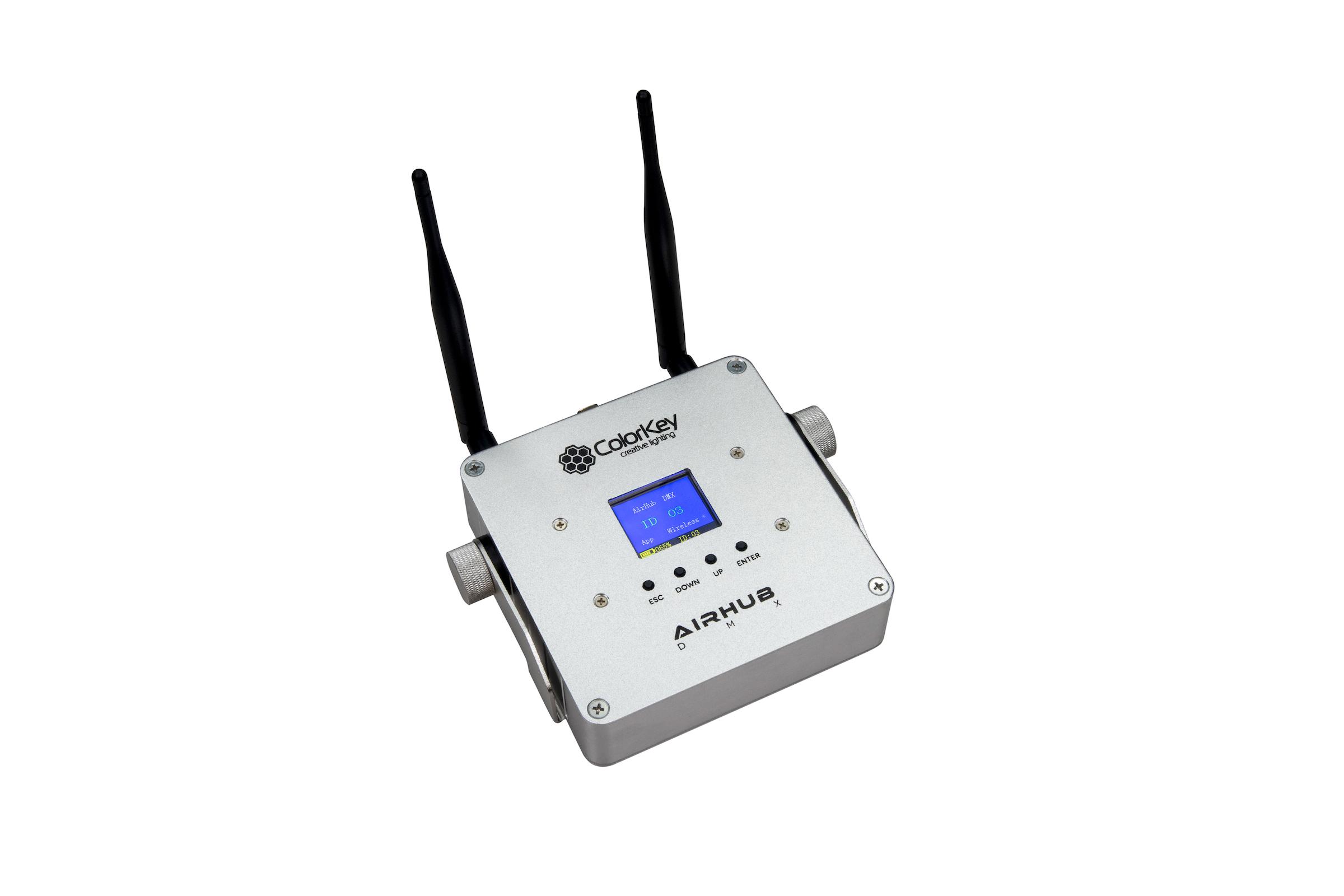

ColorKey AirHub DMX

The ColorKey AirHub DMX is a battery-powered Wi-DMX transceiver designed to work with the ColorKey Air Series fixtures including AirPar HEX 4 and AirBar HEX 6. It offers four convenient methods for controlling your AirSeries fixtures: Stand-alone; using the AirApp for iPhone and iPad; as a wireless transmitter for DMX controllers; or as a wireless receiver for traditional DMX fixtures.In stand-alone mode, the onboard menu is used to set the Air Series fixtures' auto programs, fades, color presets, or switch them to sound active mode. The AirHub features different programs for RGBW and RGBAW-UV fixtures. It’s now easier than ever to fill a room with color by simply setting all the Air Series fixtures to the same wireless group ID and watching them automatically connect and synchronize.The AirHub can also generate a WIFI network for use with the optional app. The AirApp is a basic DMX controller in your pocket. It offers access to all the presets found on the AirHub, plus a color wheel with dimmer and 16 DMX channel faders.This powerful control hub can also transform your existing wired fixtures and controllers into a fully wireless system. It functions as a transmitter for any standard DMX512 controller, or as a receiver for lighting fixtures. It can also transmit Wi-DMX to most 2.4Ghz enabled fixtures outside of the Air Series ecosystem.The AirHub features a rechargeable lithium-ion battery for a completely untethered experience. The battery can power the unit for up to 20 hours from a full charge. A universal power supply with an input voltage range of 100-240 is also included.The AirHub features a built-in mounting bracket with adjustable angle, which also doubles as a kick stand. This gives you a variety of mounting options to use the AirHub handheld, on a desktop or controller, or mounted to truss when using as a receiver for your traditional DMX fixtures.Features

• Battery powered Wi-DMX transceiver works either as a transmitter or receiver
• Connect and synchronize an unlimited number of Air Series fixtures and receivers
• Also controls most 2.4GHz wireless lighting fixtures, such as the (ColorKey MobilePar Mini HEX 4)
• Create different lighting environments with up to 16 wireless groups
• Quick access to preset colors, fades, and sound active mode from on-board display.
• Optional AirApp for iPhone and iPad provides access to all presets, a color wheel, and 16 DMX channels.

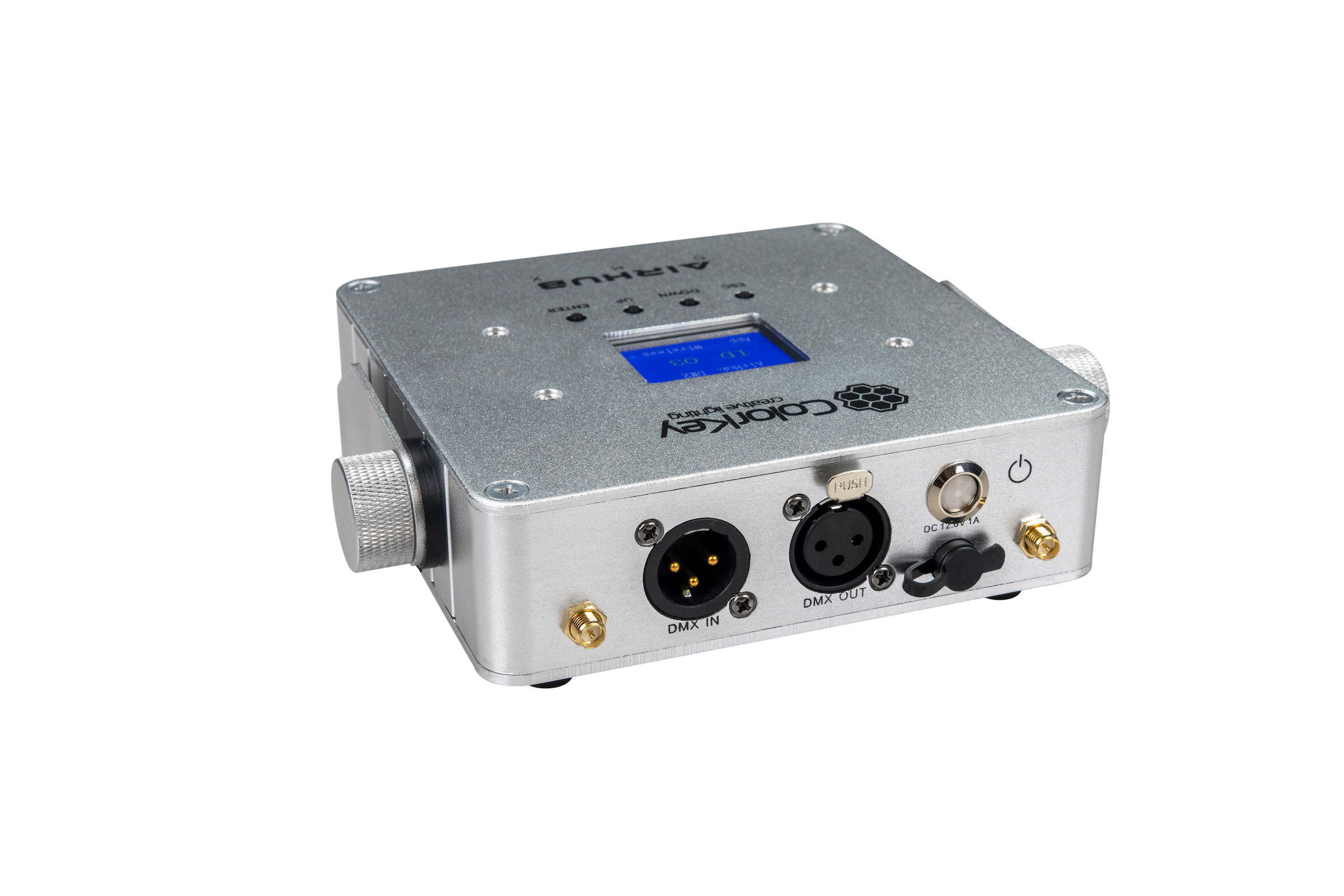

• 3-pin DMX in/out to connect to traditional fixtures and controllers

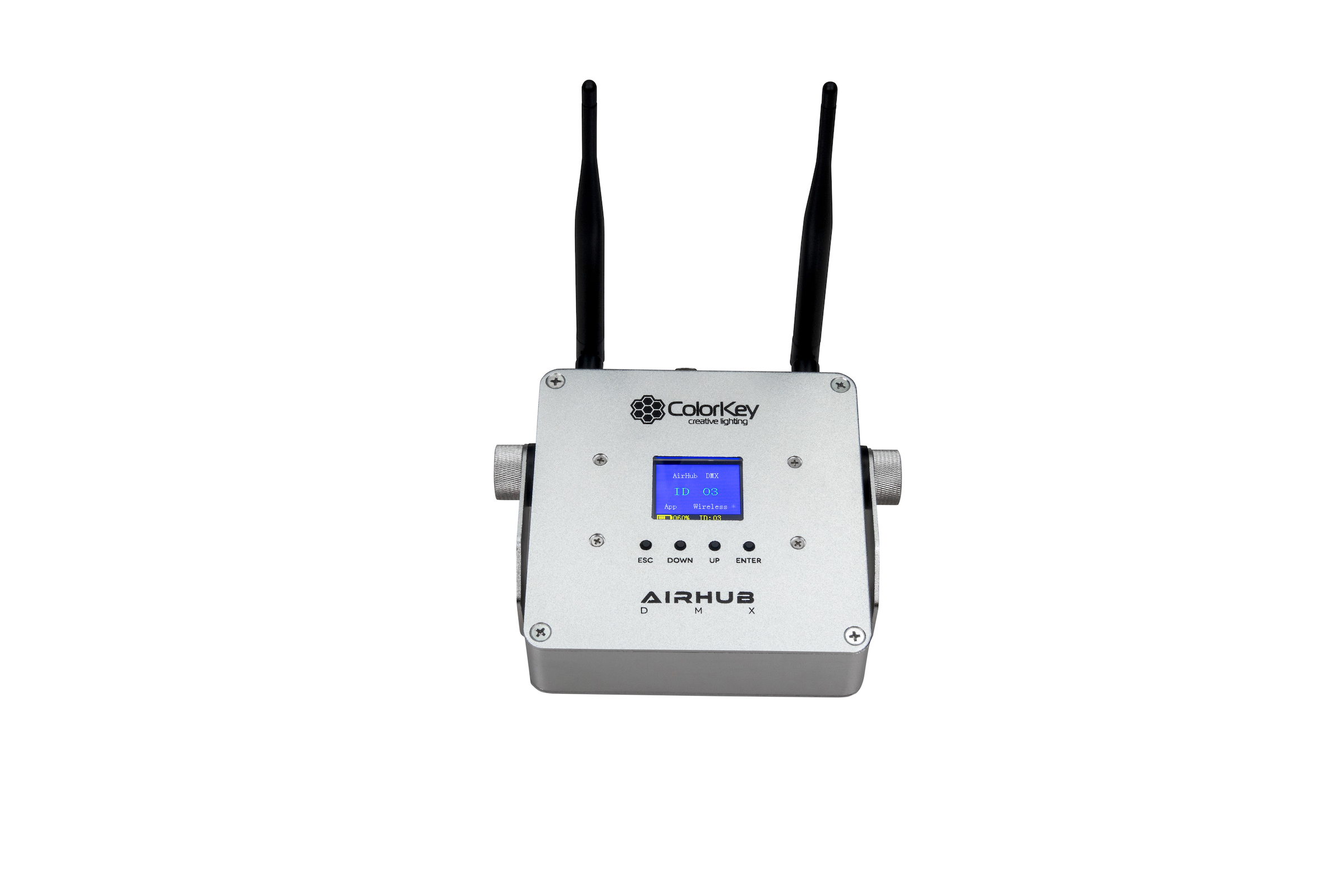

• Large color OLED display for ease of use and readability in dark environments
• Up to 20 hours of battery life for uninterrupted use

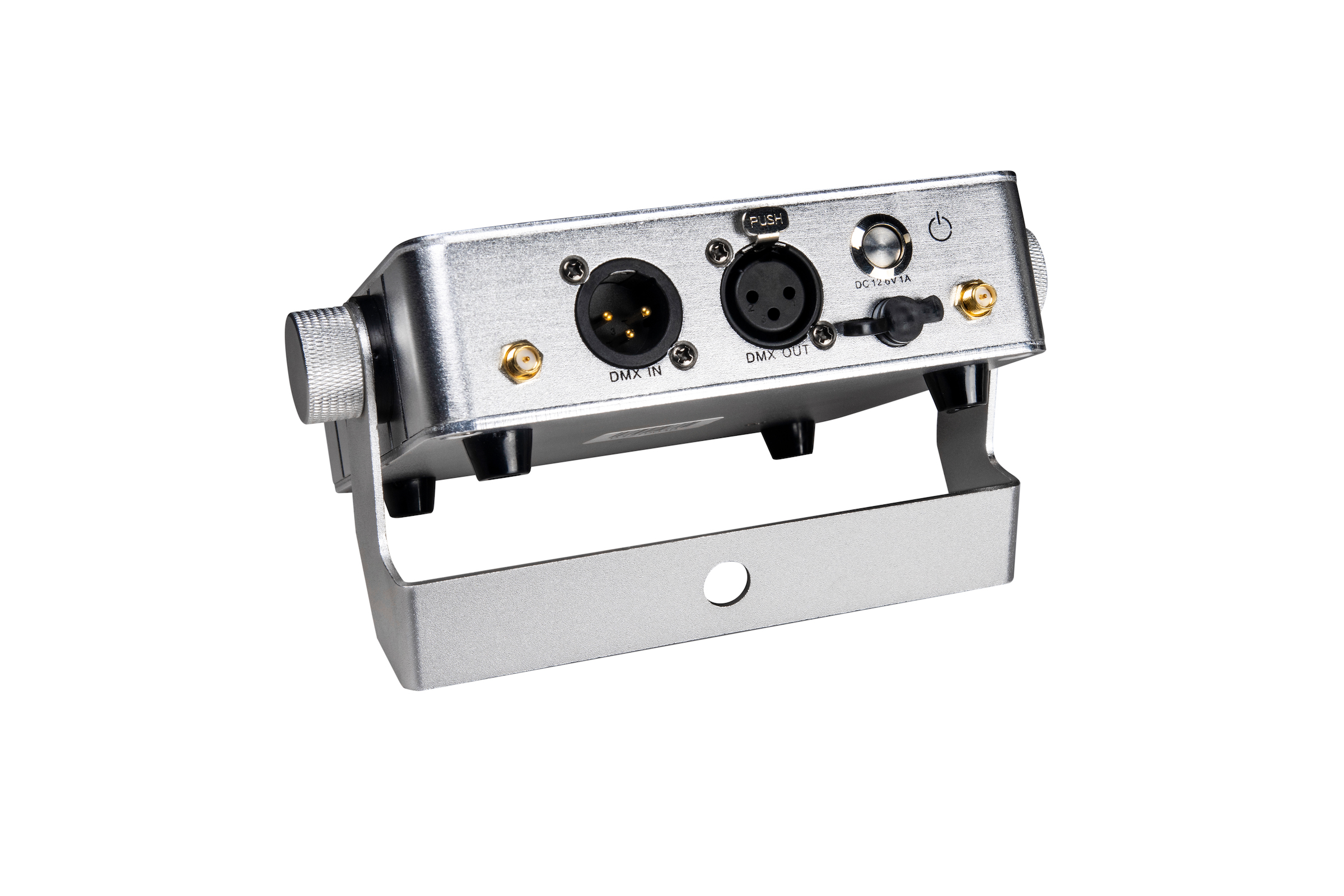

• Includes mounting bracket to hang from truss when using as receiver for wired lights

Specifications

• 2.4Ghz Wireless DMX Transmitter and Receiver
• 16 wireless group ID’s
• 15 static color presets
• Auto mode (color chase) with 15 speeds
• Fade mode with 15 speeds
• Sound active mode with sensitivity adjustments
• Control modes: Wi-DMX, DMX 512, Stand Alone, Mobile App
• Lithium-Ion battery (+/-) 20 hours working time, (+/-) 5 hours charge time
• Power Consumption: 11.7W
• Power supply: 12.6V 1A; AC100-240V; 50-60Hz
• Working temperature: up to 40ÀöC
• Product size: 5.5 x 5.5 x 3.5 in
• Net Weight: 1.6 lbs
