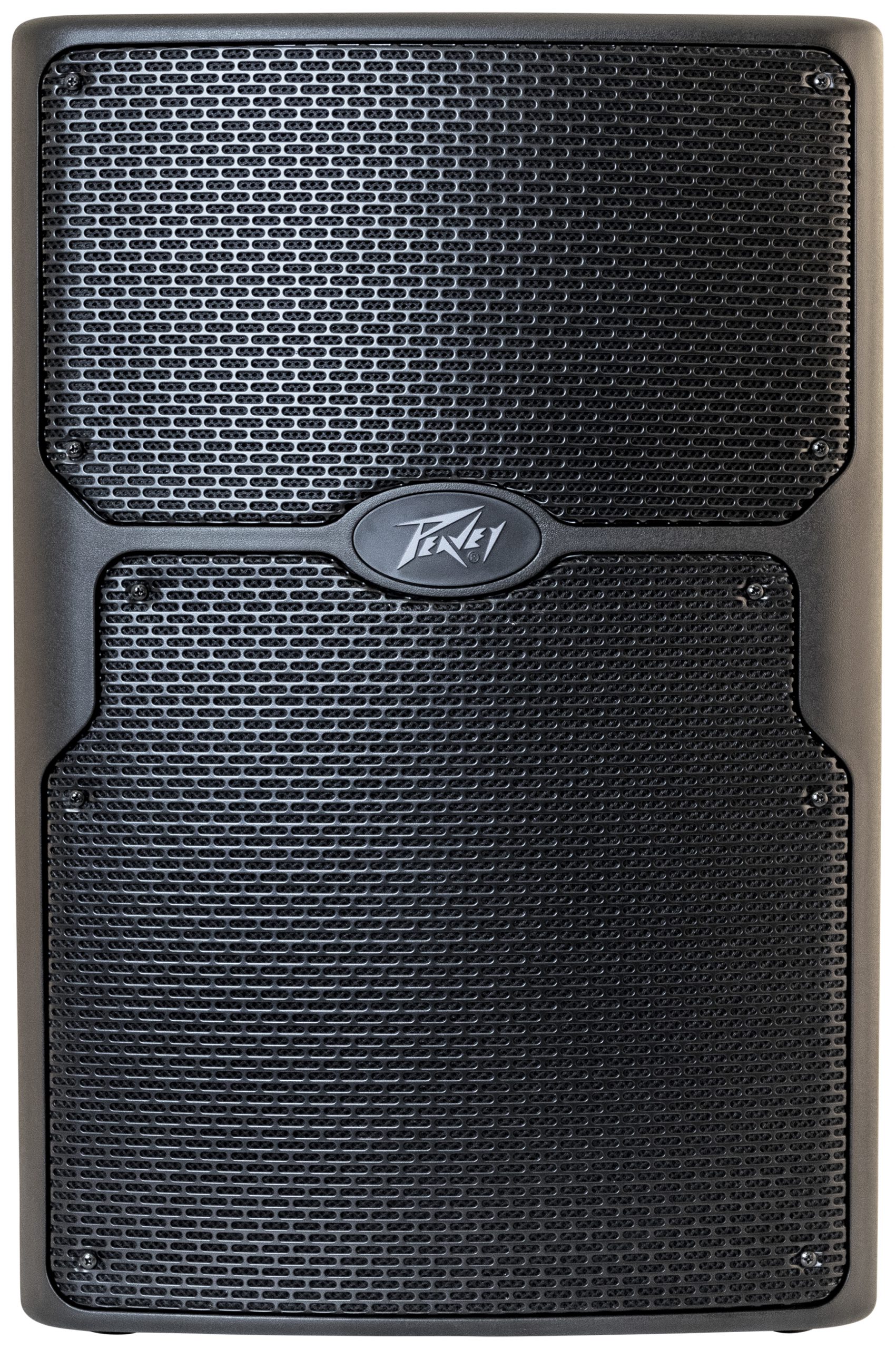

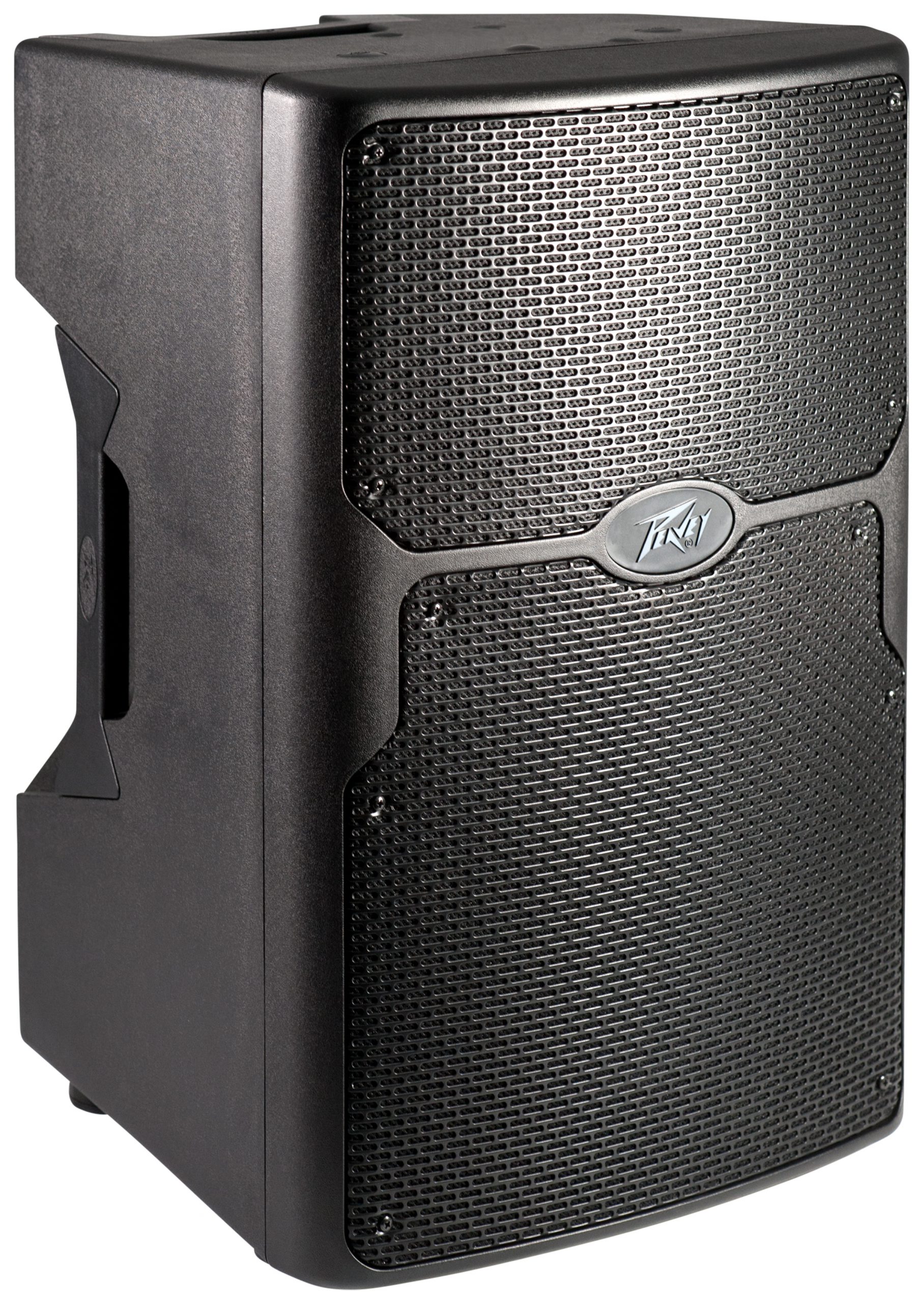

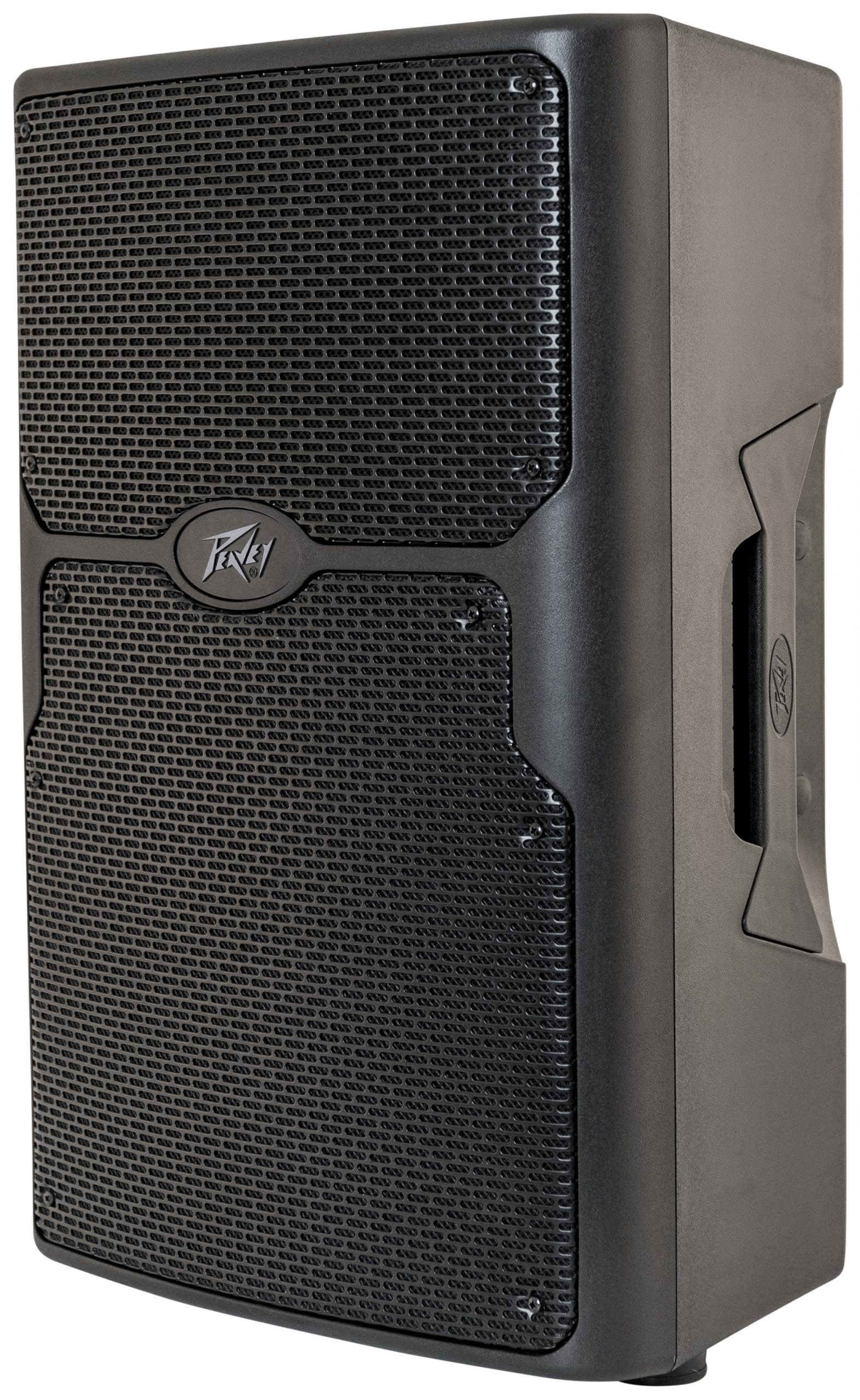

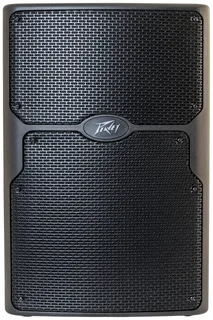

Peavey PVXp 12 Bluetooth 120US

The PVXp 12 Bluetooth® features a reliable bi-amped power section that provides a total of 980 Watts of peak dynamic power with DSP based compression and limiting. This enclosure features a 12" heavy-duty woofer with a 2-3/8′′ voice coil and 50 ounce magnet, and the RX 14 compression driver with a 1.4′′ Titanium diaphragm on a 100° horizontal x 50° vertical pattern asymmetrical horn.

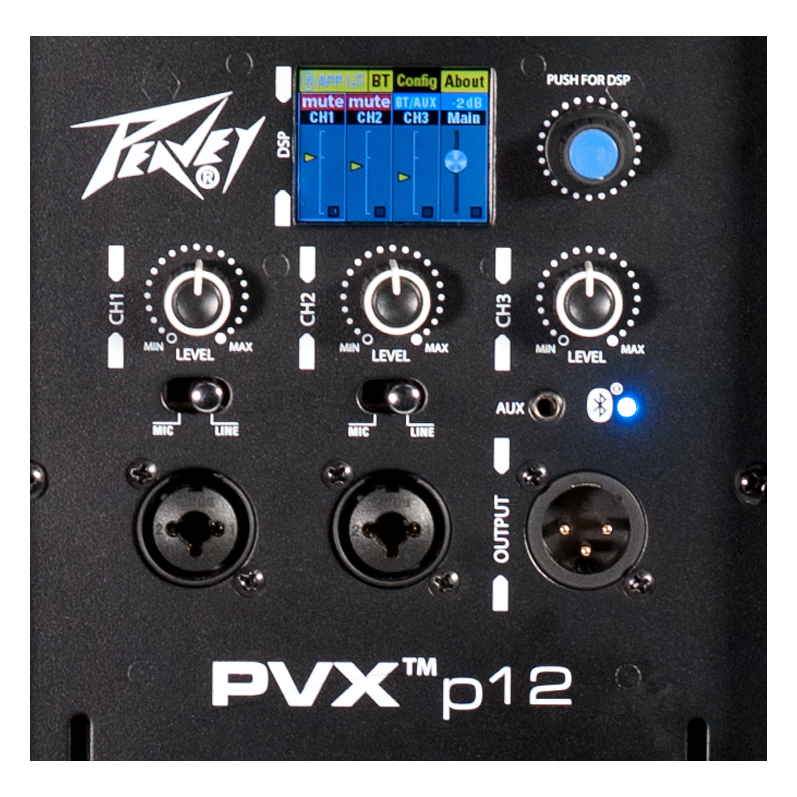

The PVXp 12 Bluetooth provides two channels with a balanced input via a combination jack that accepts balanced TRS 1/4′′ input as well as a balanced XLR input. A switch is provided to change between line level gain and mic level gain. A third channel is for a Bluetooth source, or alternatively a 1/8" AUX input jack. Each channel has an adjustable level control and a three-band EQ section.

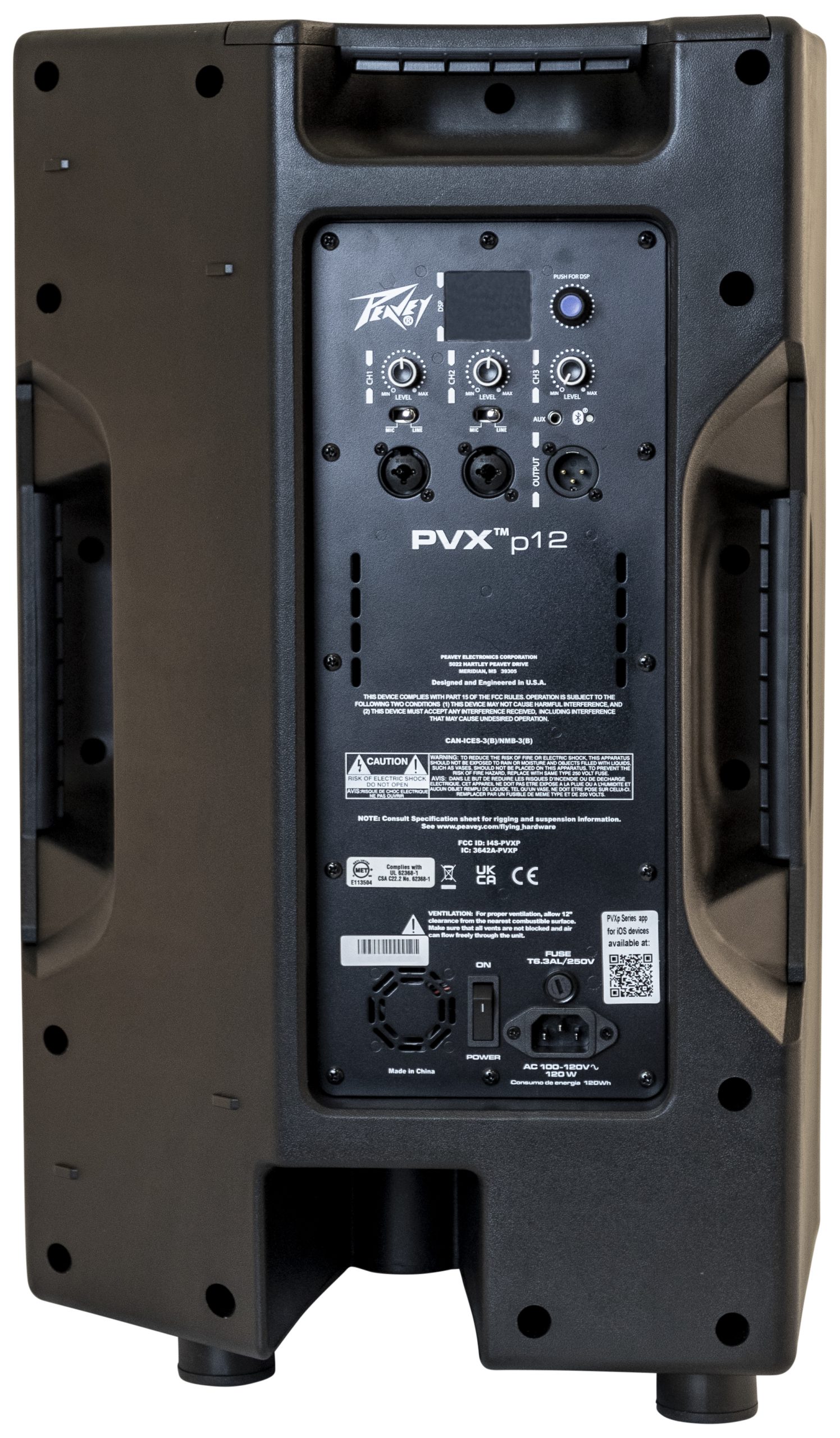

There is a balanced output, a male XLR, that can feed the mixed signals from the three channels out to another component.

A front baffle LED indicator that can be set to light when power is on, and when the "soft-limiting" DDT circuit is activated, or it can be turned off altogether. The LCD display and EQ presets, along with other DSP operating parameters are accessed via a one-knob selector or the iOS® Bluetooth Control App for iPhone® & iPad®.

Features PVXp 12 Bluetooth

• Two-way bi-amped sound reinforcement enclosure
• 12′′ heavy-duty woofer with a 2-3/8′′ voice coil & 50 oz. magnet
• RX 14 compression driver, with 1.4′′ Titanium diaphragm
• Reliable fan-cooled power amps with DSP protection
• Total of 980 Watts peak dynamic power
• DSP control for precise crossover, EQ and limiting functions
• Bluetooth input is via a dedicated input channel
• Mix/Thru output is via a male XLR jack
• Durable plastic injection-molded trapezoidal enclosure

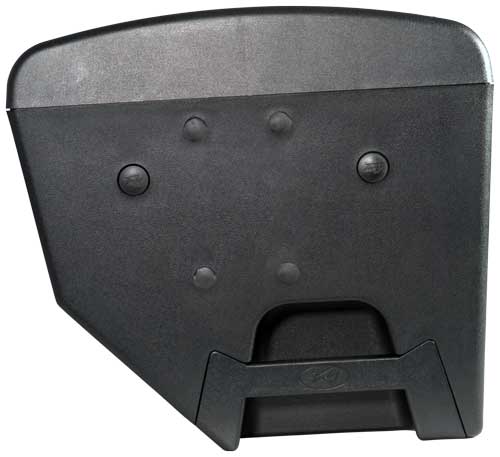

• Extra angled section on right side allows floor monitor use
• Pole mount molded-in for 1-3/8" diameter poles
• Top and bottom flying point inserts
• Full-coverage heavy-duty perforated steel grilles, with powder coat finish
• DSP I/O is at 48 kHz and 24 bits, internal processing is 56 bit double-precision
• Peavey's Quadratic Throat Waveguide technology, 100° by 50° coverage
• Asymmetrical horn aims the sound down 10°, at the audience, not over their heads
• Analog input is via a combo female XLR and 1/4" TRS phone jack with balanced input
• Three channels in total, two for analog, and one for Bluetooth or AUX input via a 1/8" jack
• Each channel has a level control and a 3-band EQ
• iOS Bluetooth Control App for iPhone & iPad

Technical Specifications

• Speaker Configuration: Bi-amplified 2-way
• Speaker Type: Powered
• DSP On-Board: Yes
• Bluetooth: Yes (Audio Streaming & Control)
• Power Program: LF - 375 W & HF - 50 W
• Power Peak: LF - 840 W & HF - 140 W
• Sensitivity (1W/1m): 97 dB
• Maximum SPL: 127 dB
• Speaker Frequency Response: 63 Hz - 20 kHz (±3 dB)
• HF Driver: RX 14 - 1.4" Titanium Diaphragma Compression Driver
• LF Driver: 2 3/8" Voice Coil , 12" Woofer
• Input Connectors: 2 x XLR-1/4" Combo & 1 x 3.5 mm Jack
• Output Connectors: 1 x XLR
• Suspension Points: 4 x M10 & 2 x VersaMount 70+
• Pole Mount: Yes
• Enclosure Material: ABS
• Net Weight: 42 lbs (19.1 kg)
• Product Height: 24.50" (622 mm)
• Product Width: 16.10" (409 mm)
• Product Depth: 15.00" (381 mm)
• AC Power Input: 100-120 VAC, 50/60 Hz & 220-240 VAC, 50/60 Hz version available
• SKU: 03620470
