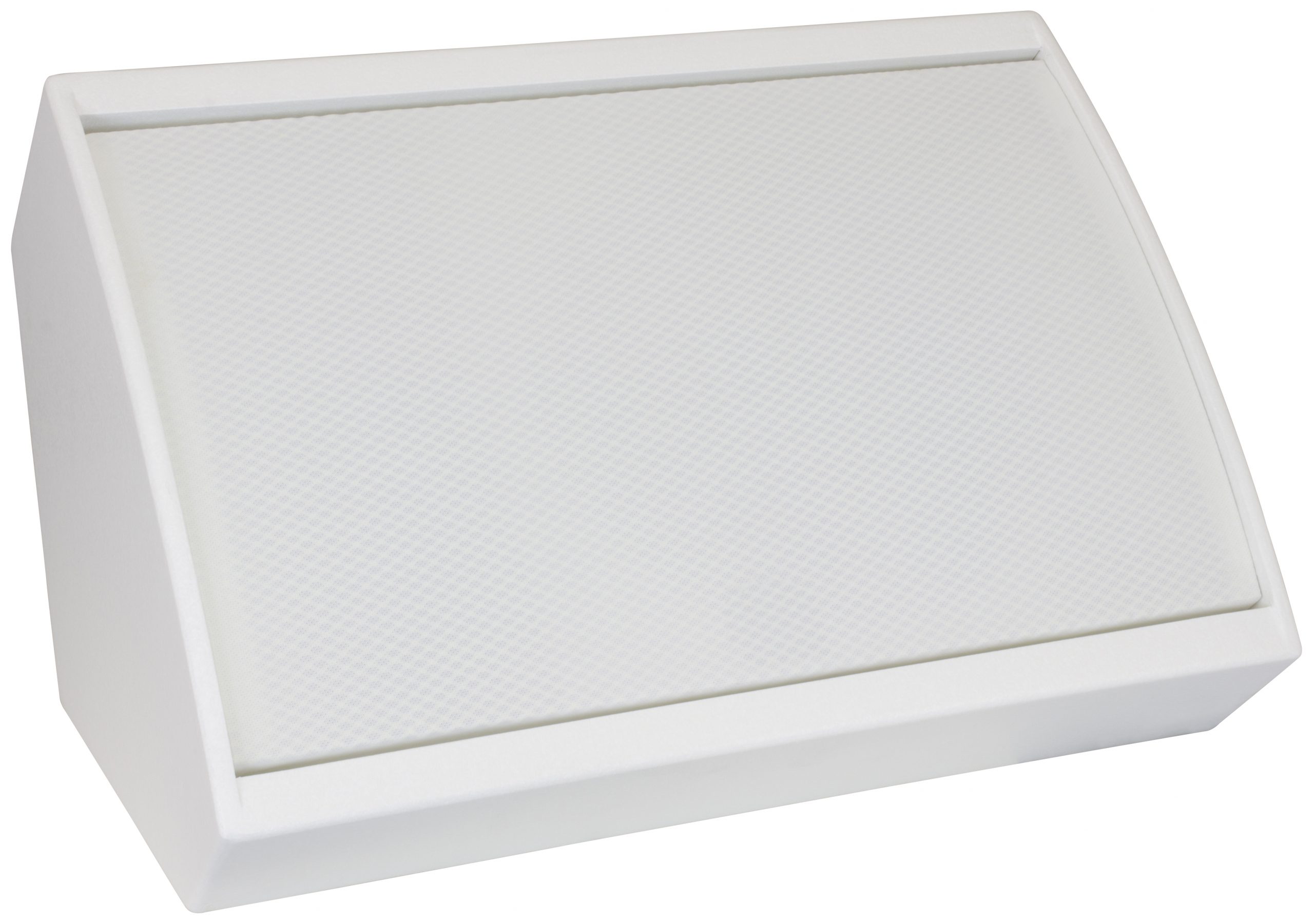

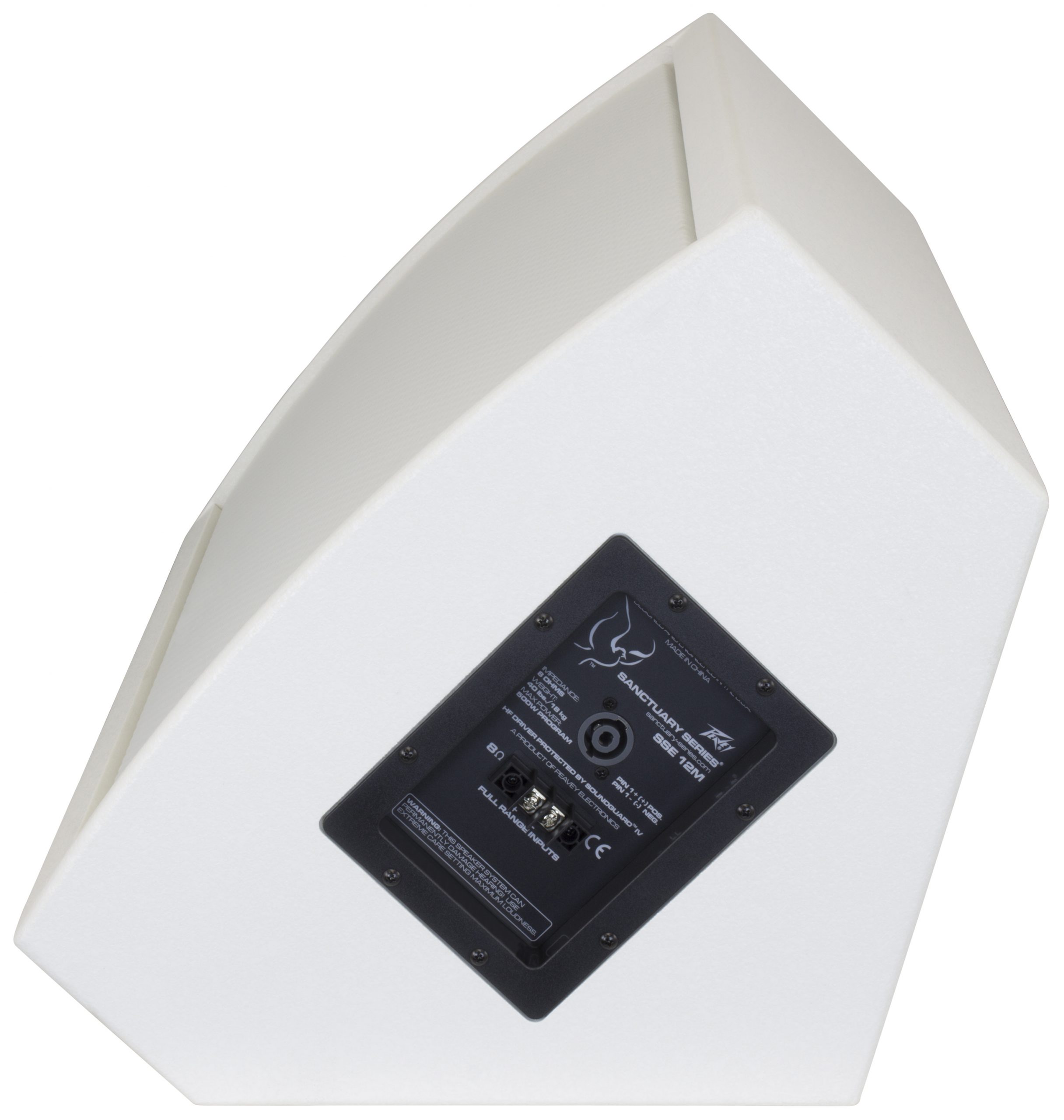

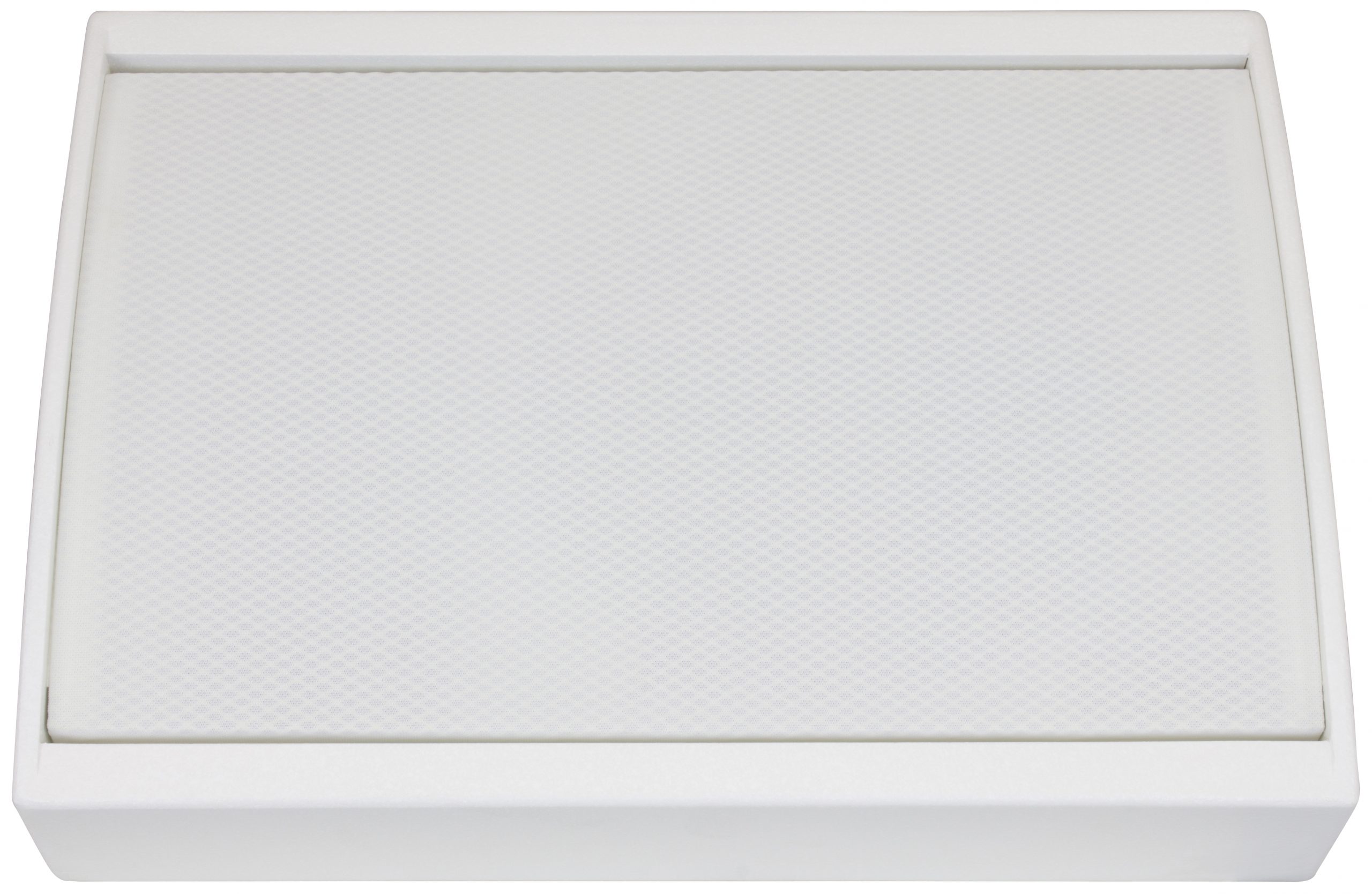

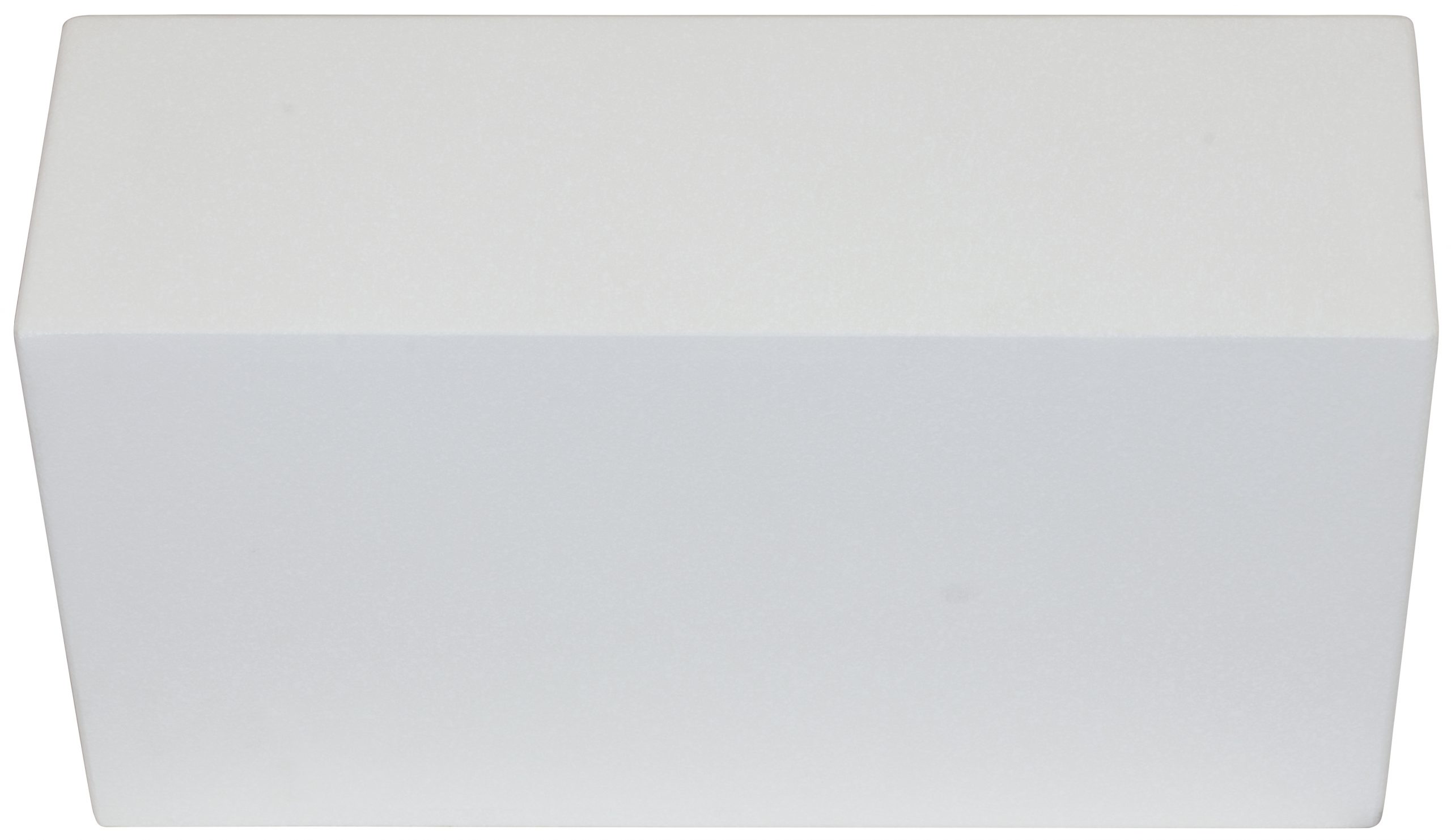

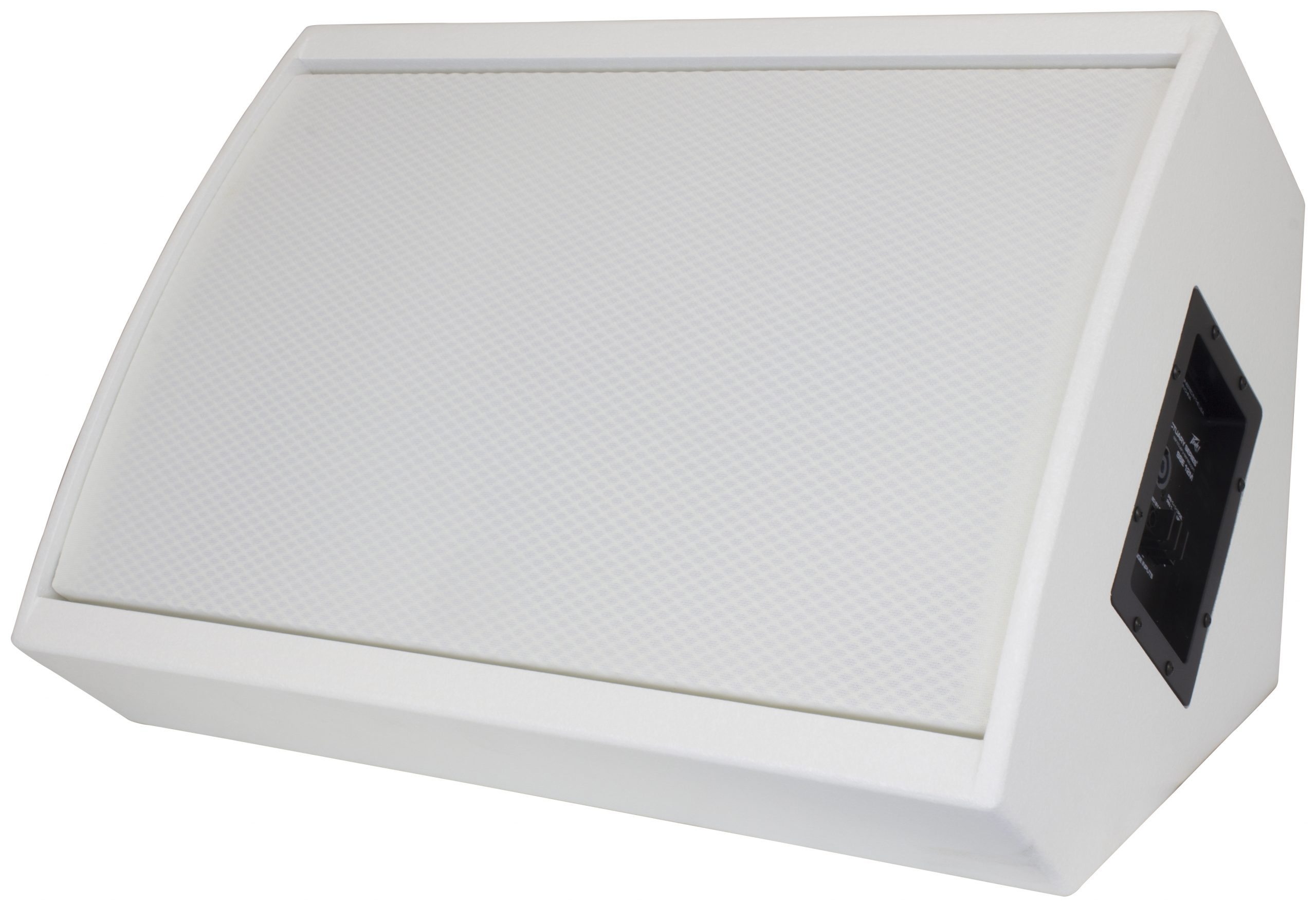

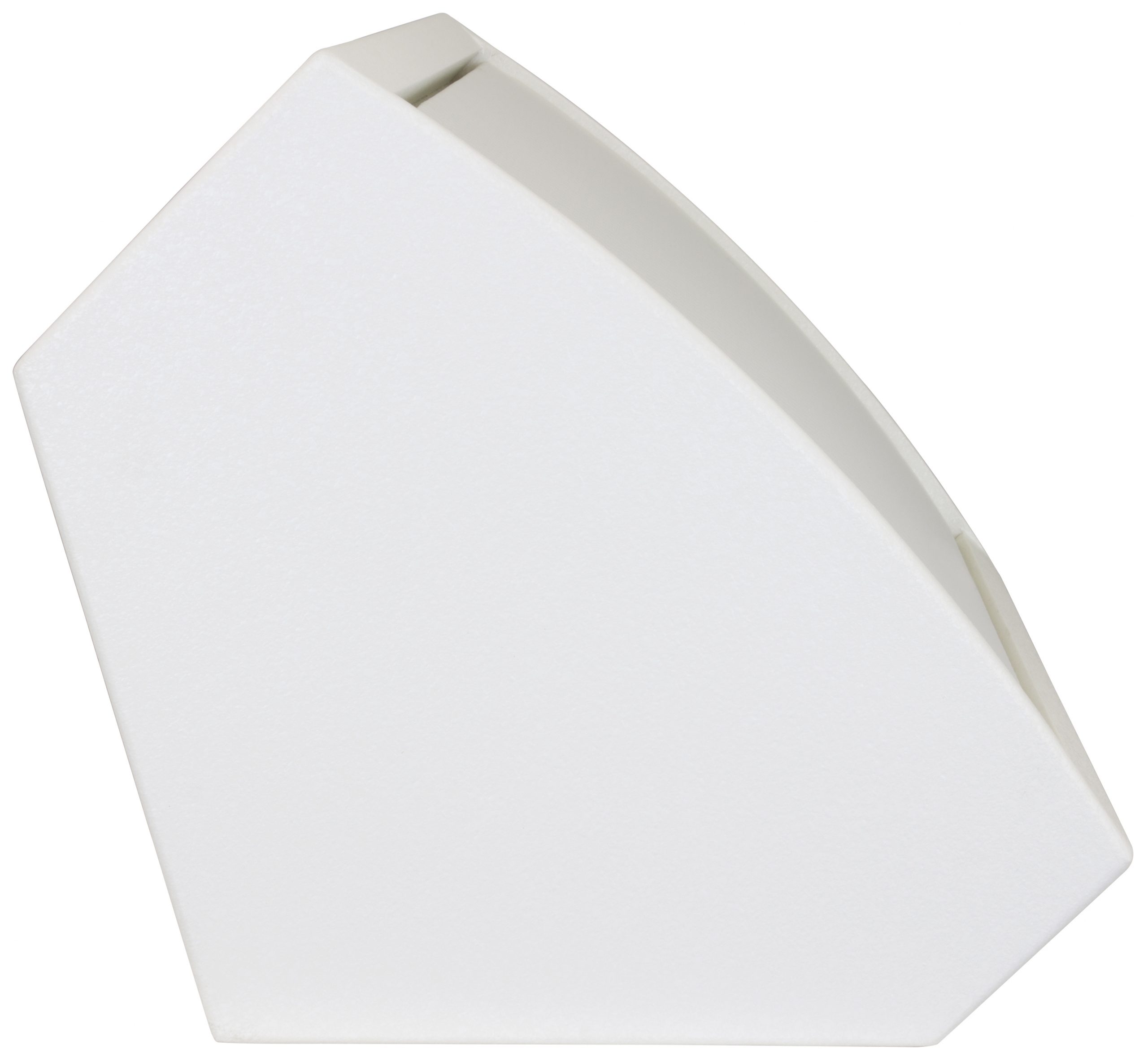

Peavey Sanctuary Series SSE 12M System - Off-White

The SSE 12M is a new low-profile monitor enclosure featuring high power ratings with custom components, a sleek look and a unique, snap-in metal grille.

The SSE 12M is a full-range, two-way system featuring the highly acclaimed Peavey 14XT titanium compression driver with the diverse Sound Guard IV tweeter protection network and Peavey Scorpion® Pro 1200+ 12′′ woofer with 2.5′′ (64 mm) voice coil for a smooth response.

The SSE 12M is rated at 500 Watts program and 1000 Watts peak. This lightweight speaker system may be placed on stage at angles of either 30° or 45° and is ideal for smaller venues where stage space is at a premium. Connections are made using a four-pin Neutrik® Speakon® or a paralleled two-position terminal block for additional cabinets.

Features SSE 12M

• Two-way sound reinforcement enclosure
• Peavey Scorpion Pro 1200+ 12′′ woofer with 2.5′′ (64 mm) voice coil
• Peavey 14XT titanium compression driver
• Sound Guard IV tweeter protection network
• Mounting point for VersaMount 70 bracket
• 12 mm Birch plywood construction
• Power Handling: 500 Watts program / 1000 Watts peak
• Frequency Reponse: 79 Hz to 17 kHz
• Sensitivity: 98 dB (1W/1m)
• Designed for permanent install
• Impedance: 8 Ω
• Color: Off-White

Technical Specifications

• Speaker Configuration: Floor Monitor 2-way
• Speaker Type: Non-Powered
• Power RMS: 250 W
• Power Program: 500 W
• Power Peak: 1,000 W
• Nominal Impedance: 8 Ω
• Sensitivity (1W/1m): 98 dB
• Maximum SPL: 128 dB
• Speaker Frequency Response: 79 Hz - 17 kHz (±3 dB)
• HF Driver: 14T - 1" Titanium Diaphragma Compression Driver
• LF Driver: 12" Woofer

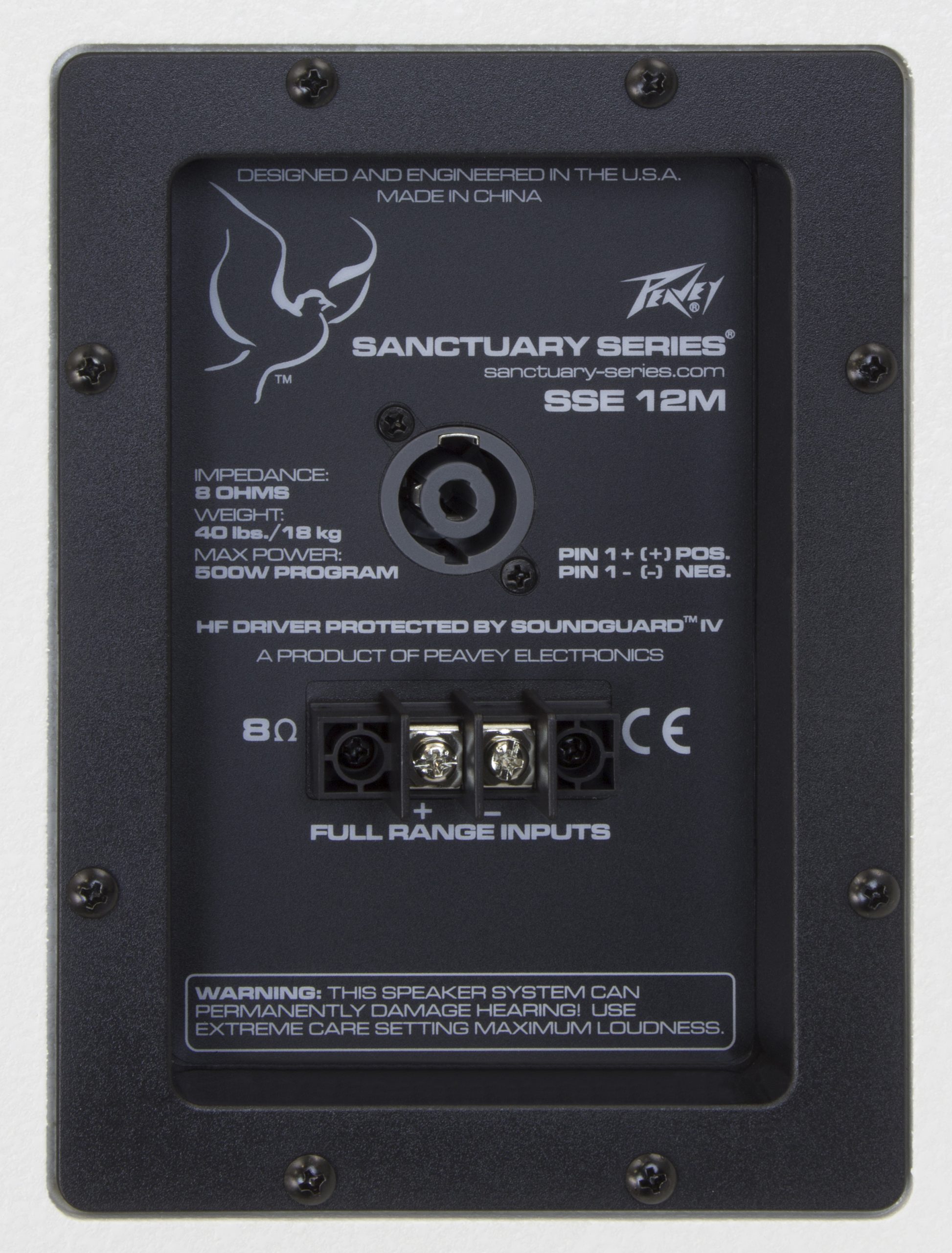

• Input Connectors: 1 x 4-pin Twist Lock & 2-pin Terminal Strip
• Enclosure Material: Birch Plywood
• Net Weight: 35.0 lbs (15.88 kg)
• Product Height: 15.22" (387 mm)
• Product Width: 24.50" (622 mm)
• Product Depth: 16.96" (431 mm)
• SKU: 00575500
