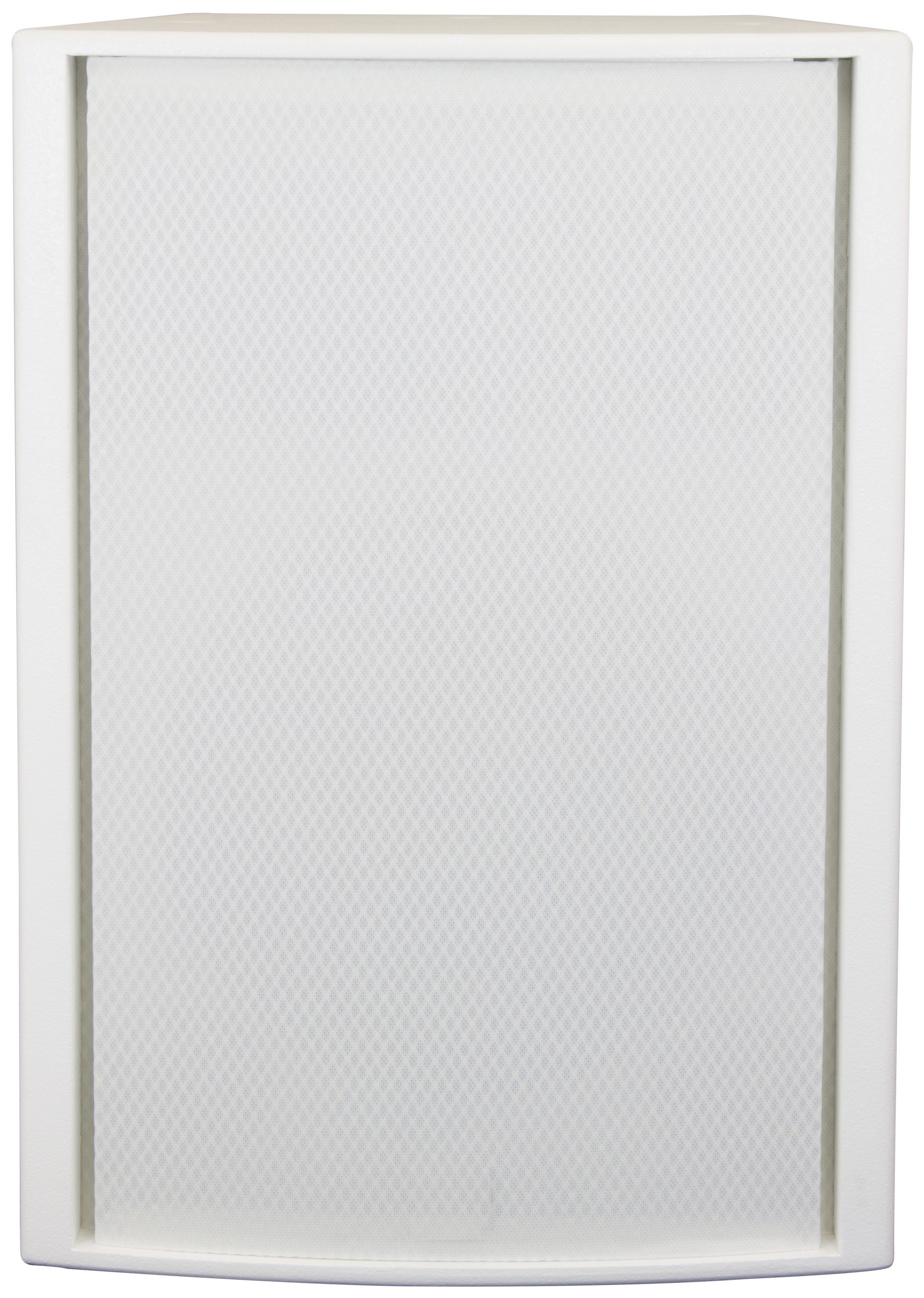

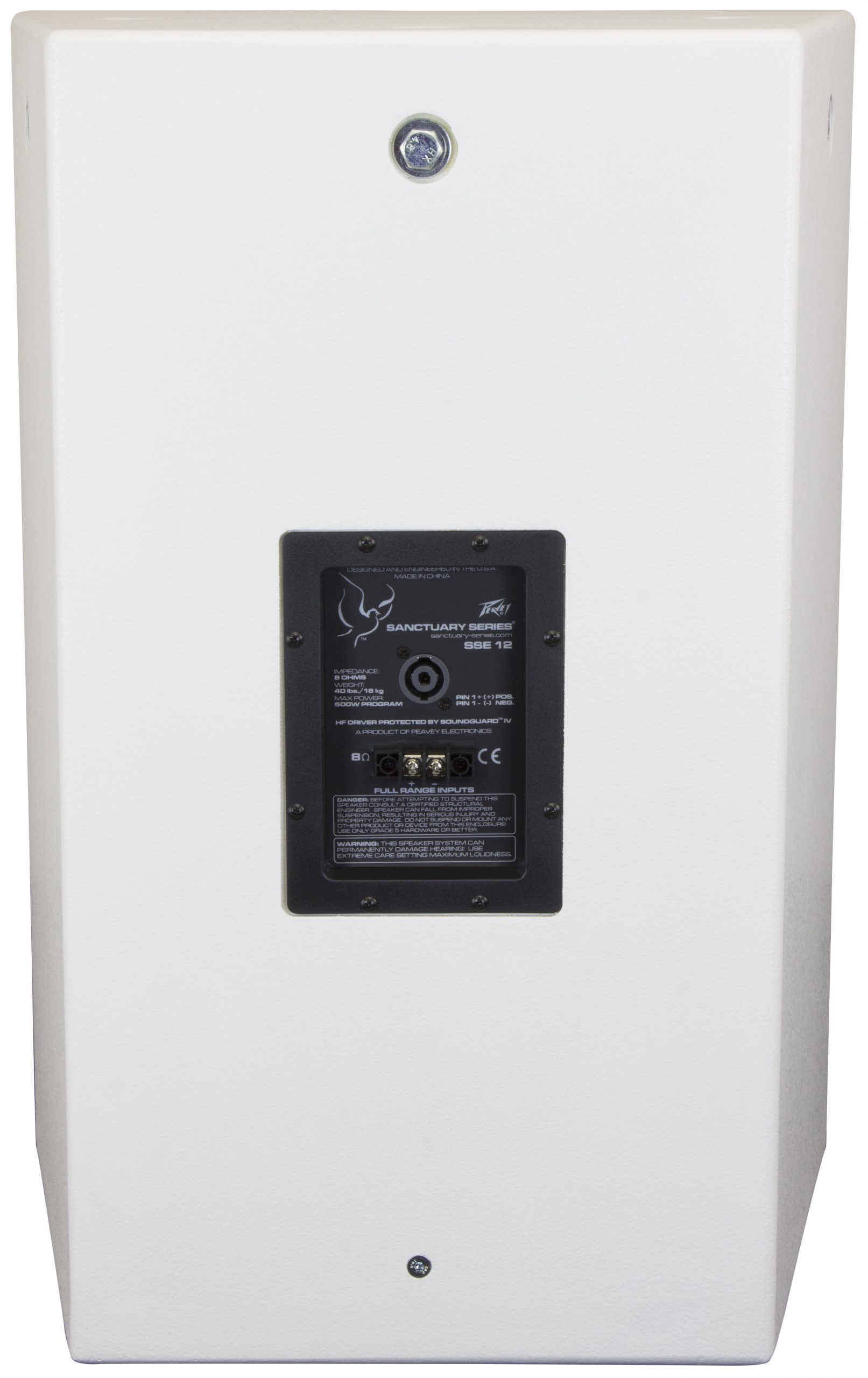

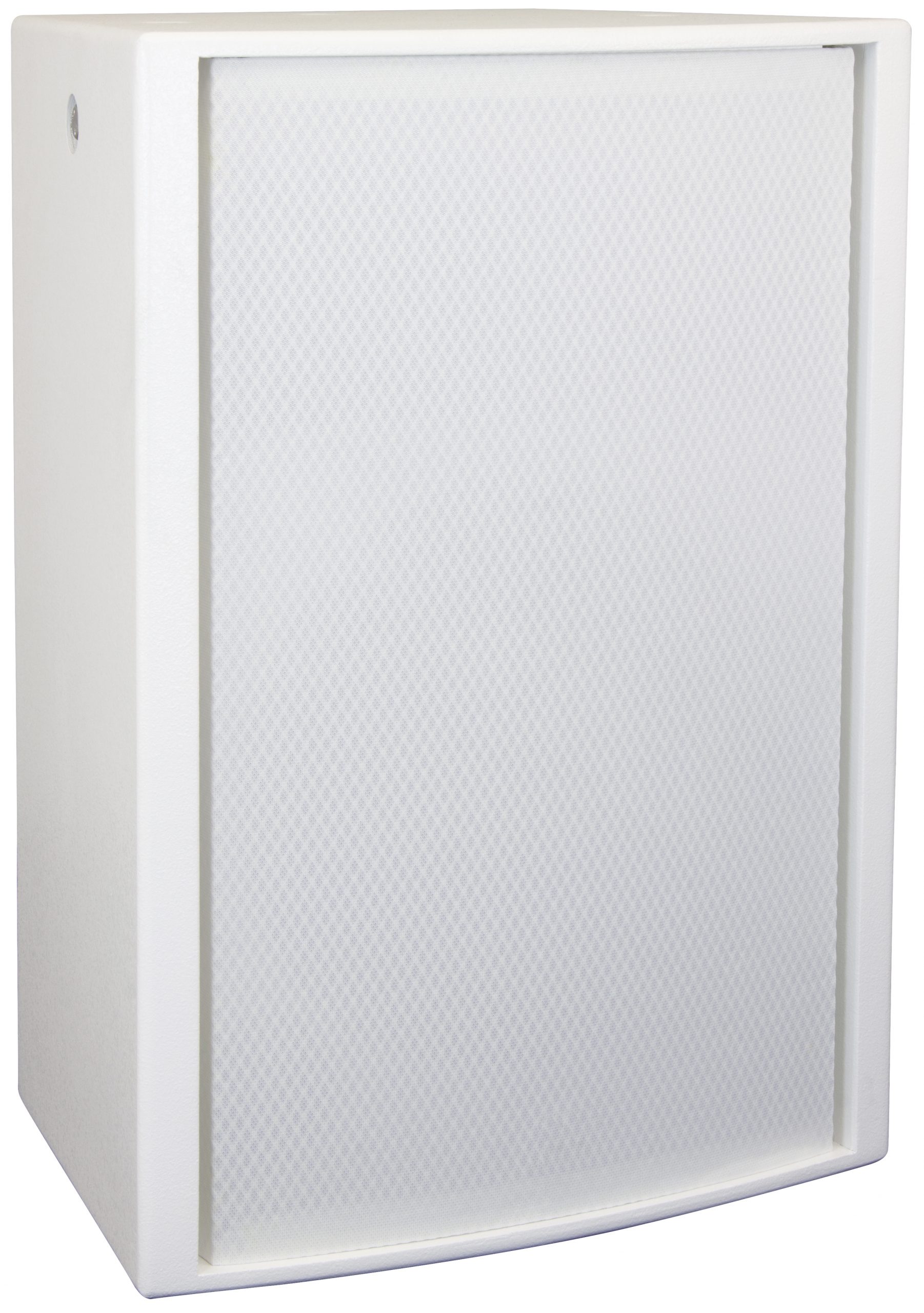

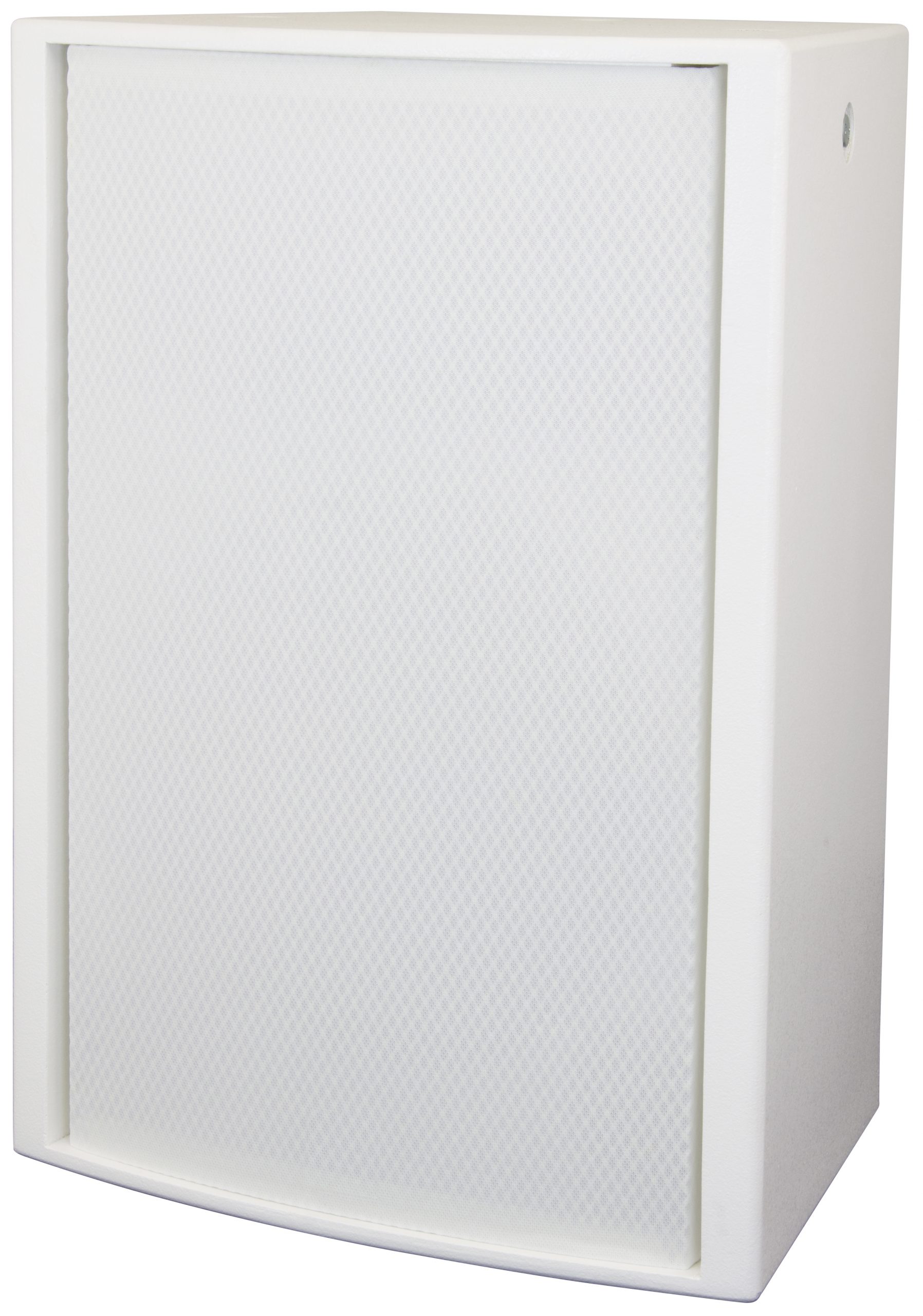

Peavey Sanctuary Series SSE 12 System - Off-White

The SSE 12 is a two-way system featuring the highly acclaimed Peavey 14XT titanium compression driver with the diverse Sound Guard IV tweeter protection network and Peavey Scorpion® Pro 1200+ 12′′ woofer with 2.5′′ (64 mm) voice coil for smooth response.

The SSE 12 is rated at 500 Watts program and 1000 Watts peak. This lightweight speaker system is ideal for smaller venues where space is at a premium. Connections are made using a four-pin Neutrik® Speakon® or a paralleled two-position terminal block for additional cabinets.

The SSE 12 incorporates flying points on the top of the unit and mounting points on the bottom for utilizing the Peavey VersaMount 70 mounting bracket.

Features SSE 12

• Two-way sound reinforcement enclosure
• Designed for permanent install
• Peavey 12′′ woofer with 2.5′′ (64 mm) voice coil
• Peavey 14T titanium compression driver
• Sound Guard IV tweeter protection network

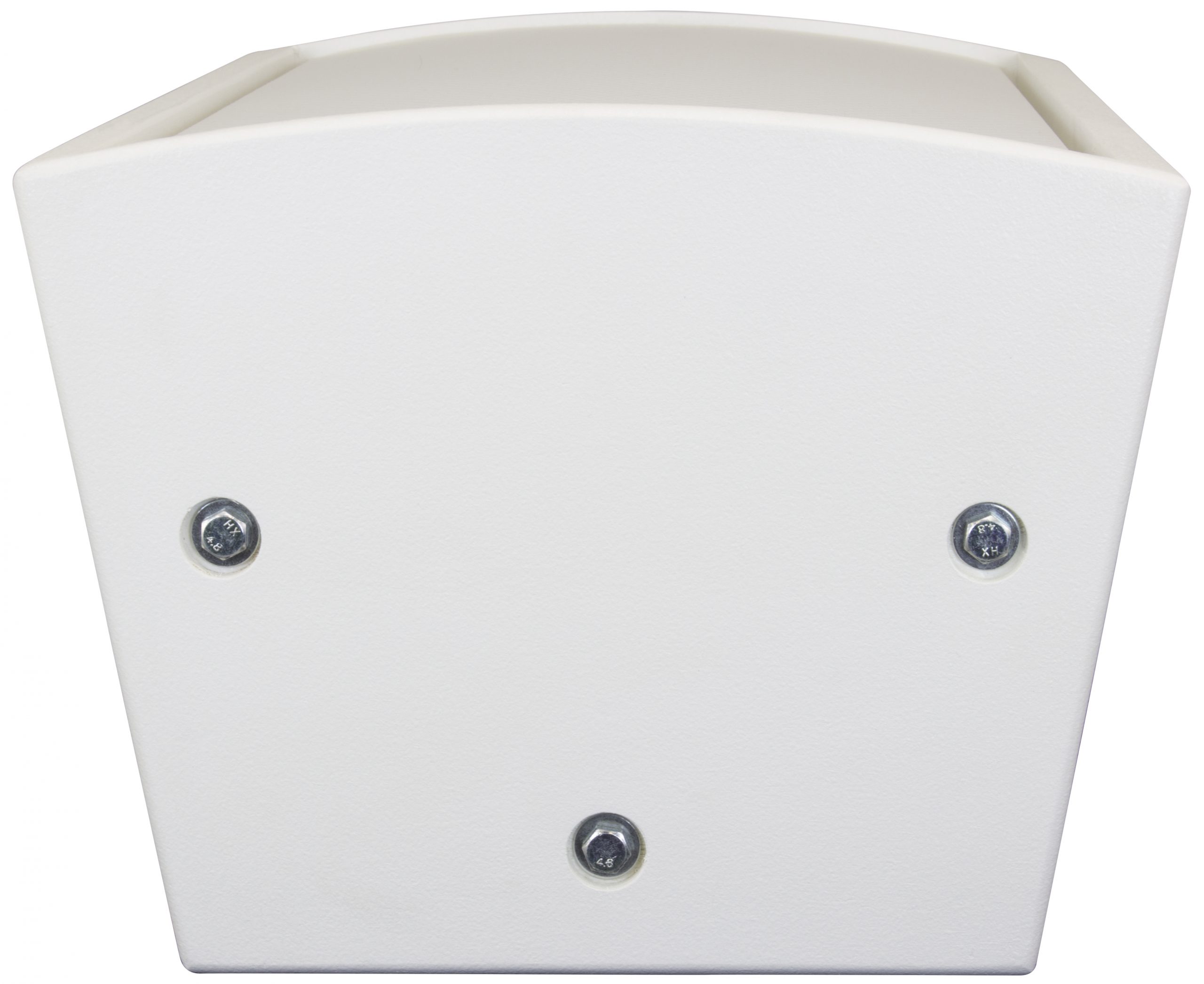

• Seven flying points (6 x M6 for suspension and 1 x M6 for angle adjustment)
• Mounting point for VersaMount 70 bracket
• 13 mm Birch plywood construction
• Power Handling: 500 Watts program / 1000 Watts peak
• Frequency Response: 79 Hz to 17 kHz
• Sensitivity: 98 dB at 1W/1m
• Impedance: 8 Ω
• Color: Off-White

Technical Specifications

• Speaker Configuration: Full Range 2-way
• Speaker Type: Non-Powered
• Power RMS: 250 W
• Power Program: 500 W
• Power Peak: 1,000 W
• Nominal Impedance: 8 Ω
• Sensitivity (1W/1m): 98 dB
• Maximum SPL: 128 dB
• Speaker Frequency Response: 79 Hz - 17 kHz (±3 dB)
• HF Driver: 14T - 1" Titanium Diaphragma Compression Driver
• LF Driver: 12" Woofer

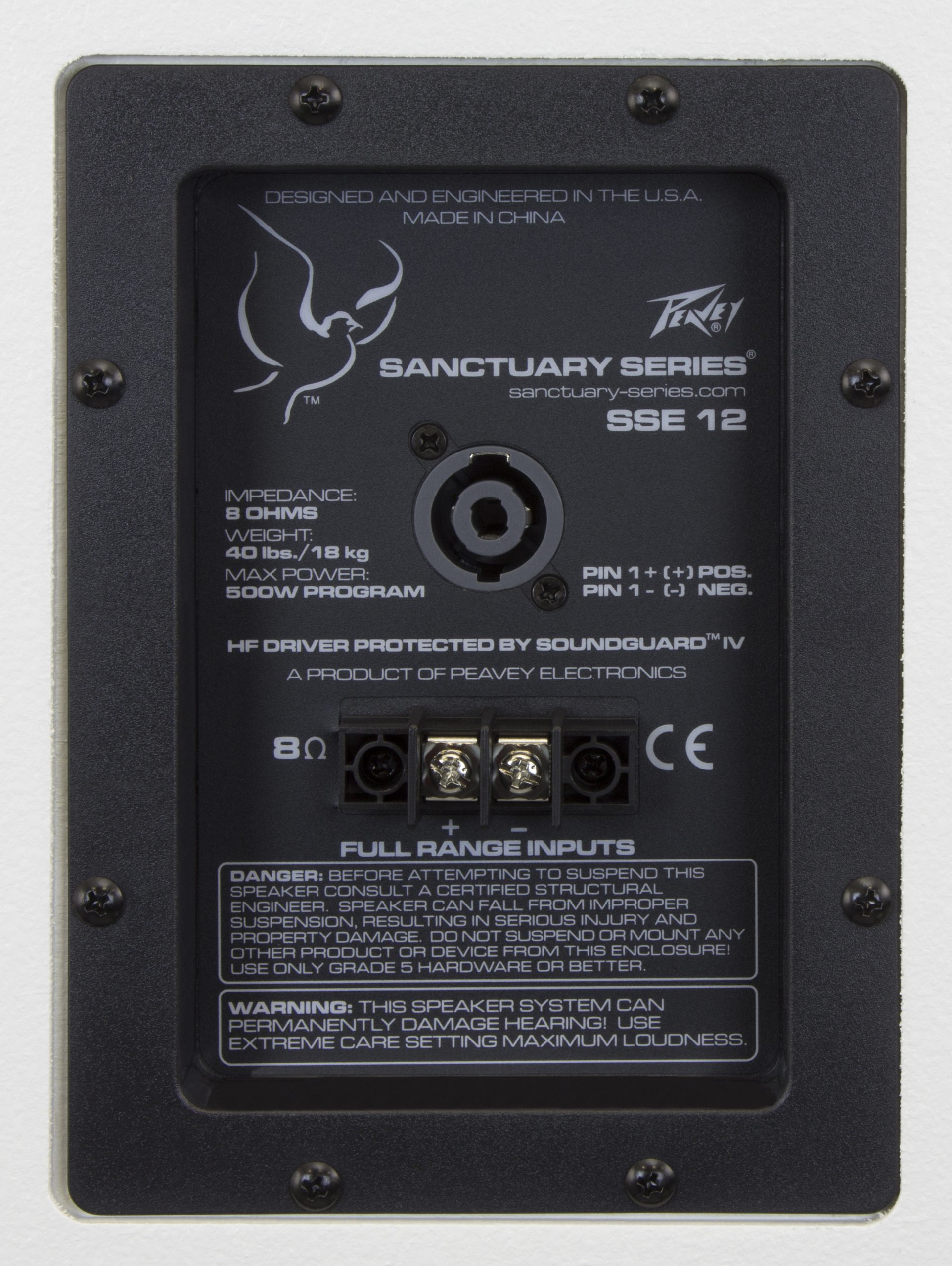

• Input Connectors: 1 x 4-pin Twist Lock & 2-pin Terminal Strip
• Suspension Points: 1 x M6 & 1 x Versamount 70 , 6 x M10
• Enclosure Material: Birch Plywood
• Net Weight: 40.0 lbs (18.10 kg)
• Product Height: 24.50" (622 mm)
• Product Width: 17.43" (443 mm)
• Product Depth: 13.20" (335 mm)
• SKU: 00575320
