Catalog item
Minibo 5M
Montarbo SKU 1701000005
Music Connections USA
Montarbo
MAP
$529.99
Overview
Product details
OVERVIEW

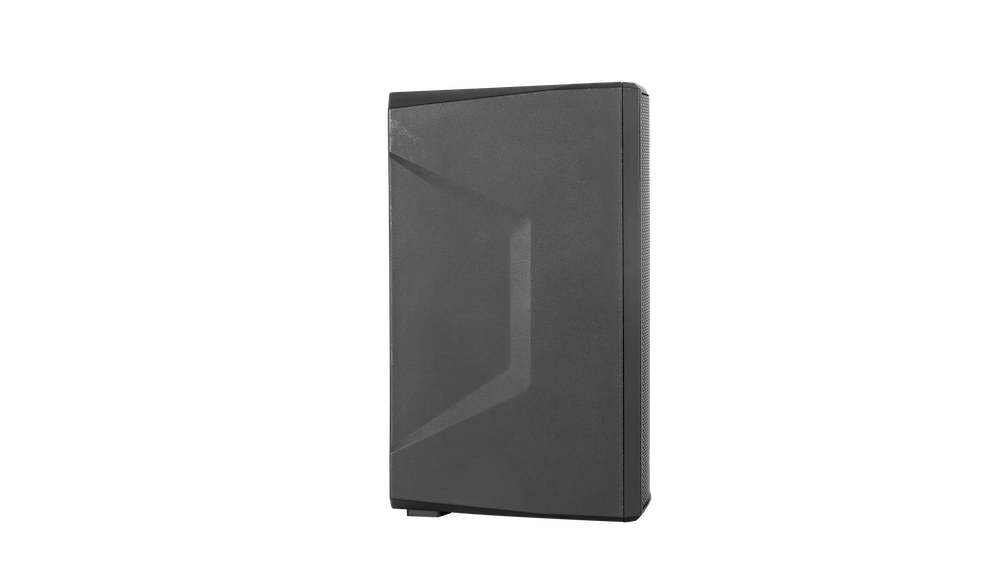

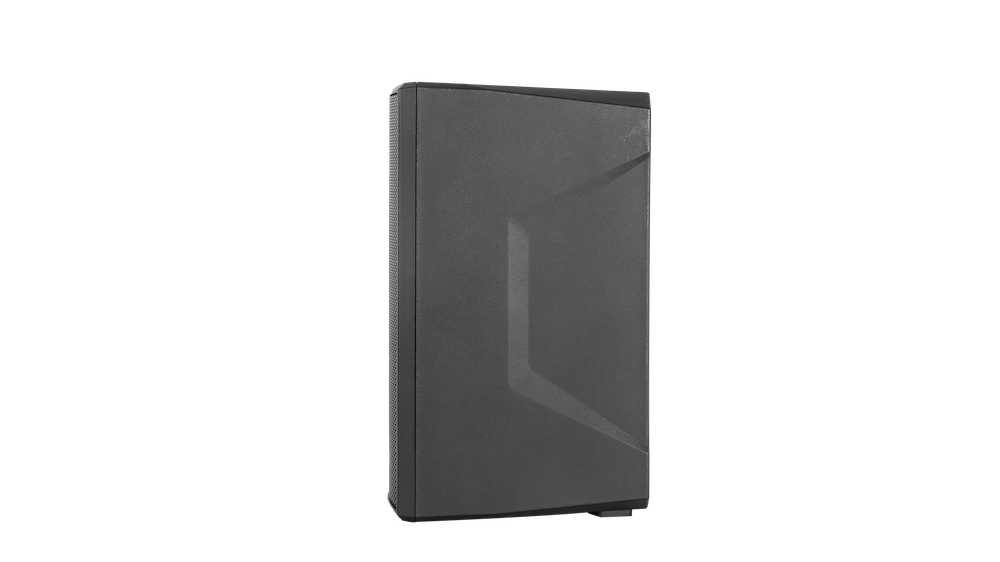

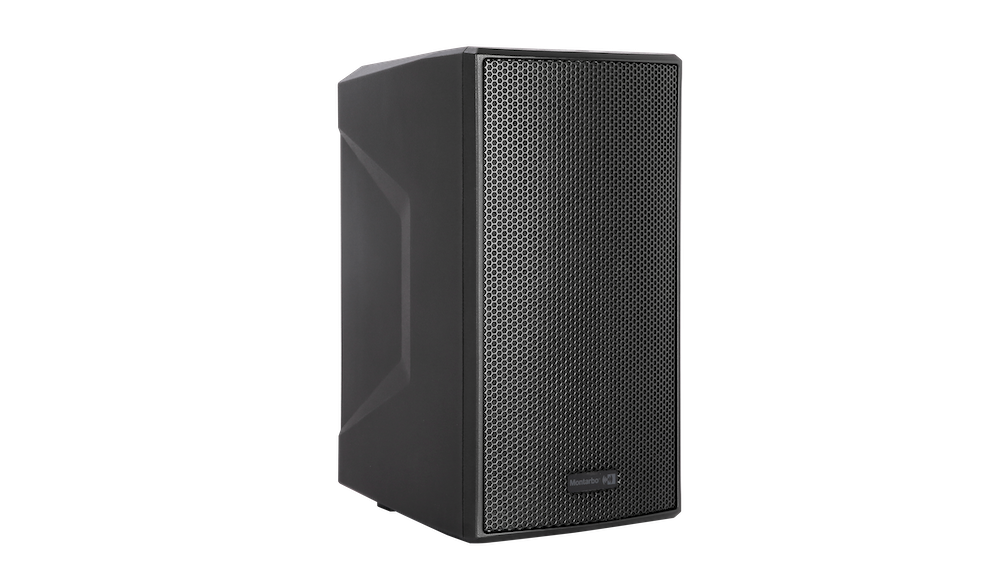

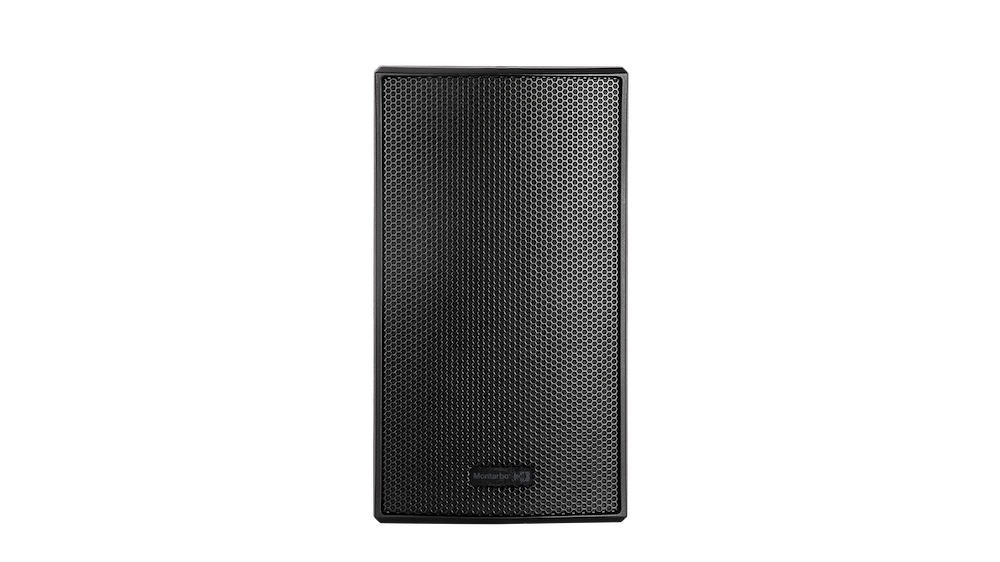

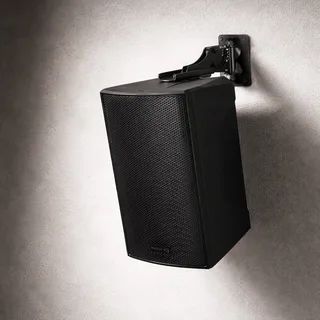

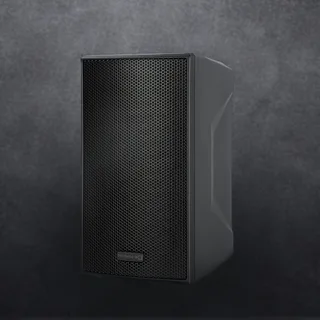

Montarbo MiniBO. Big Sound. Small format. MiniBO-5M is a versatile and portable 2-way active loudspeaker designed primarily for installation and professional audio applications, while remaining flexible for multimedia and small PA use. Equipped with a built-in 2-channel mixer and Bluetooth® stereo connectivity, it easily adapts to a variety of scenarios: from background music systems to compact portable setups. A dedicated DSP with four selectable presets optimizes performance according to placement and usage, ensuring clear and balanced sound in any environment. Despite its compact size and lightweight polypropylene enclosure, the delivers impressive output thanks to a 5.25" woofer and 1" compression driver powered by a 60W RMS Class-D amplifier (120W peak). Installation is quick and flexible: the enclosure features two integrated M10 fly points for fixed mounting and is compatible with optional Wall Bracket and Tilt Bracket accessories for wall or ceiling installation.
FEATURES
- 5,25'' Woofer
- 1'' compression driver horn loaded
- Full Range PSU
- TWS 5.4 Bluetooth
- 2 channels preamplifier
- Mic/Line selection
- Combo + XLR (mix out)
- 2x M10 screw
- Brackets available
- PP enclosure
APPLICATION
MiniBO is ideal for delivering clear, balanced sound in compact portable and installed audio systems. Its controlled frequency response and integrated amplification make it perfectly suited for background music, speech, presentations, and multimedia playback in small-to-medium environments.
SPECIFICATION SHEET
Acoustical Data
Speaker Type: 2-way active loudspeaker
Frequency Response [-10 dB]: 76 Hz - 20 kHz
Max SPL: 120 dB
HF: 1" exit (V.C.: 1")
LF: 5.25" (V.C.: 1.5")
Dispersion: 70° H x 50° V
Crossover Frequency: 2700 Hz
Amplifier
Amp Class: TBA
RMS Power: 60 W
Peak Power: 120 W
DSP
Advanced Functions: FIR filters 28/56 Bit
AD/DA Converter: 24Bit / 48kHz

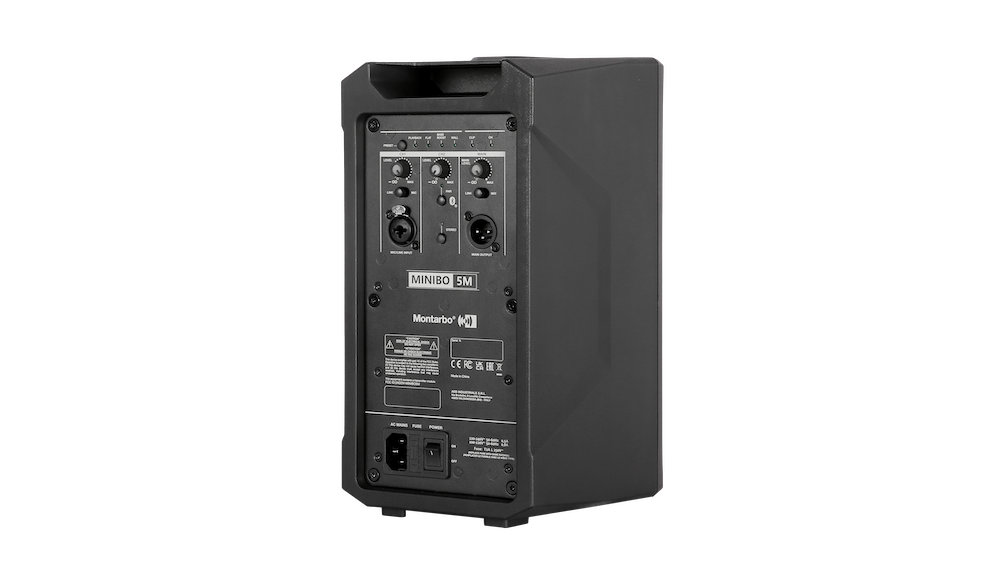

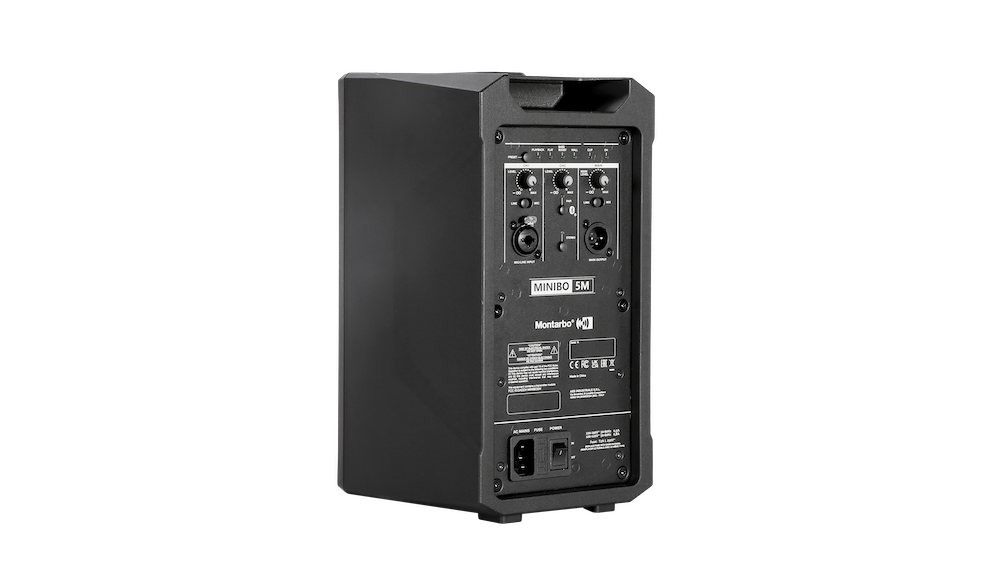

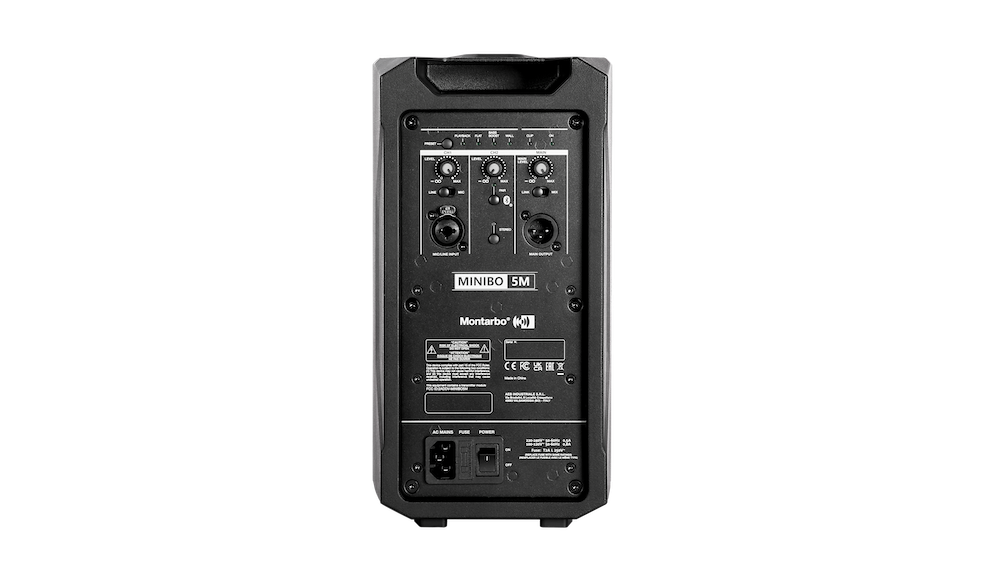

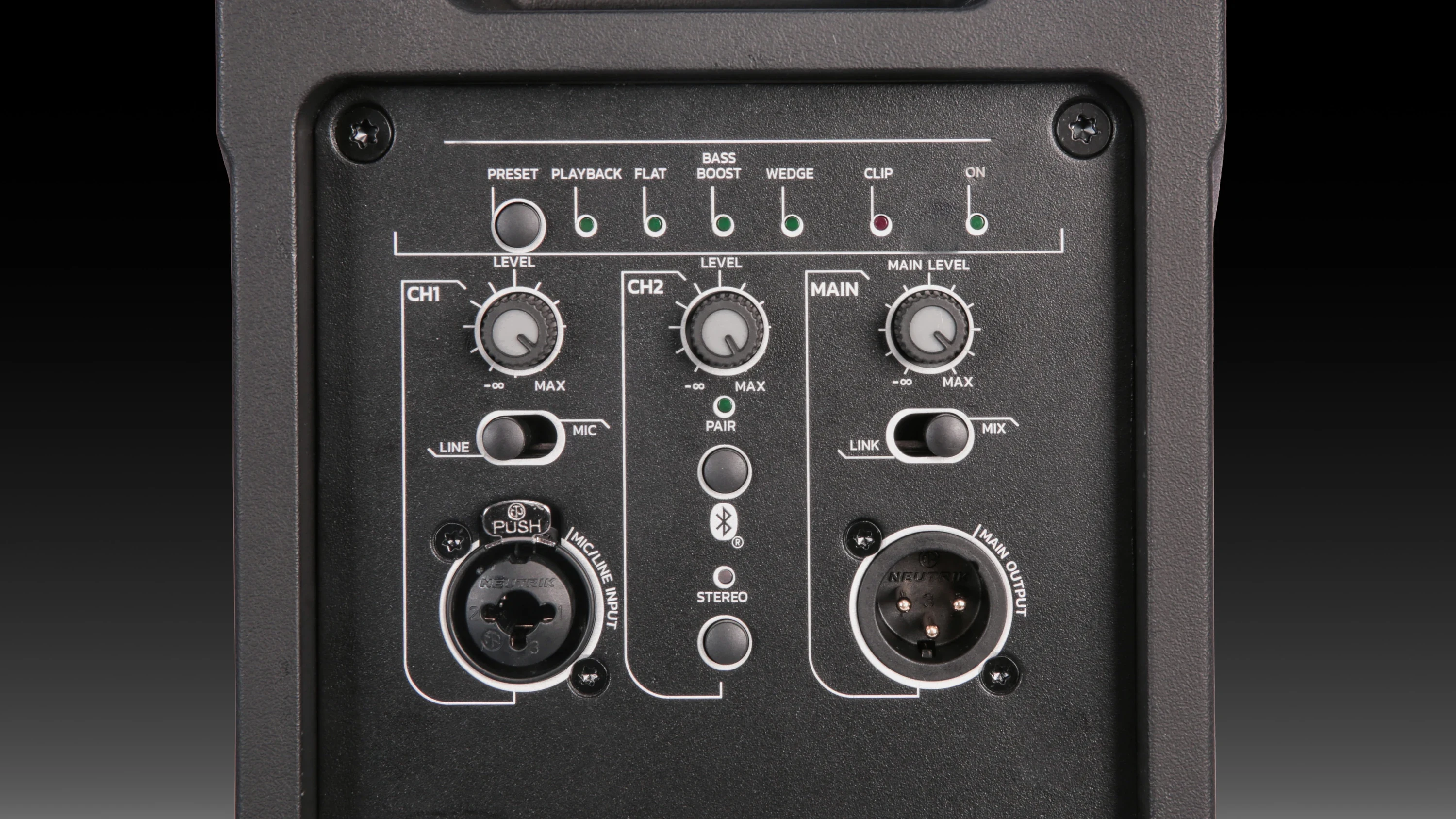

Controls: Preset button CH1-CH2-MAIN level CH1 LINE/MIC switch
Connectors
Dimensions: W x H x D 170 x 304 x 190 mm [6.69" x 11.97" x 7.48"]
Weight: 4.4 kg [9.70 lb]
Cabinet: Polypropilene
Montarbo MiniBO. Big Sound. Small format. MiniBO-5M is a versatile and portable 2-way active loudspeaker designed primarily for installation and professional audio applications, while remaining flexible for multimedia and small PA use. Equipped with a built-in 2-channel mixer and Bluetooth® stereo connectivity, it easily adapts to a variety of scenarios: from background music systems to compact portable setups. A dedicated DSP with four selectable presets optimizes performance according to placement and usage, ensuring clear and balanced sound in any environment. Despite its compact size and lightweight polypropylene enclosure, the delivers impressive output thanks to a 5.25" woofer and 1" compression driver powered by a 60W RMS Class-D amplifier (120W peak). Installation is quick and flexible: the enclosure features two integrated M10 fly points for fixed mounting and is compatible with optional Wall Bracket and Tilt Bracket accessories for wall or ceiling installation.
FEATURES
- 5,25'' Woofer
- 1'' compression driver horn loaded
- Full Range PSU
- TWS 5.4 Bluetooth
- 2 channels preamplifier
- Mic/Line selection
- Combo + XLR (mix out)
- 2x M10 screw
- Brackets available
- PP enclosure
APPLICATION
MiniBO is ideal for delivering clear, balanced sound in compact portable and installed audio systems. Its controlled frequency response and integrated amplification make it perfectly suited for background music, speech, presentations, and multimedia playback in small-to-medium environments.
SPECIFICATION SHEET
Acoustical Data
Speaker Type: 2-way active loudspeaker
Frequency Response [-10 dB]: 76 Hz - 20 kHz
Max SPL: 120 dB
HF: 1" exit (V.C.: 1")
LF: 5.25" (V.C.: 1.5")
Dispersion: 70° H x 50° V
Crossover Frequency: 2700 Hz
Amplifier
Amp Class: TBA
RMS Power: 60 W
Peak Power: 120 W
DSP
Advanced Functions: FIR filters 28/56 Bit
AD/DA Converter: 24Bit / 48kHz
Controls: Preset button CH1-CH2-MAIN level CH1 LINE/MIC switch
Connectors
Dimensions: W x H x D 170 x 304 x 190 mm [6.69" x 11.97" x 7.48"]
Weight: 4.4 kg [9.70 lb]
Cabinet: Polypropilene
