B110

OVERVIEW

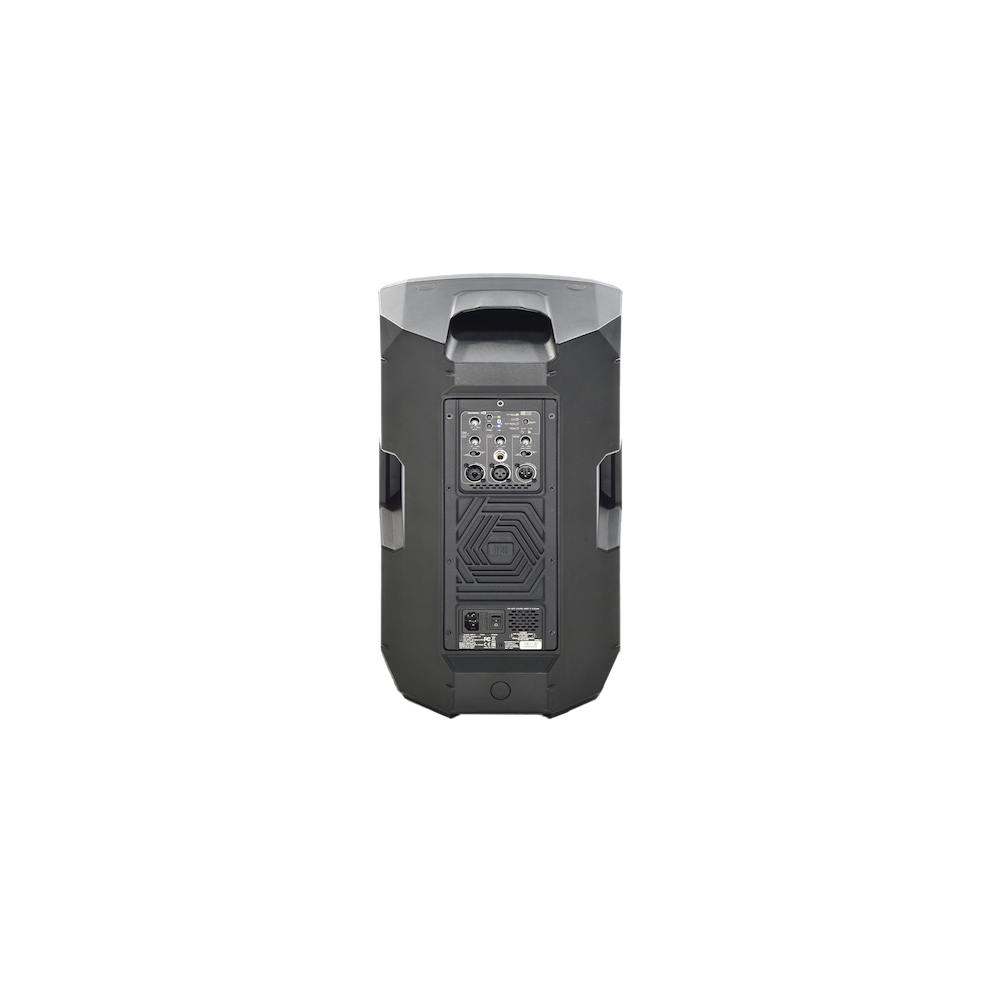

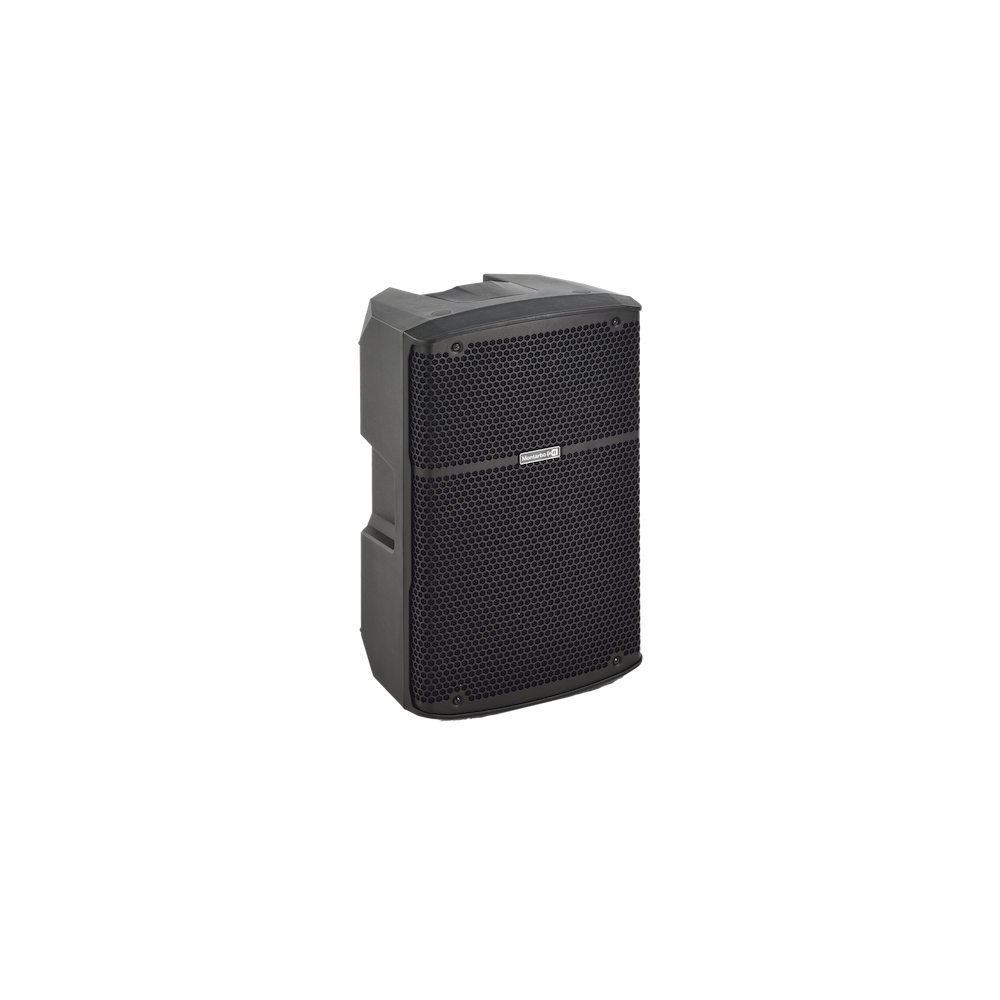

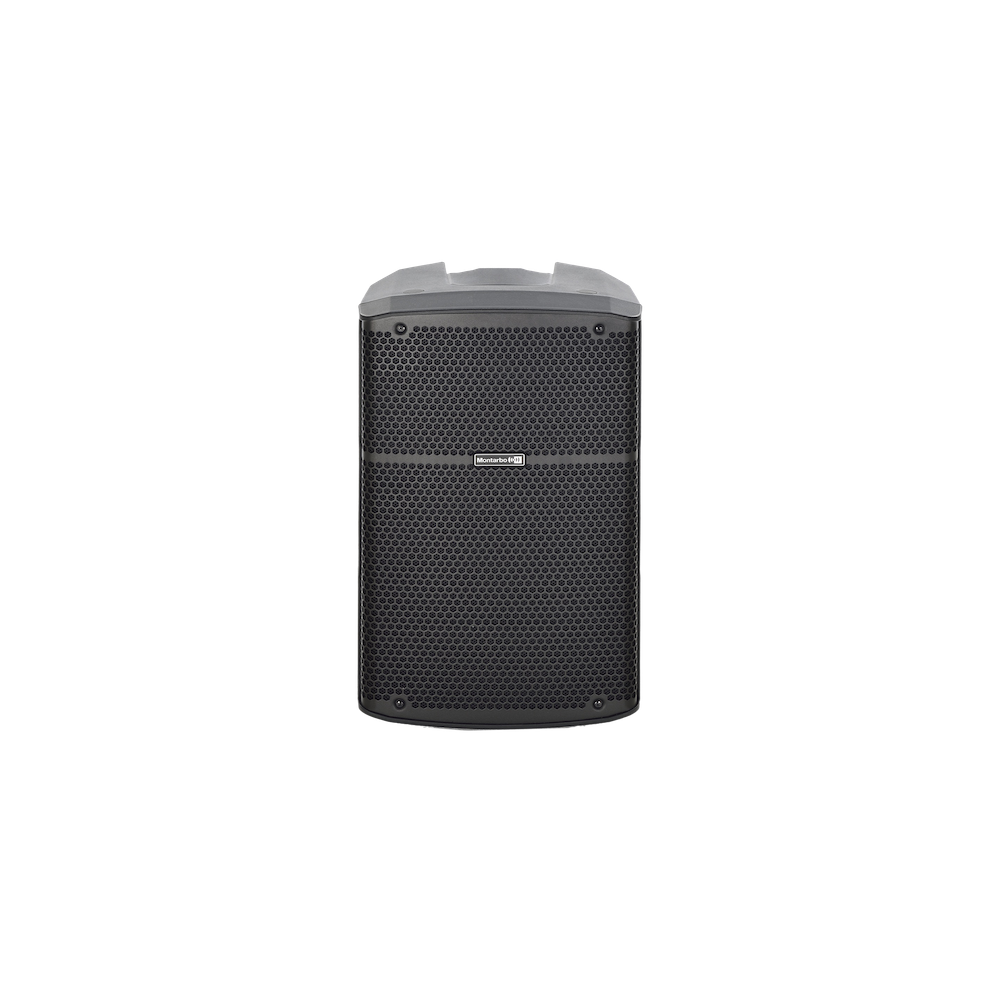

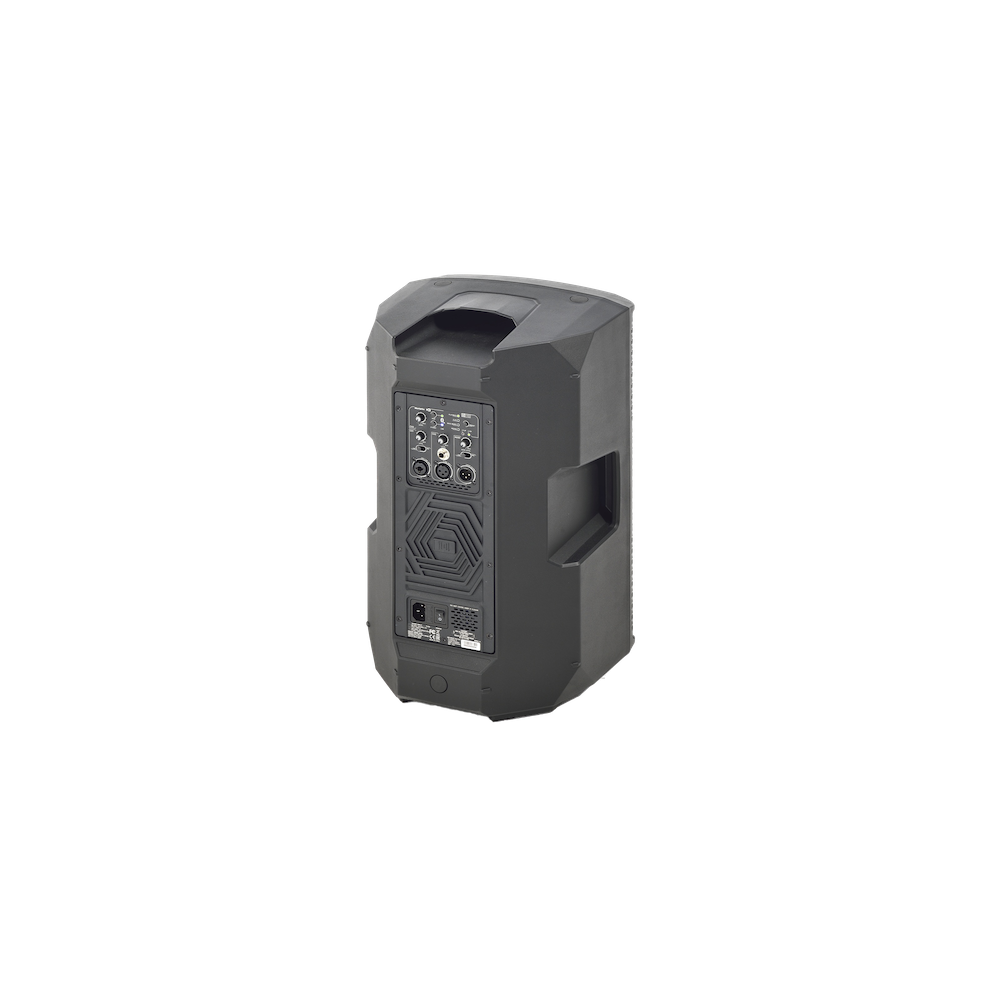

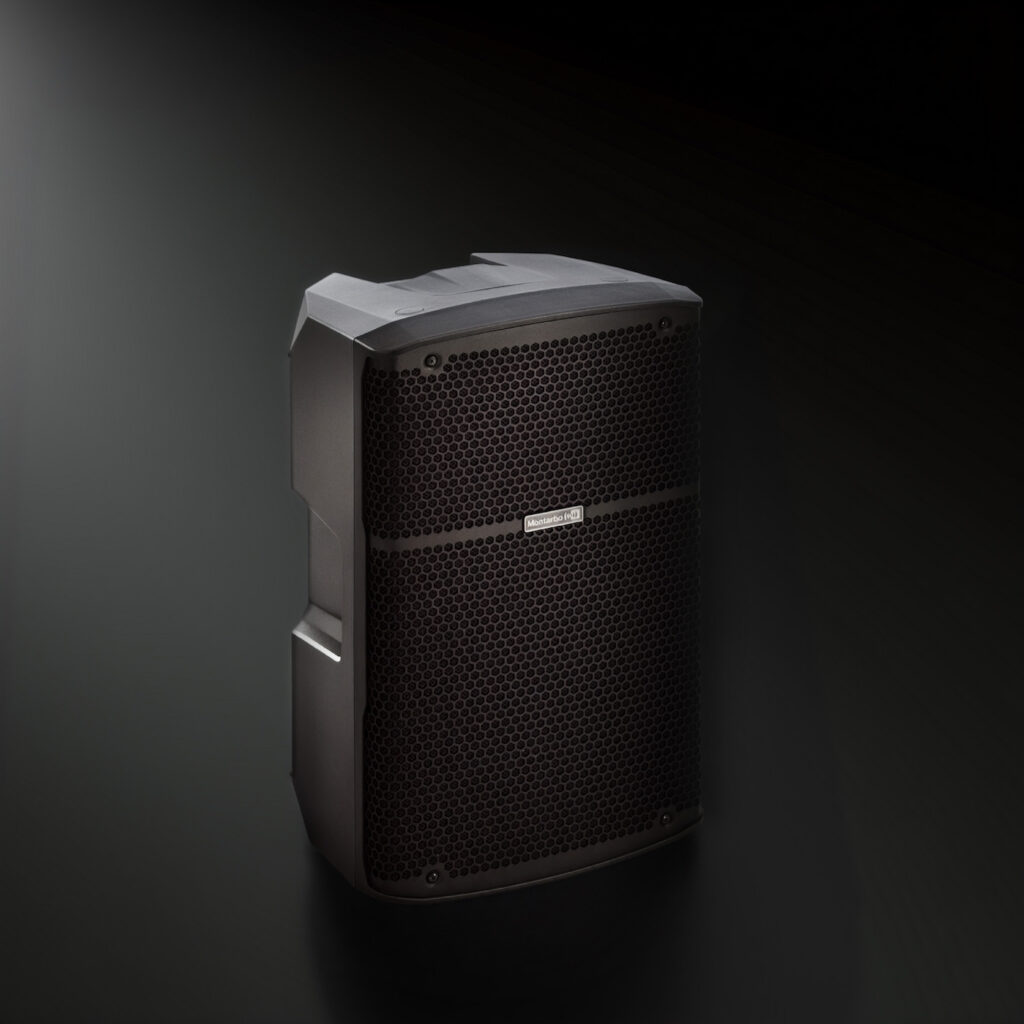

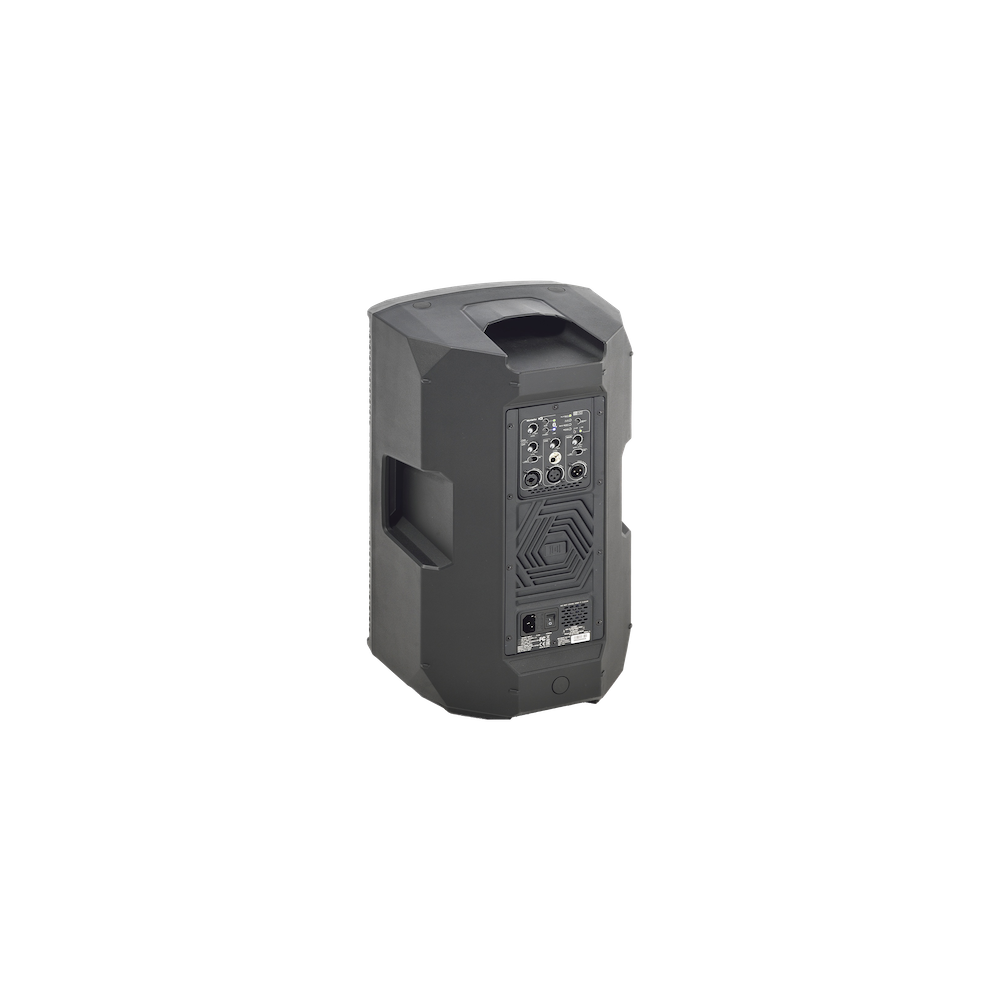

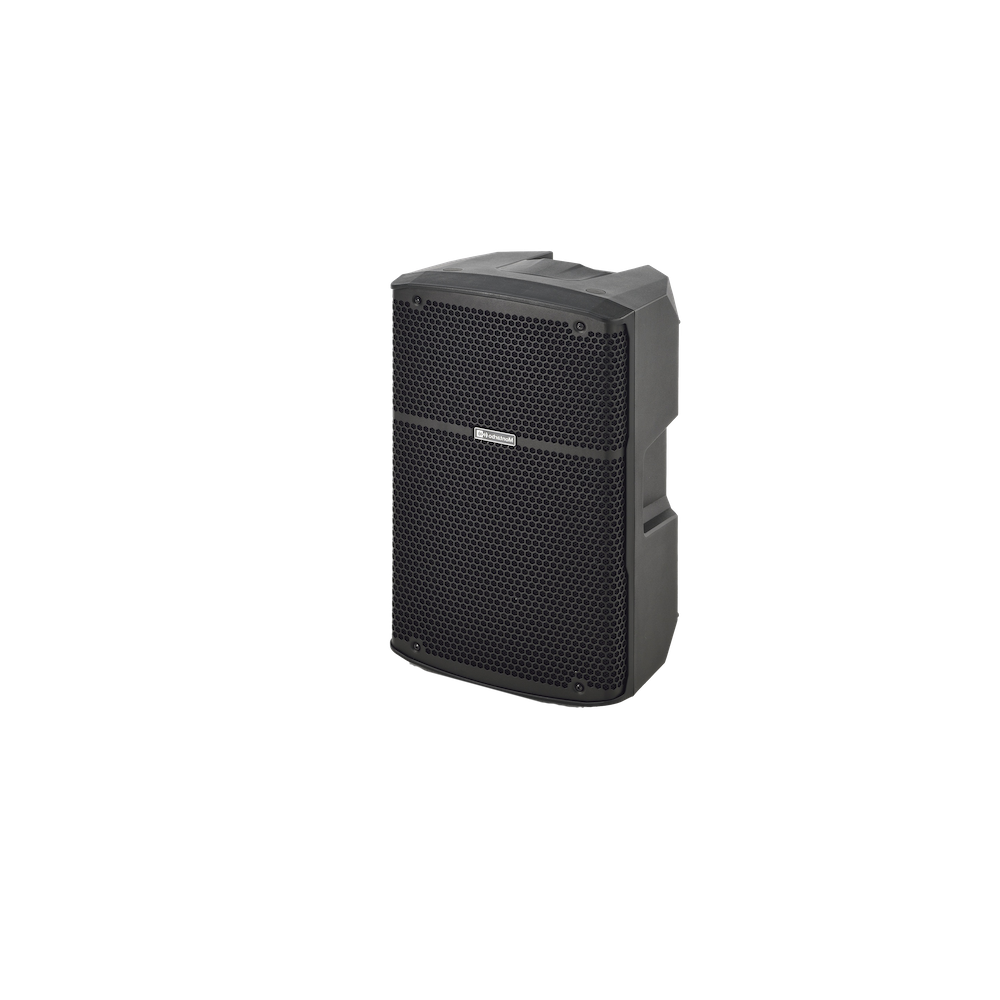

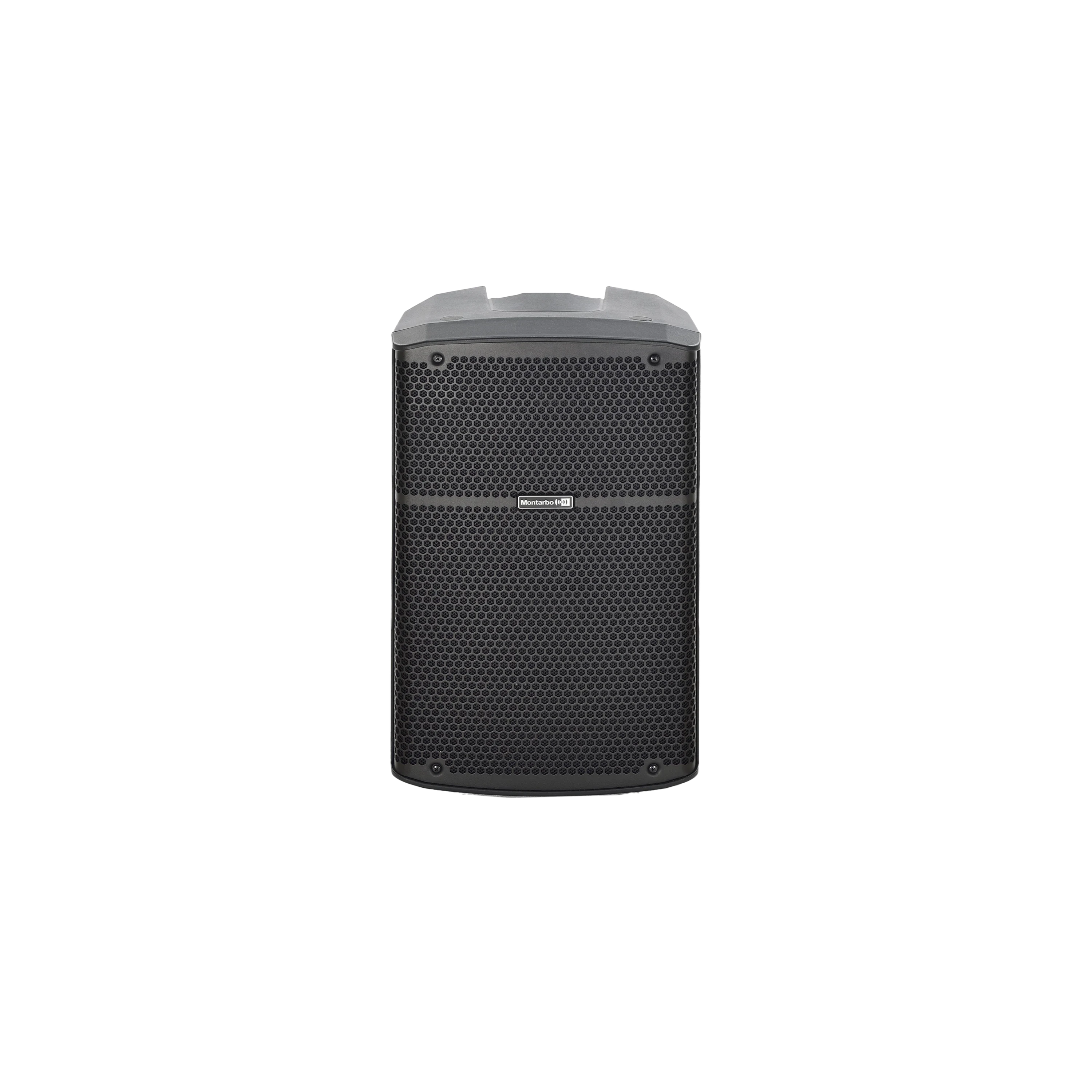

Montarbo B110: extended bandwidth, higher output B110 is a professional 2-way active loudspeaker engineered for small-to-medium installation environments where controlled coverage, output capability, and audio quality are priorities. Equipped with a 10" LF transducer with a 2" voice coil and a 1.35" HF driver, the system delivers a frequency response from 60 Hz to 20 kHz and achieves a maximum SPL of 126 dB. A 90° × 60° dispersion pattern ensures consistent coverage for short-throw reinforcement and distributed BGM systems. Amplification is based on a Class D + A/B hybrid architecture rated at 200 W RMS (400 W peak) and cooled via silent convection for reliable 24/7 operation. The DSP platform includes 28/56-bit processing with 24-bit / 48 kHz AD/DA conversion and FIR filtering for improved phase linearity and clarity. User controls include channel levels, main level, preset selection, input sensitivity, and MIX/LINK routing. Connectivity includes CH1 Combo input, CH2 XLR-F + 1/4" Jack input, 3.5 mm AUX mini-jack input, and XLR-M line output for daisy-chain configurations. Bluetooth® 5.0 provides stereo wireless audio streaming for multimedia and hospitality applications. Constructed from polypropylene, the cabinet measures 310 × 524.5 × 280 mm and weighs 11.3 kg, making B110 suitable for wall-mounted, flown, or pole-mounted installation while remaining a viable option for compact portable PA setups.

FEATURES
- Active 2-way loudspeaker optimized for small fixed installations
- FIR DSP processing for enhanced clarity and phase coherence
- Bluetooth® 5.0 stereo for background music and multimedia playback
- Flexible connectivity with Combo, XLR, 1/4", AUX, and XLR through output
- Lightweight polypropylene cabinet suitable for installation or portable use

APPLICATION

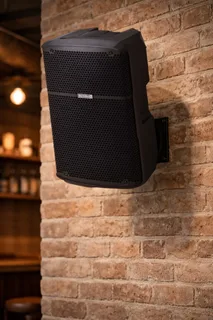

Montarbo B110 is particularly well suited to small and medium installation environments where increased headroom, extended bandwidth, and controlled coverage are required. It integrates naturally into restaurants, cafés, retail spaces, meeting and training rooms, classrooms, and hospitality venues, as well as institutional and worship environments where speech intelligibility and musical performance must coexist in a compact format. With managed dispersion and onboard DSP, B110 works effectively in distributed audio systems for background music as well as in short-throw clusters for foreground reinforcement. And while optimized for installation, its modern connectivity and portable form factor also make it a practical solution for small PA applications such as presentations, rehearsals, and mobile performances.

SPECIFICATION SHEET
Acoustical Data
Speaker Type: 2-way Active bass reflex
Frequency Response [-10 dB]: 60 Hz - 20 kHz
Max SPL: 126 dB
HF: 1.35″ driver
LF: 10″ - 2″ V.C.
Dispersion: 90° H x 60° V
Crossover Frequency: 1.8 kHz
Amplifier
Amp Class: D + A/B
RMS Power: 200 W
Peak Power: 400 W
Cooling: Convection
DSP
Advanced Functions: FIR filters 28/56 Bit
AD/DA Converter: 24Bit / 48kHz
Controls: Ch. levels MAIN level PRESET button Channel sens. LINK/MIX selection
Connectors
Dimensions: W x H x D 310 x 524.5 x 280 mm [12.2" x 20.6" x 11"]
Weight: 11.3 kg 24.92 lb
Cabinet: Polypropilene
