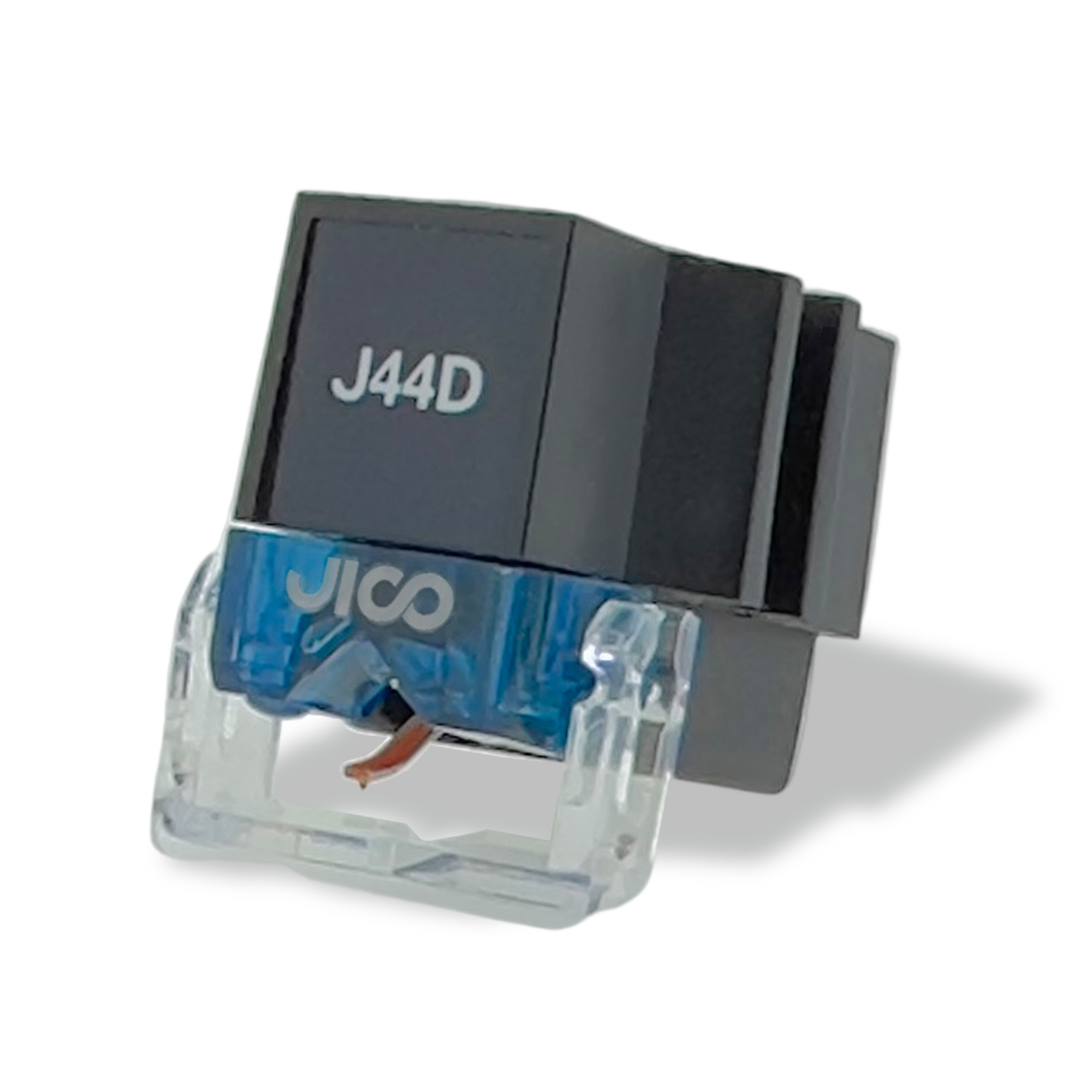

JICO J44D DJ IMPROVED SD Cartridge

The Jico J44D cartridge is designed to reproduce a broad, smooth sound with specifications comparable to the Shure M44G cartridge. Made in Japan, it comes with a N-44G DJ IMP SD stylus and is ideal for mixing and sampling.

Specifications

• Replacement Needles: N-44G DJ IMP SD
• Tip Color: Blue
• Frequency Range: 20 Hz – 20 kHz
• Output voltage 8 mV (1kHz, 5cm/sec.)
• Recommended Load : 47 KŒ©
• Direct Current Resistance: 800Œ©
• Compliance: L8.5 / V8.5
• Stereo Channel Balance: 1.5 or below
• Channel Separation (at 1kHz): 20db
• Cartridge Type: Moving Magnet (MM)
• Cantilever: JICO Type S
• Tip: Synthetic Diamond Spherical
• Tip Size: 0.7mil
• Tracking Force Range: 3.5~4.5g
• Weight: 5.6g
• Uses: Mixing and Sampling
